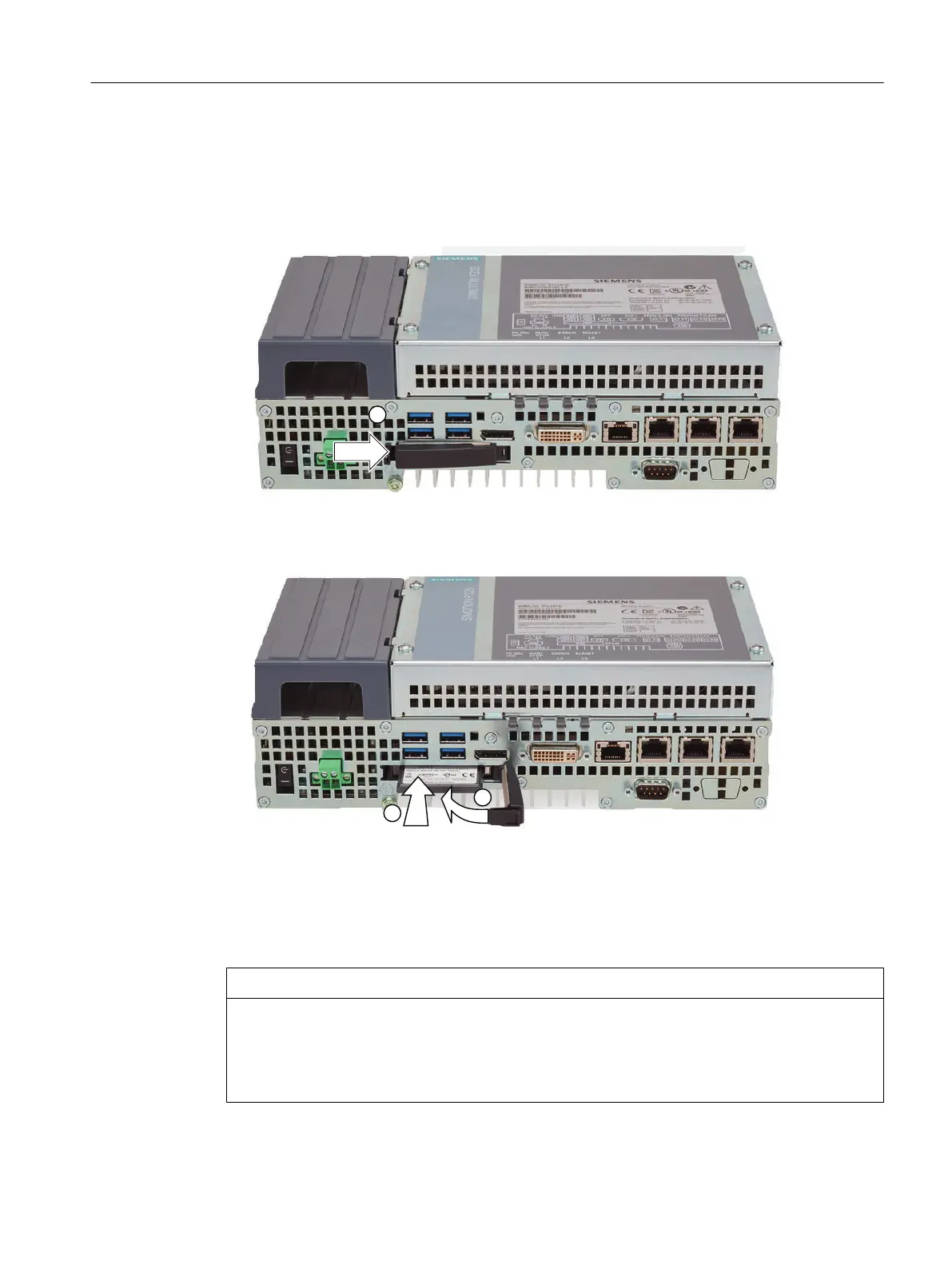

Withdrawing the CFast card
To withdraw the CFast card, proceed as follows:
1. Release the lock of the cover. Push against the cover in the direction indicated.
Open the cover completely.

2. Remove the CFast card from the memory card slot by pushing it in until it is ejected by
about 5 mm (ball-point pen mechanism).
Then withdraw the CFast card from the memory card slot.


3. After removing the CFast card, close and lock the cover.
Inserting the CFast card
NOTICE
Inserting the CFast card
If you insert a CFast card into a built-in SIMOTION P320-4 in a system, observe the safety
regulations for working with electrical systems.
Insert the CFast card carefully into the slot, and without applying excess force.
Mounting
5.5 Withdrawing/inserting the CFast card
SIMOTION P320-4 E / P320-4 S
Commissioning and Hardware Installation Manual, 11/2016 85

Siemens SIMOTION Series Specifications

General

Interfaces	PROFIBUS, PROFINET, Ethernet, USB
Programming Languages	LAD, FBD
Safety	Integrated safety functions
Typical Applications	Machine automation, robotics, packaging, printing
Relative Humidity	5% to 95% (non-condensing)
Protection Class	IP20
Certifications	CE, UL, cUL
