30
)6$)6&
30
)6')6)

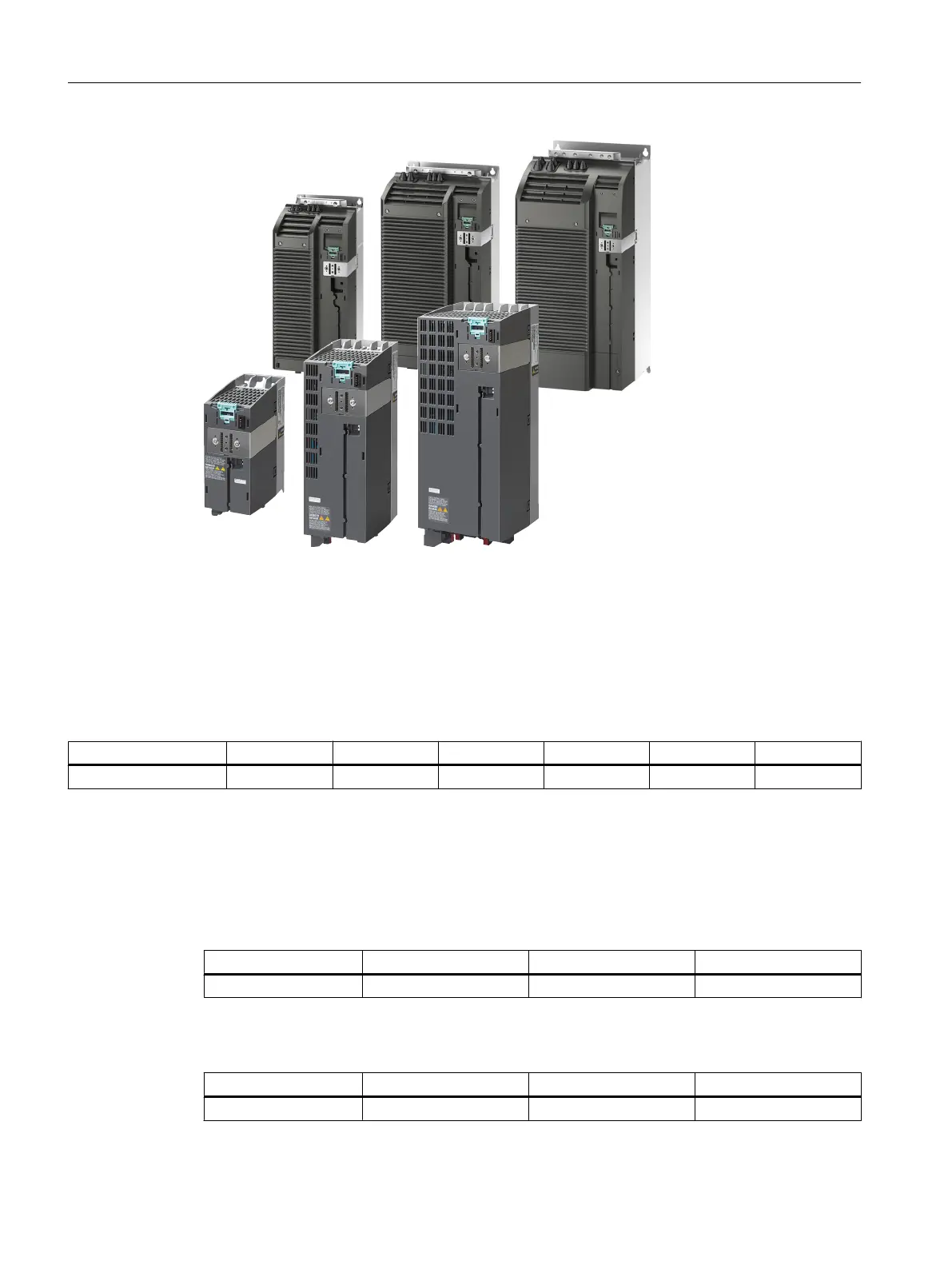

Figure 3-2 Examples of Power Modules with IP20 degree of protection
PM230, 3-phase 400 VAC in IP20 degree of protection for pump and fan applications
The PM230 Power Module in IP20 degree of protection is available without a filter or with an
integrated class A line filter.
Table 3-3 3-phase 380 VAC … 480 VAC, article numbers: 6SL3210-1NE…
Frame size FSA FSB FSC FSD FSE FSF
Power (kW) 0.37 … 3 4 … 7.5 11 … 18.5 22 … 37 45 … 55 75 … 90
PM240P-2 for pump and fan applications
The PM240P-2 Power Module is available without a filter or with an integrated class A line
filter.
Table 3-4 3-phase 380 VAC … 480 VAC, article number 6SL3210-1RE…
Frame size FSD FSE FSF
Power (kW) 22 … 37 45 … 55 75 … 132
Table 3-5 3-phase 500 VAC … 690 VAC, article number 6SL3210-1RH…
Frame size FSD FSE FSE
Power (kW) 11 … 37 45 … 55 75 … 132
Description
3.4 Power Module
Converter with the CU230P-2 Control Units
36 Operating Instructions, 09/2017, FW V4.7 SP9, A5E34257946B AE
