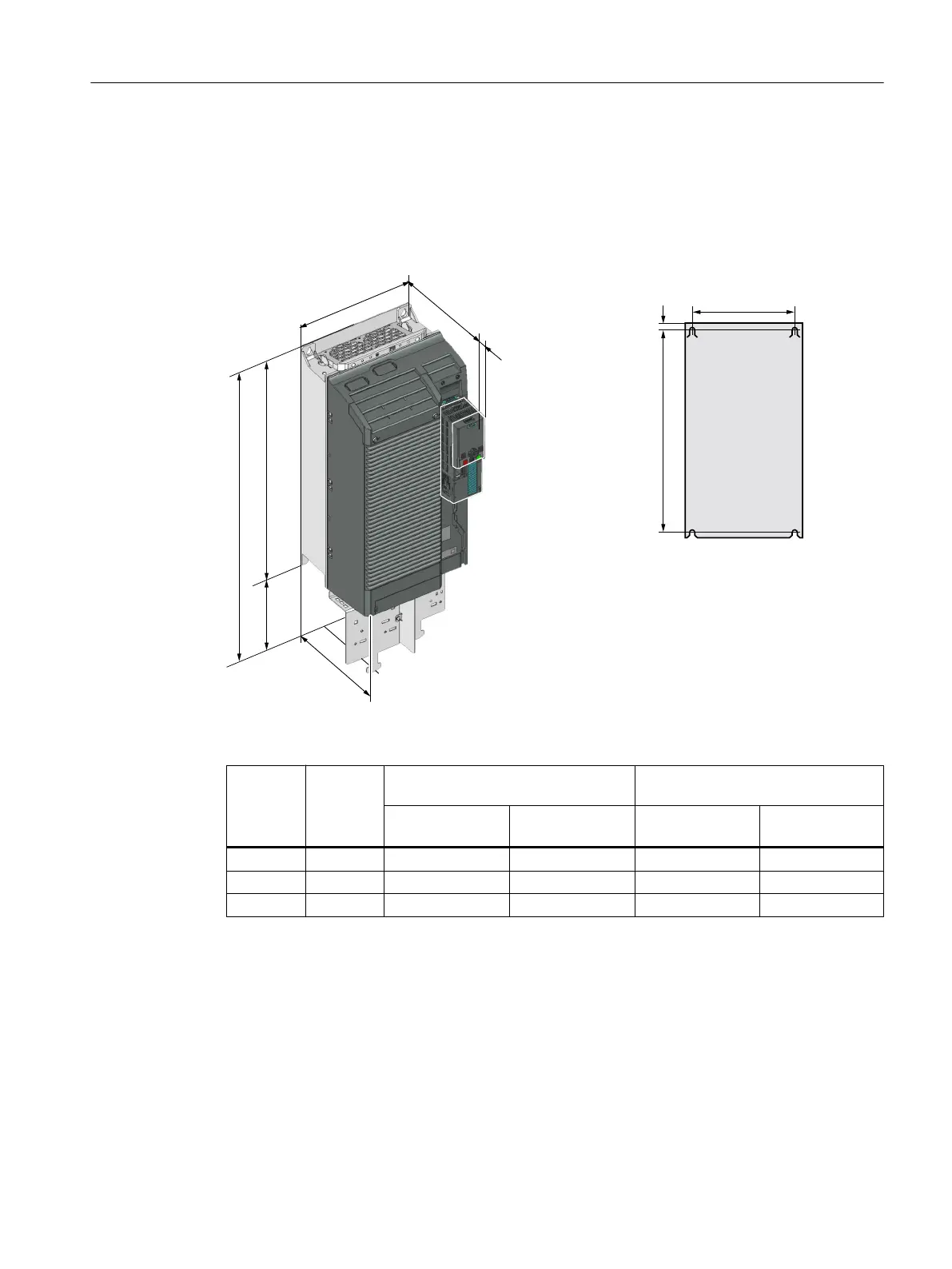

4.3.4 Dimension drawings, drilling dimensions for PM240P-2 Power Modules, IP20
The following dimension drawings and drilling patterns are not to scale.
Frame sizes FSD … FSF
+HLJKWZLWKRXWVKLHOGSODWH
+HLJKWZLWKVKLHOGSODWH
'HSWK
6KLHOG
SODWH
:LGWK
'HSWKZLWK&8
23
K
E
F
Table 4-9 Dimensions depend on the operator panel (OP) that is inserted
1)
Frame
size
Width
[mm]
Height [mm] Mounting depth in the cabinet with
Control Unit (CU) [mm]
2)
without shield
plate
with shield plate without OP with OP
1)
FSD 275 517 650 253 264
FSE 354 615 722 253 264
FSF 384 754 1021 373 384
1)
BOP-2, IOP-2 or blanking cover
2)
Power Module depth without Control Unit: FSD, FSE 237 mm, FSF 357 mm
