Startdrive commissioning tool
3.2 User interface - parameterization
Getting Started, 12/2018, 6SL3097-5AG30-0BP0
35
3.2.3
Parameterization editor
The parameterizing editor comprises 2 tabs, under which you can parameterize the drive:
● In the function view, you parameterize the drive using a graphic user interface. The
individual screen forms are based on the function diagrams – and include the parameters
required.
● All the drive parameters are listed in the parameter view, so that the drive can be
completely parameterized there.

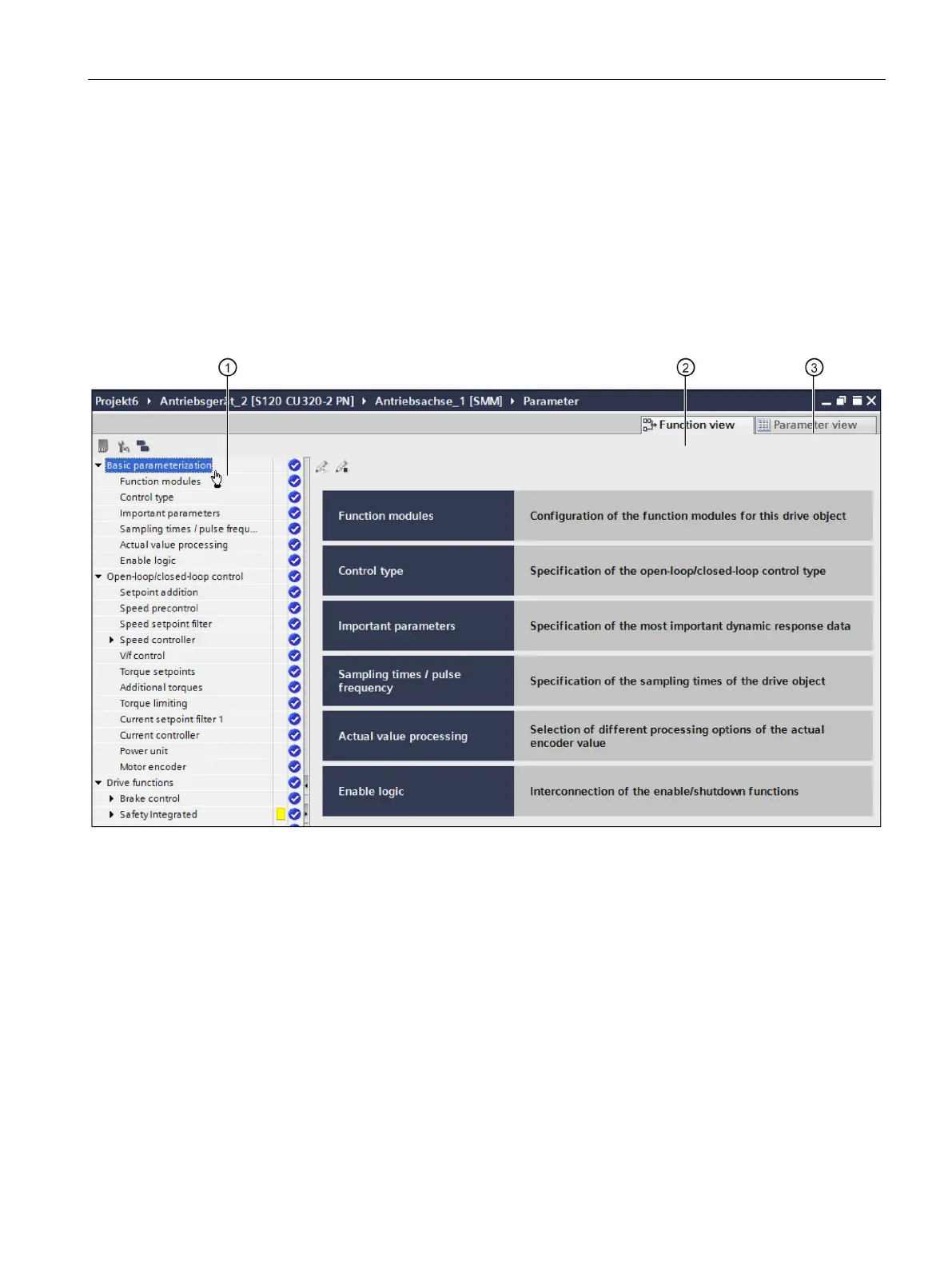

The following figure shows the structure of the parameterizing editor:
①
Secondary navigation (for the selected tab, you navigate here through the individual thematically sorted topics.)
②
Function view tab (Here, you parameterize the drive using a graphic user interface. Various drive-specific screen
forms are displayed, which simplify parameterization.)
③
Parameter view tab (Here, you directly parameterize the drive using the parameters from the parameter list.)
Figure 3-5 Parameterizing editor
3.2.4
Function view
You parameterize the drive using a graphical user interface in the "Function view". The individual screen forms are based on
the function diagrams – and include the parameters required.
