Startdrive commissioning tool
3.3 User interface - Control panel
42 Getting Started, 12/2018, 6SL3097-5AG30-0BP0
User interface - Control panel
The drive control panel (see Chapter "Using the control panel (Page 165)") is used to control
and monitor individual drives. You traverse drives with the control panel by specifying values.
Depending on the operating mode, these are, for example, speed setpoints.

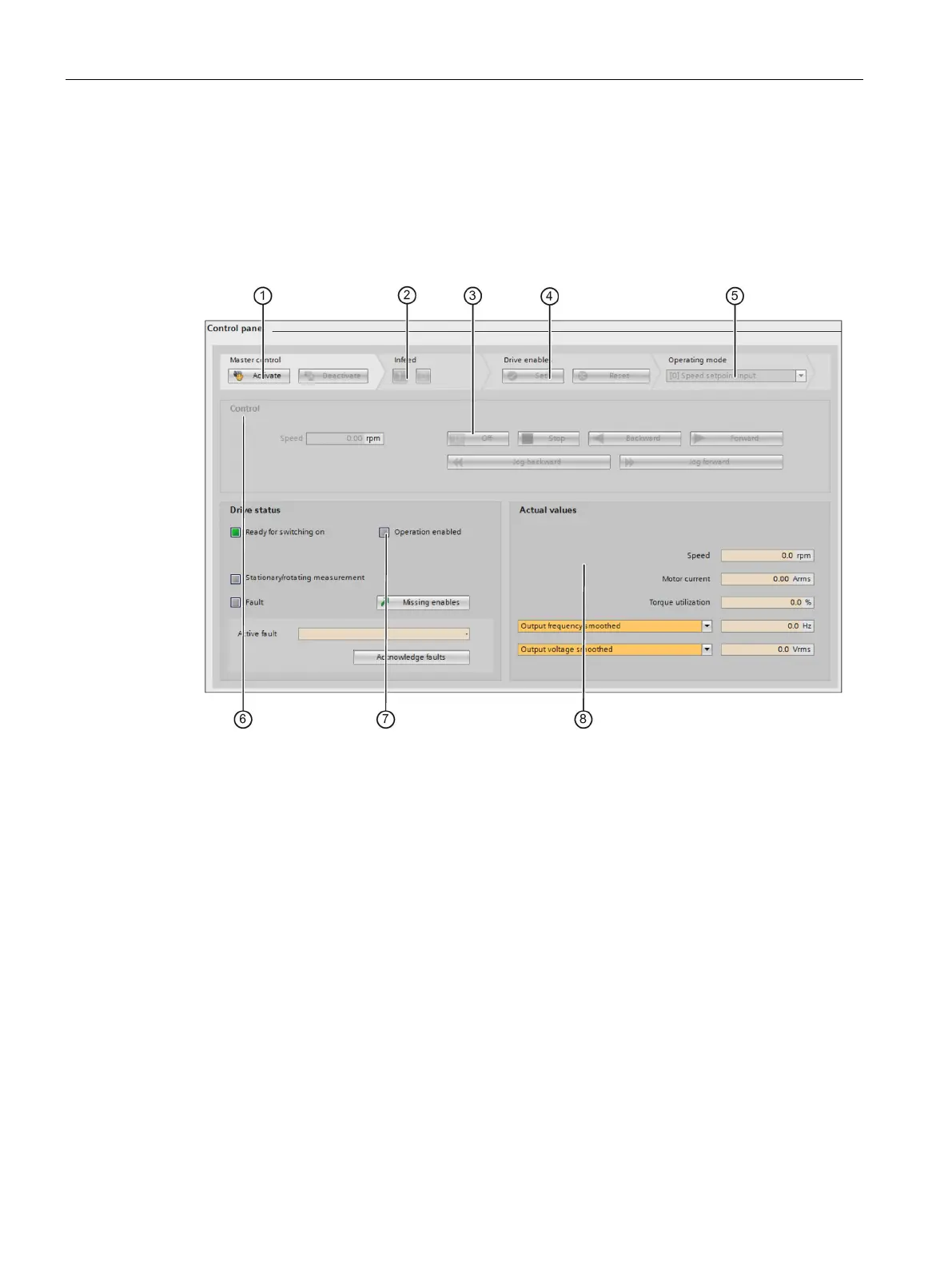

The following figure shows the various components of the control panel:
Activate/deactivate master control
Figure 3-10 Control panel
