Startdrive commissioning tool
3.2 User interface - parameterization
Getting Started, 12/2018, 6SL3097-5AG30-0BP0
41
Device configuration detection
The results of a detection run are listed in the dialog "Detection of the device configuration".
The components are assigned as follows:
● Components are assigned to drive objects.
● Drive objects are assigned to drive units.
All components, which could not be assigned to a module, are placed in the "Non-assignable
components" folder (see Chapter "Deriving the hardware device configuration (Page 108)").
The dialog has the following structure:
Creation information (optional)
The components assigned to the modules or main components
Non-assignable components
Activates the parallel connection view. In the parallel connection view, only the parallel connec-
tion-capable components are displayed.
Drive object type of the motor controls
• Drive object type
• Component type
• Identification via LED. Is controlled on the Control Unit via parameters p9210 and p9211.
• DRIVE-CLiQ connection of the component
• Article number of the component

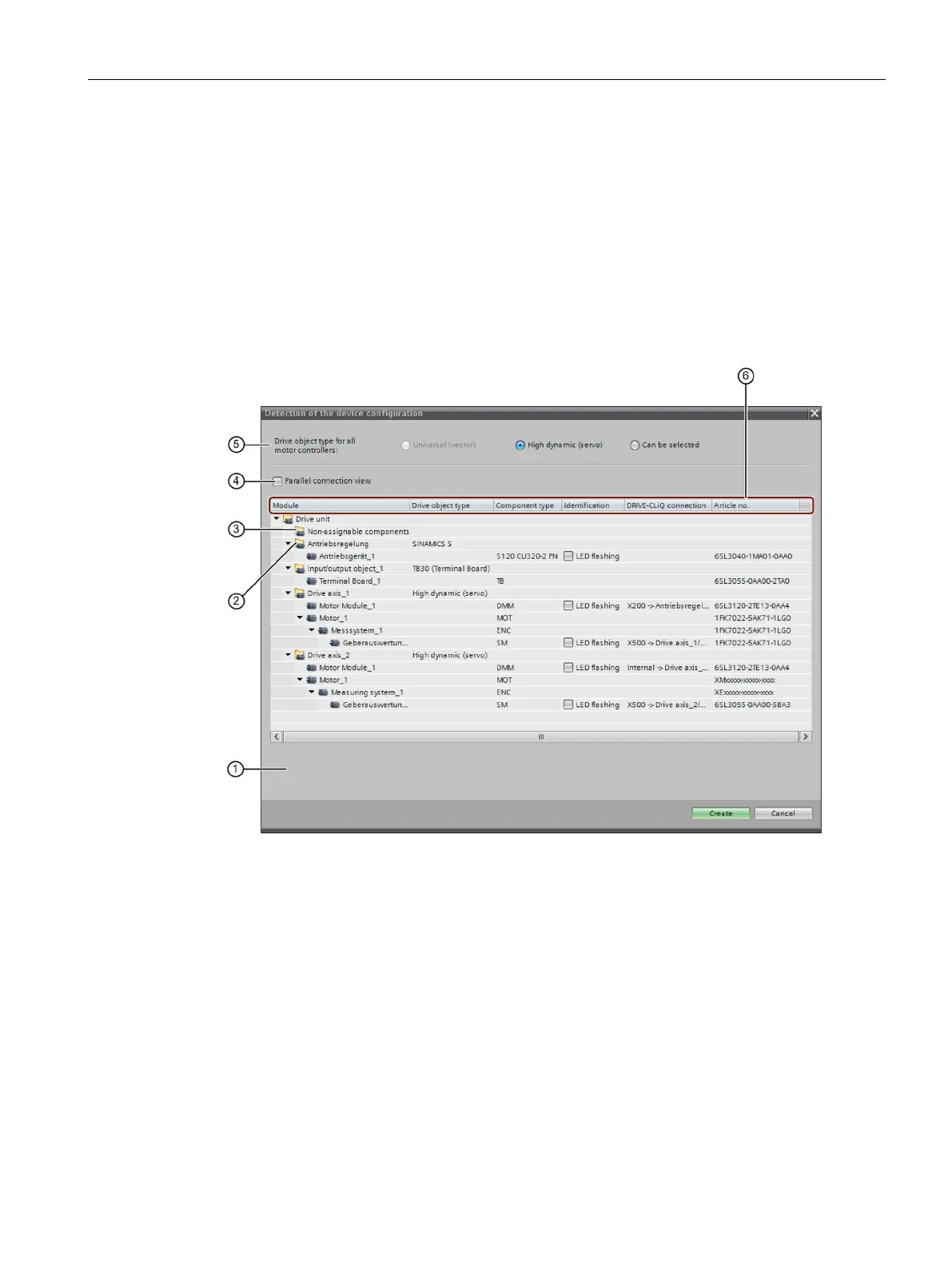

Figure 3-9 Device configuration detection
