4.7 Loading project data from a drive unit
Getting Started, 12/2018, 6SL3097-5AG30-0BP0
61
4.7
Loading project data from a drive unit
Preconditions
● A project is open.
● The hardware configuration and software to be loaded must be compatible with the
Startdrive. If the data on the device was created with a previous program version or with
a different configuration software, please make sure they are compatible.
Uploading project data of a device
To load the project data from a drive unit into your Startdrive project, proceed as follows:
1. Call the shortcut menu "Load from device (software)" or click on the icon
(Load from
device) in the toolbar.
The "Upload preview" dialog box opens. Startdrive checks whether all prerequisites for
loading have been met. In the event of any obstructions, these are displayed as
messages in the dialog.

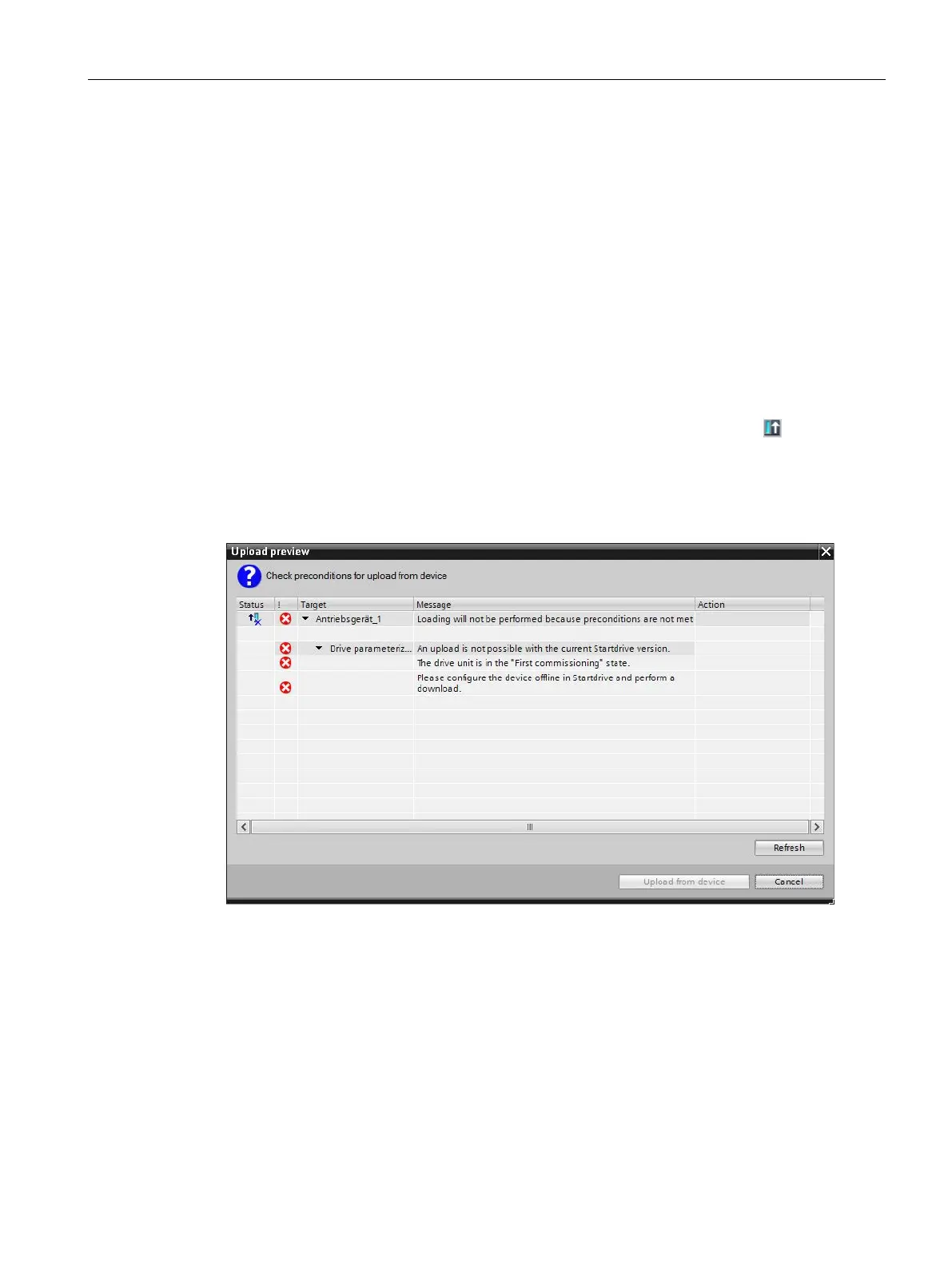

Figure 4-6 Example: Upload from device
2. Check the alarms in the "Upload preview" dialog, and select the necessary actions in the
"Action" column.
As soon as uploading becomes possible, the "Upload from device" button is enabled.
3. Click the "Upload from device" button.
The loading operation is performed.
Result
The project data has been loaded from the drive unit into your Startdrive project on the PC.
