Commissioning
5.4 Creating a project offline in Startdrive
Getting Started, 12/2018, 6SL3097-5AG30-0BP0
81
1. Open the "Power Modules" item in the hardware catalog.
The following Power Modules are available for selection:
– AC Power Module
2. Select the required, unspecified Power Module in the device overview.

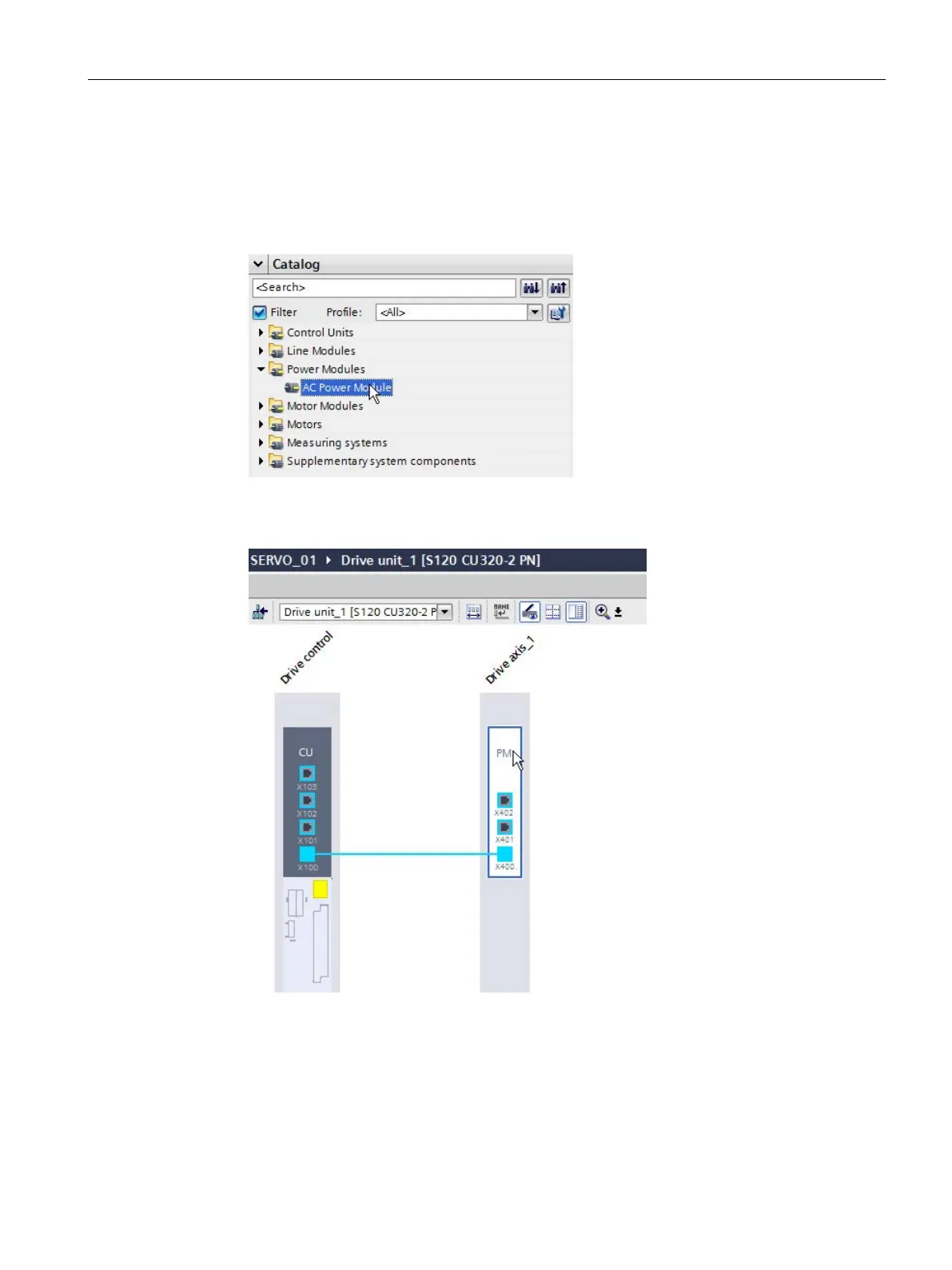

Figure 5-15 Power Module selected
3. Drag the unspecified Power Module into the device view.
Figure 5-16 Power Module inserted
The DRIVE-CLiQ connection is automatically established.
4. In the device view, click the Power Module. Make sure that you click on the white area of
the Power Module.
5. Open the Inspector window if it has still not been opened or displayed.
