6.3 Block diagram with connection suggestion
SINAMICS DCM DC Converter
Operating Instructions, 12/2018, A5E34763375A
115

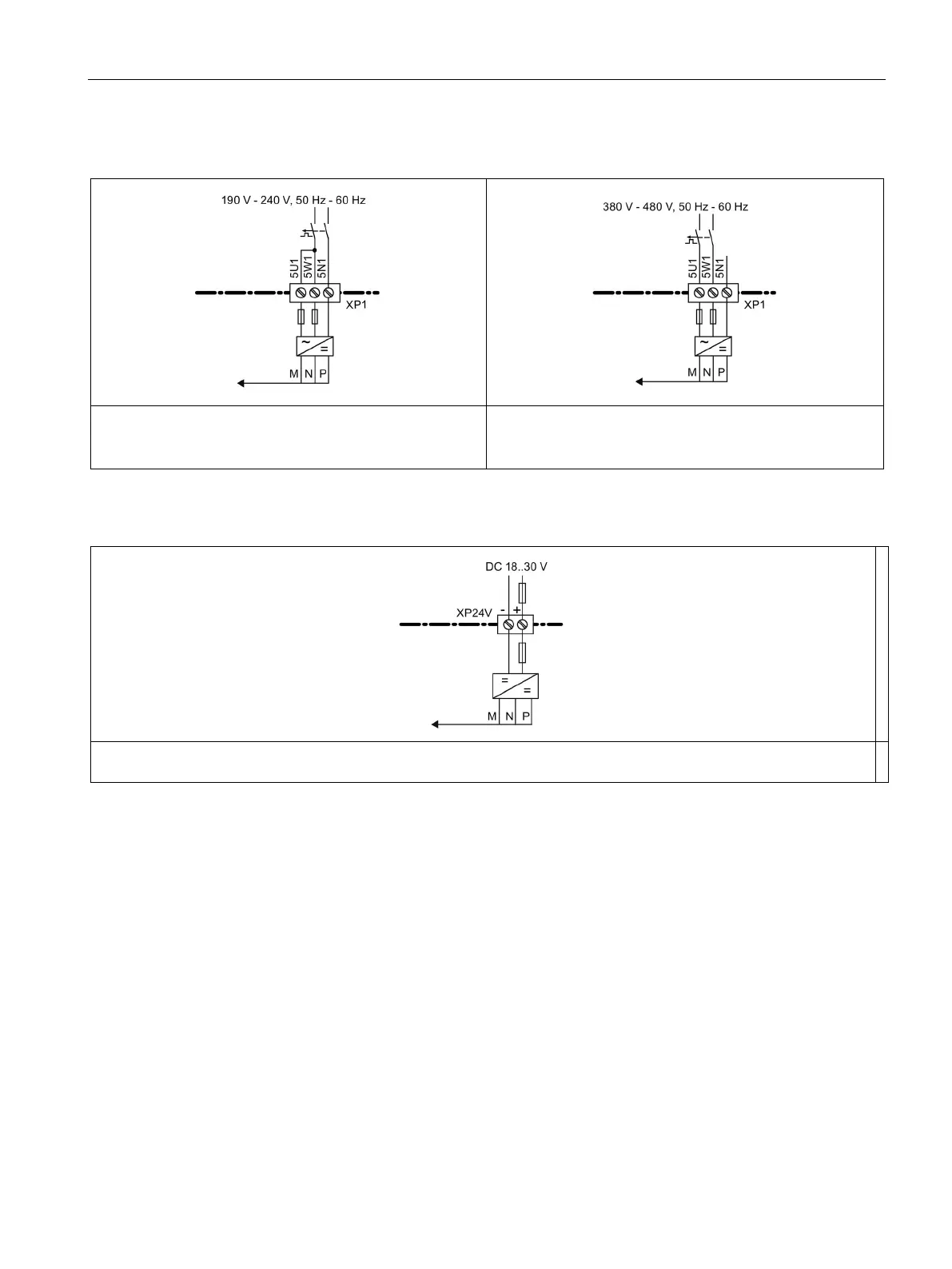

Connecting the electronic power supply
1-ph. AC electronic power supply
Devices with "Power interface with AC electronic power
supply"
2-ph. AC electronic power supply
Devices with "Power interface with AC electronic power
supply"
With option L05
Electronic power supply for connection to DC devices
with "Power interface with DC electronic power supply"
