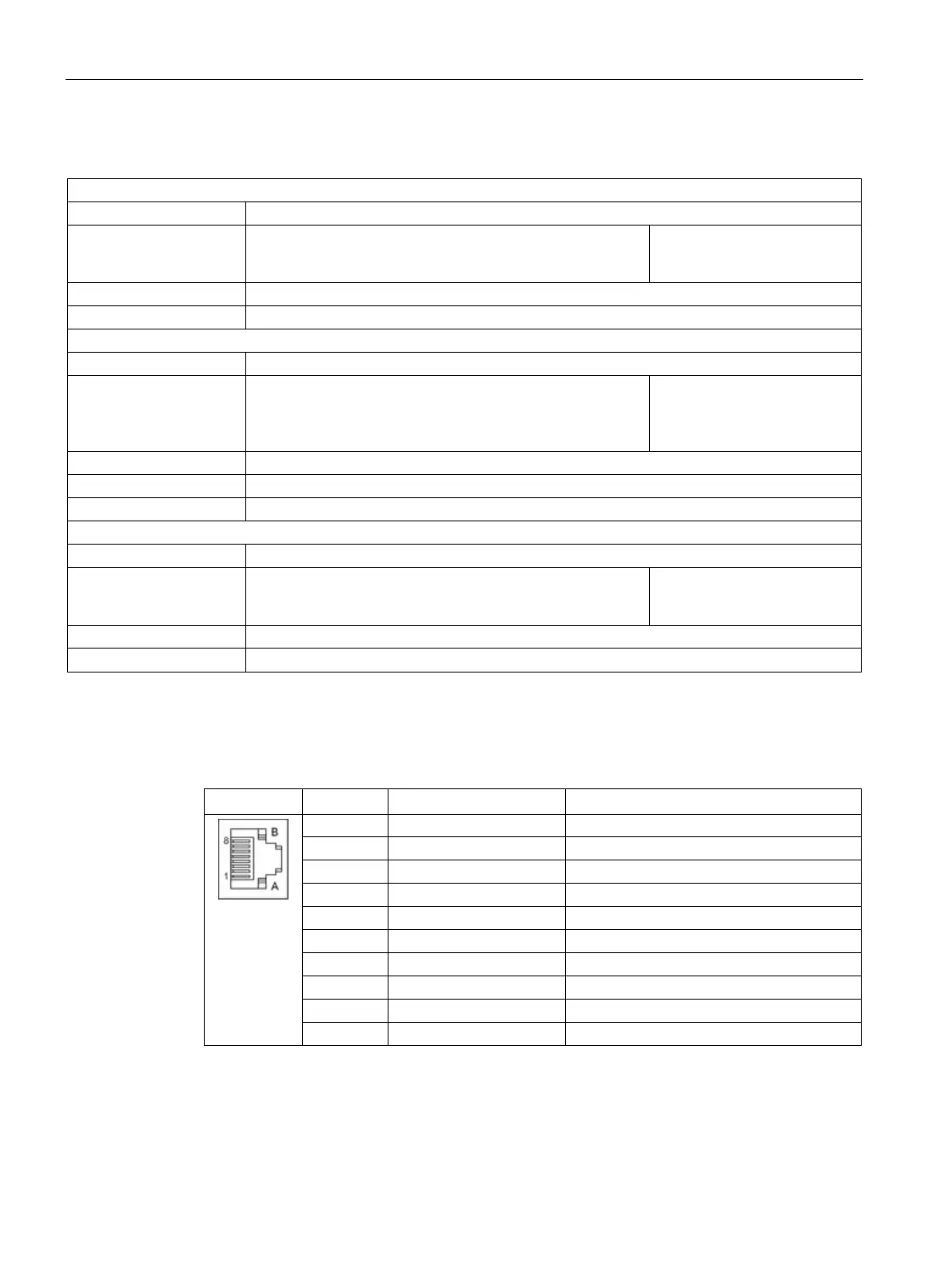

Additional system components
7.5 Terminal Module TM31
SINAMICS DCM DC Converter
240 Operating Instructions, 12/2018, A5E34763375A
Terminal type
X520, X521, X522, X530, X540, X541
Terminal type
Screw terminal
Connectable conductor
cross-section
Rigid, flexible
With end sleeve, without plastic sleeve
With end sleeve, with plastic sleeve
0.08 mm
2
... 1.5 mm
2
0.25 mm
2
... 1.5 mm
2
0.25 mm
2
... 0.5 mm
2
Stripped length
7 mm
Tool 0.4 × 2.0 mm screwdriver
X524
Terminal type
Screw terminal
Connectable conductor
cross-section
Rigid, flexible
With end sleeve, without plastic sleeve
With end sleeve, with plastic sleeve
AWG / kcmil
0.2 mm
2
... 2.5 mm
2
0.2 mm
2
... 2.5 mm
2
0.2 mm
2
... 1.5 mm
2
22 ... 12
Stripped length
6 ... 7 mm
Tool
0.5 × 3.0 mm screwdriver
Tightening torque
0.4 … 0.5 Nm
X542
Terminal type
Screw terminal
Connectable conductor
cross-section
Rigid, flexible
With end sleeve, without plastic sleeve
With end sleeve, with plastic sleeve
0.2 mm
2
... 2.5 mm
2
0.25 mm
2
... 1 mm
2
0.25 mm
2
... 1 mm
2
Stripped length
9 mm
Tightening torque 0.5 ... 0.6 Nm
7.5.3.2
X500/X501 DRIVE-CLiQ interfaces
Table 7- 32 X500/X501: DRIVE-CLiQ interfaces
Connector
Pin
Signal name
Technical specifications
1
TXP
Transmit data +
2 TXN Transmit data -
3
RXP
Receive data +
4
Reserved, do not use
5
Reserved, do not use
6
RXN
Receive data -
7
Reserved, do not use
8
Reserved, do not use
A
+ (24 V)
Power supply
B
M (0 V)
Electronics ground
The blanking covers for the DRIVE
-CLiQ interfaces are included in the scope of delivery.
Blanking covers (50 x) Article number: 6SL3066-4CA00-0AA0
