Additional system components
7.2 SMC10 Sensor Module Cabinet-Mounted
SINAMICS DCM DC Converter
Operating Instructions, 12/2018, A5E34763375A
199
7.2.2.2
X500 DRIVE-CLiQ interface

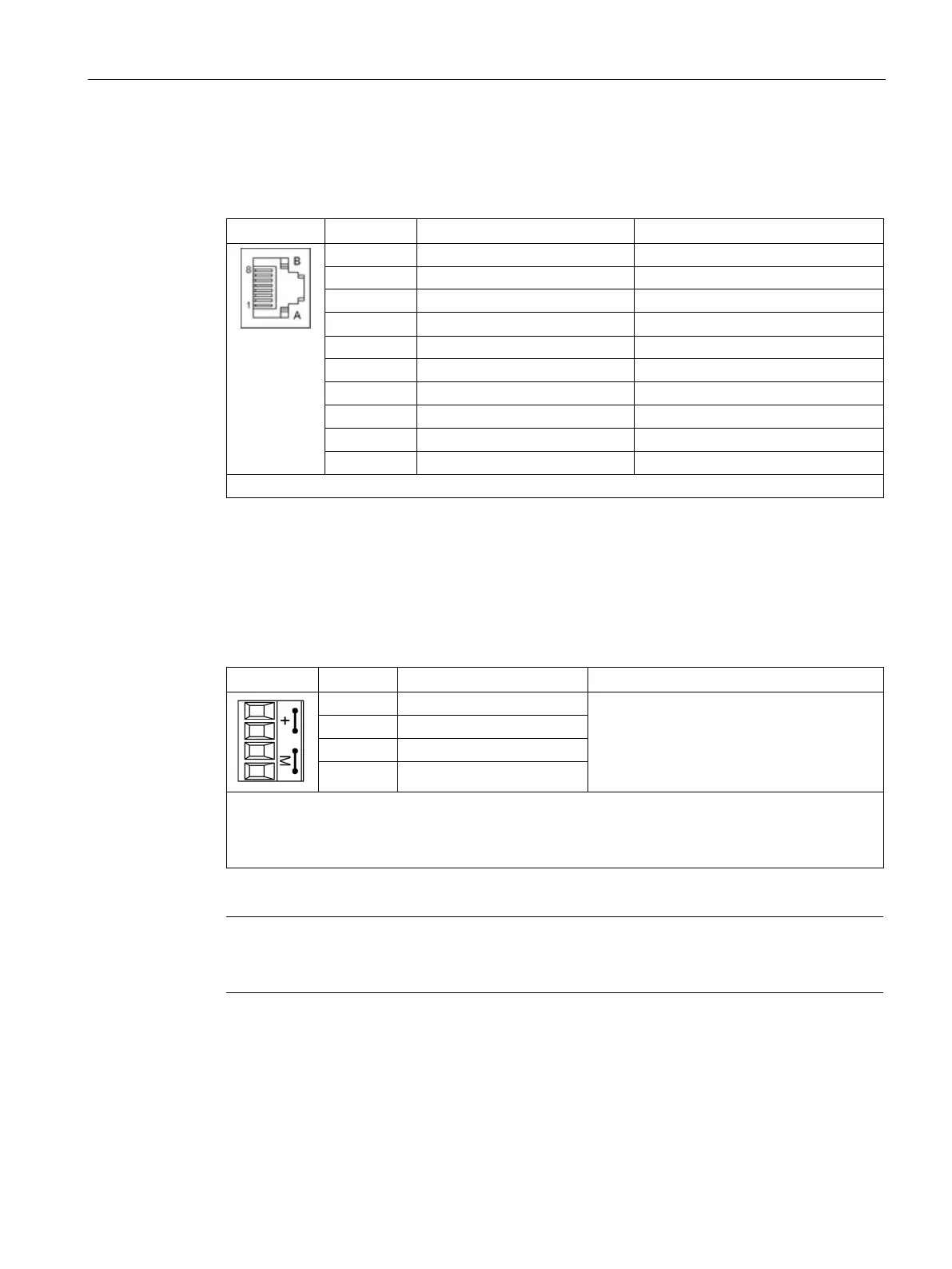

Table 7- 6 X500: DRIVE-CLiQ interface
Connector
Pin
Signal name
Technical data
1
TXP
Transmit data +
2
TXN
Transmit data -
3
RXP
Receive data +
4 Reserved, do not use
5
Reserved, do not use
6
RXN
Receive data -
7
Reserved, do not use
8
Reserved, do not use
A
Reserved, do not use
B
M (0 V)
Electronics ground
Connector type: DRIVE-CLiQ socket
The blanking cover for the DRIVE
-CLiQ port is included in the scope of delivery.
Blanking covers (50 x) Article No: 6SL3066-4CA00-0AA0
7.2.2.3
X524 Electronics power supply
Table 7- 7 X524: Electronics power supply
Connector
Terminal
Function
Technical data
+
Electronics power supply
Voltage: 24 V (20.4 … 28.8 V)
Current consumption: max. 0.35 A
Max. current via jumper in connector: 20 A
(15 A according to UL/CSA)
+
Electronics power supply
M
Electronics ground
M Electronics ground
Type: Screw terminal
Conductor cross sections that can be connected: Flexible, 0.08 mm
2
to 2.5 mm
2
Stripped length: 8 to 9 mm
Tool: 0.4 × 2.0 mm screwdriver
The maximum cable length that can be connected is 30 m.
Note
The two
"+" or "M" terminals are jumpered in the connector. This ensures that the supply
voltage is looped through.
