Siemens SINAMICS Series User Manual

Additional system components
7.1 Option Board: Communication Board Ethernet CBE20
SINAMICS DCM DC Converter
Operating Instructions, 12/2018, A5E34763375A
197
7.1.5
Installation

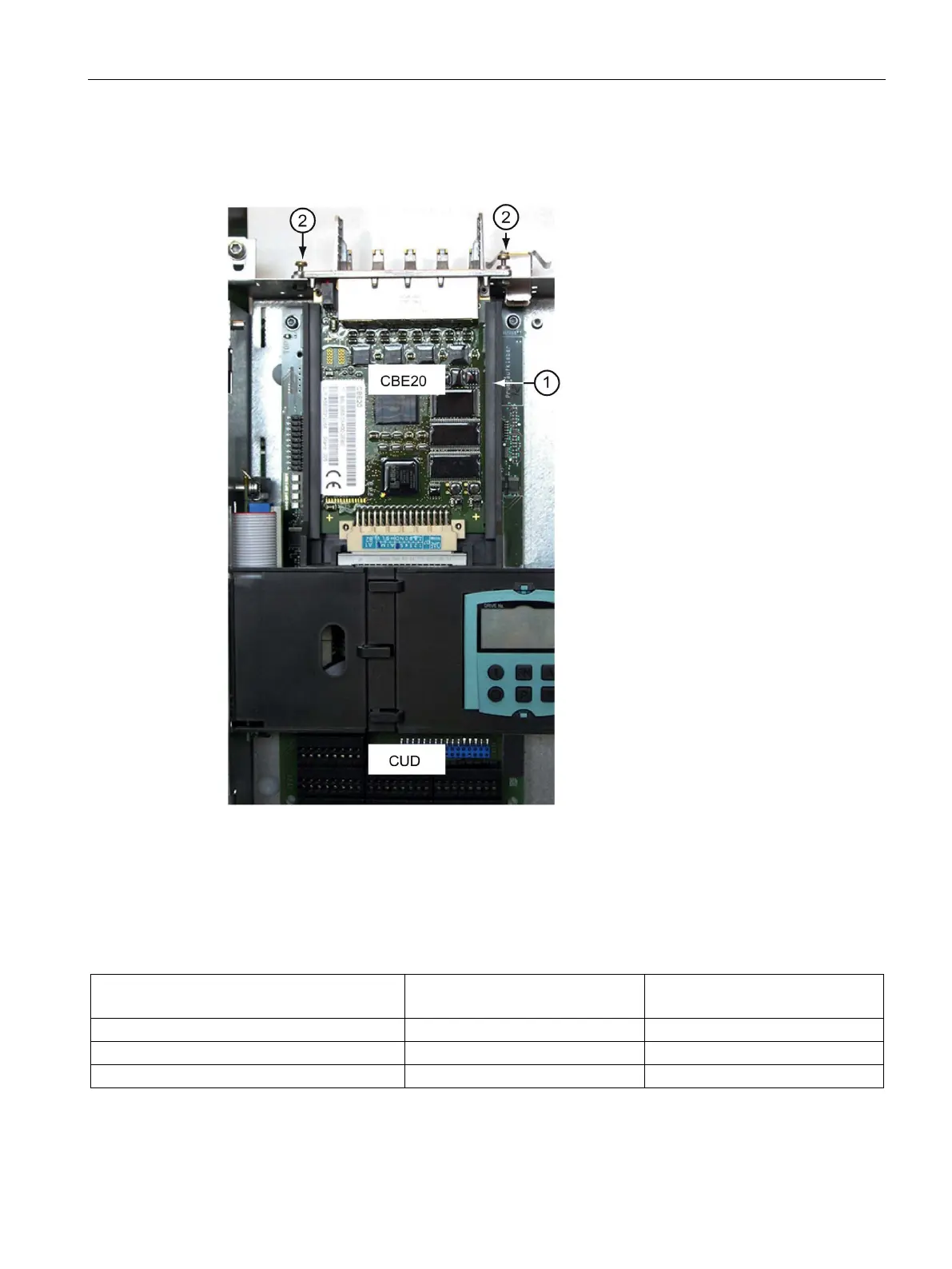

Installing the CBE20
Push the CBE20 into the option module
interface
① on the CUD from above,
and tighten the screws
②.
Tool: Torx T10 screwdriver
Tightening torque: 1 Nm
7.1.6
Technical data
Table 7- 5 Technical data
Communication Board CBE20
6SL3055-0AA00-2EBx
Unit
Value
Max. current requirements (at 24 V DC)
A
DC
0.1
Power loss
W
2.4
Weight
kg
< 0.1
