Additional system components
7.4 Terminal Module TM15
SINAMICS DCM DC Converter
Operating Instructions, 12/2018, A5E34763375A
225
Note
Malfunctions due to polluted DRIVE-CLiQ interfaces
Malfunctions can occur in the system through the use of polluted DRIVE
-CLiQ interfaces.
•
Cover unused DRIVE-CLiQ interfaces with the supplied blanking covers.
7.4.3
Interface description
7.4.3.1
Overview

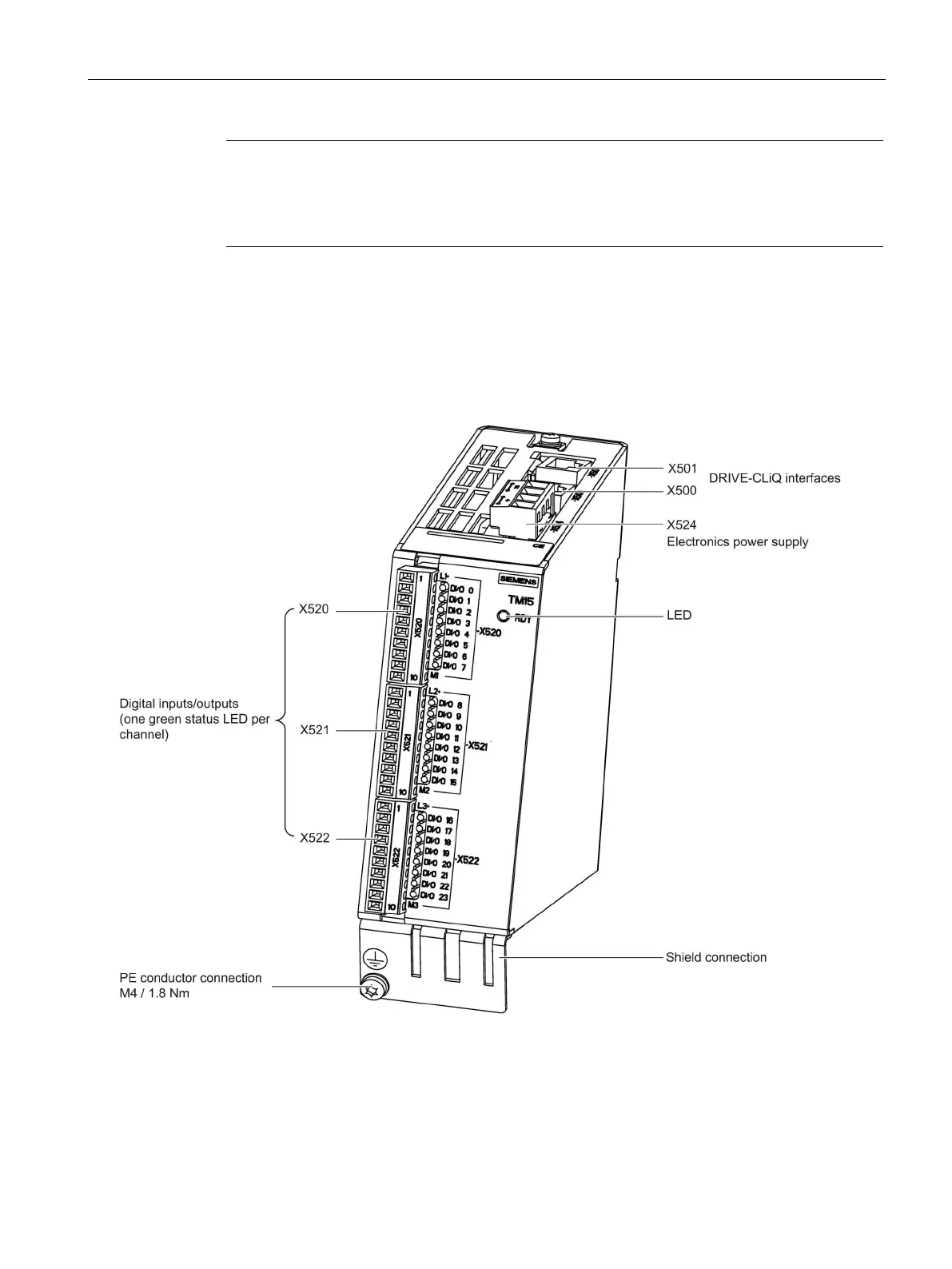

Figure 7-18 TM15 interface overview
