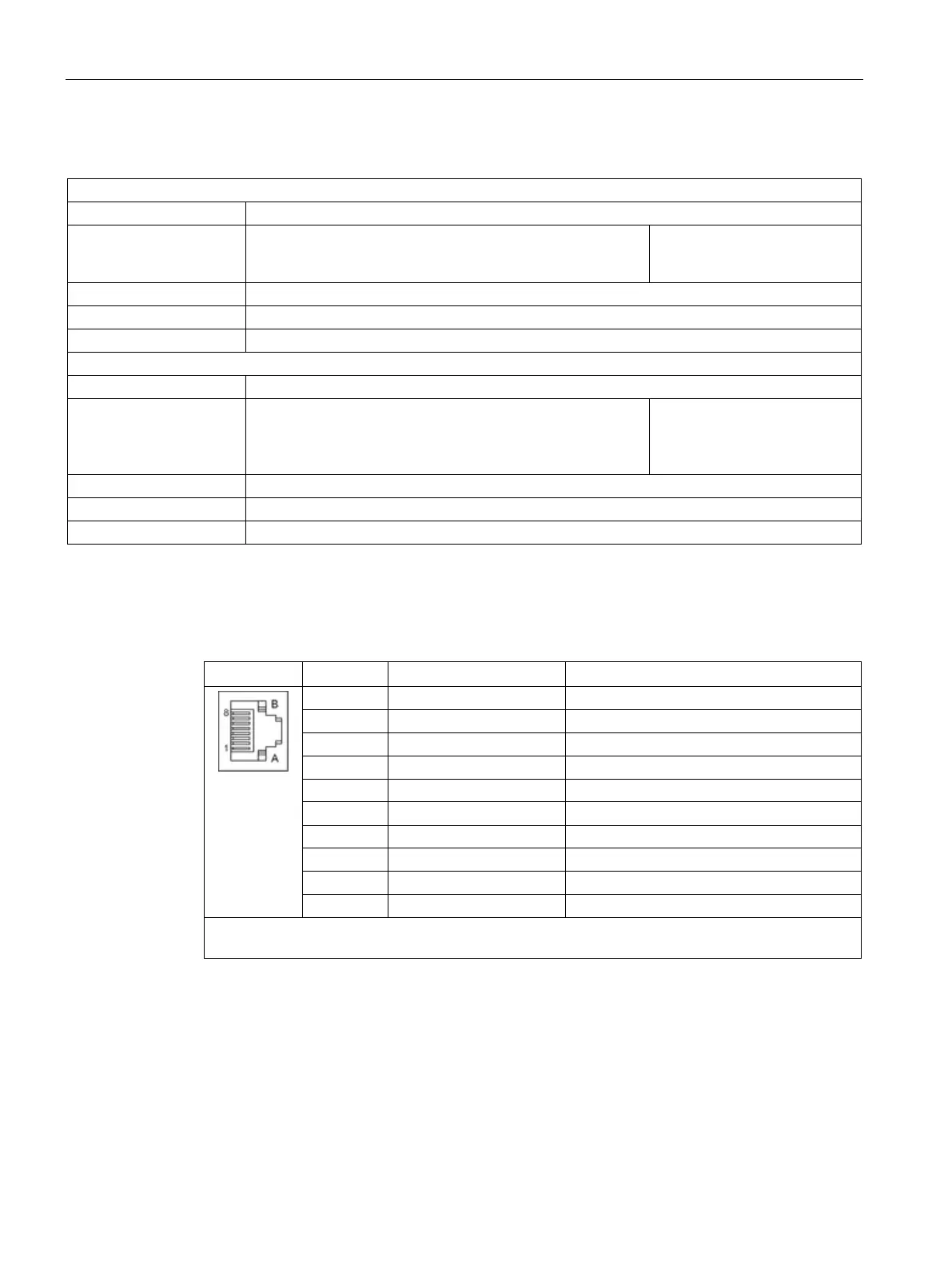

7.4 Terminal Module TM15
SINAMICS DCM DC Converter
226 Operating Instructions, 12/2018, A5E34763375A
Terminal type
X520, X521, X522
Terminal type
Screw terminal
Connectable conductor
cross-section
Rigid, flexible
With end sleeve, without plastic sleeve
With end sleeve, with plastic sleeve
0.08 mm
2
... 1.5 mm
2
0.25 mm
2
... 1.5 mm
2
0.25 mm
2
... 0.5 mm
2
Stripped length
7 mm
Tool 0.4 × 2.0 mm screwdriver
Tightening torque
0.22 … 0.25 Nm
X524
Terminal type
Screw terminal
Connectable conductor
cross-section
Rigid, flexible
With end sleeve, without plastic sleeve
With end sleeve, with plastic sleeve
AWG / kcmil
0.2 mm
2
... 2.5 mm
2
0.2 mm
2
... 2.5 mm
2
0.2 mm
2
... 1.5 mm
2
22 ... 12
Stripped length
6 ... 7 mm
Tool
0.5 × 3.0 mm screwdriver
Tightening torque
0.4 … 0.5 Nm
7.4.3.2
X500 and X501 DRIVE-CLiQ interface
Table 7- 23 DRIVE-CLiQ interfaces X500 and X501
Connector
Pin
Signal name
Technical specifications
1
TXP
Transmit data +
2
TXN
Transmit data -
3
RXP
Receive data +
4
Reserved, do not use
5
Reserved, do not use
6 RXN Receive data -
7
Reserved, do not use
8
Reserved, do not use
A
+ (24 V)
Power supply
B
M (0 V)
Electronics ground
Blanking plate for DRIVE-CLiQ interfaces included in the scope of delivery;
blanking plate (50 pieces) Article number: 6SL3066-4CA00-0AA0
