Additional system components
7.2 SMC10 Sensor Module Cabinet-Mounted
SINAMICS DCM DC Converter
202 Operating Instructions, 12/2018, A5E34763375A
7.2.4.2
Cause and rectification of faults
Cause and rectification of faults
Additional information about the cause and how to resolve faults can be found here:
● SINAMICS DCM List Manual
● Chapter "Commissioning with the Starter commissioning tool (Page 287)"
7.2.5
Dimension drawing

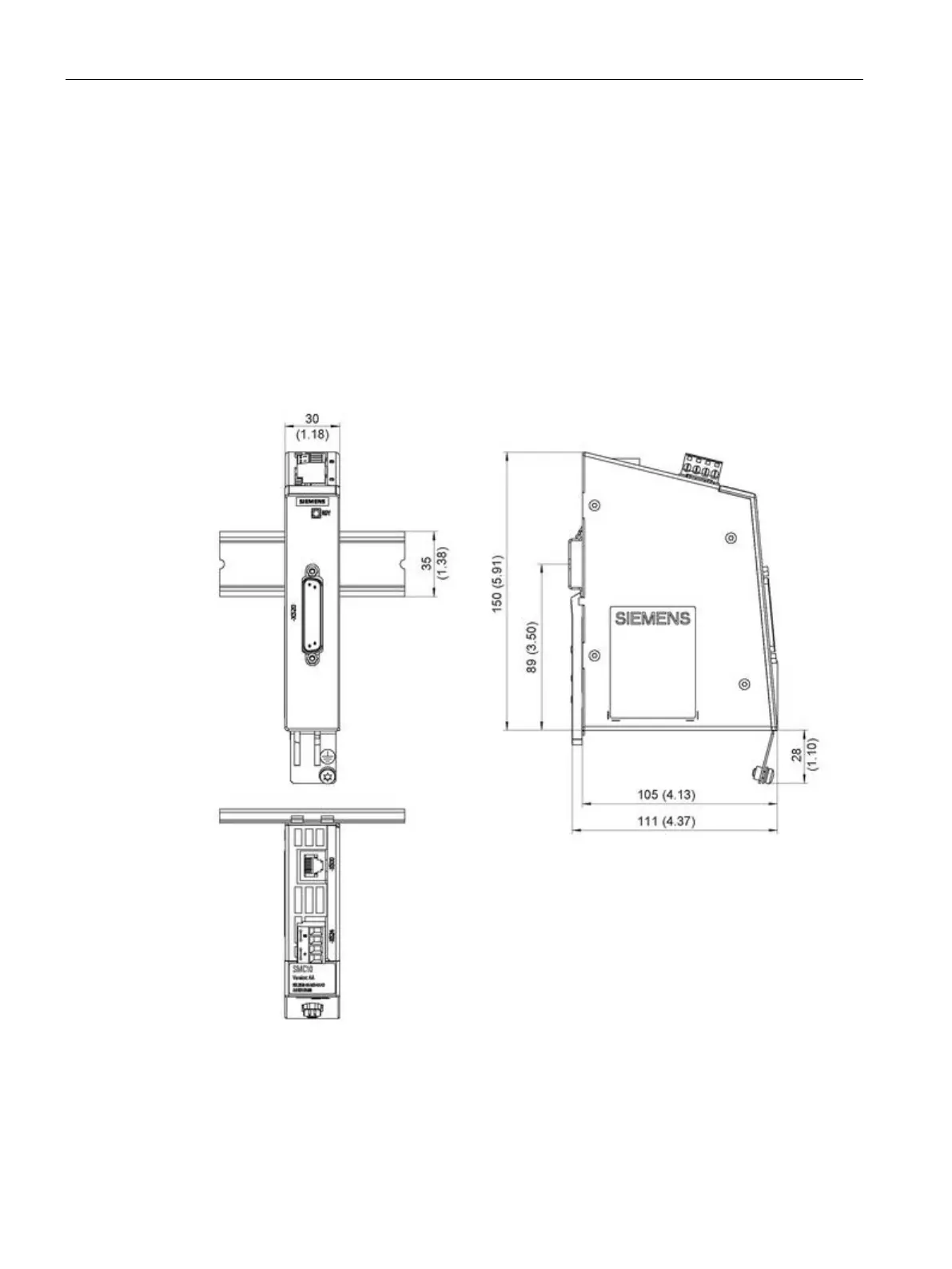

Figure 7-4 Dimension drawing of the Sensor Module Cabinet SMC10, all dimensions in mm and
(inches)
