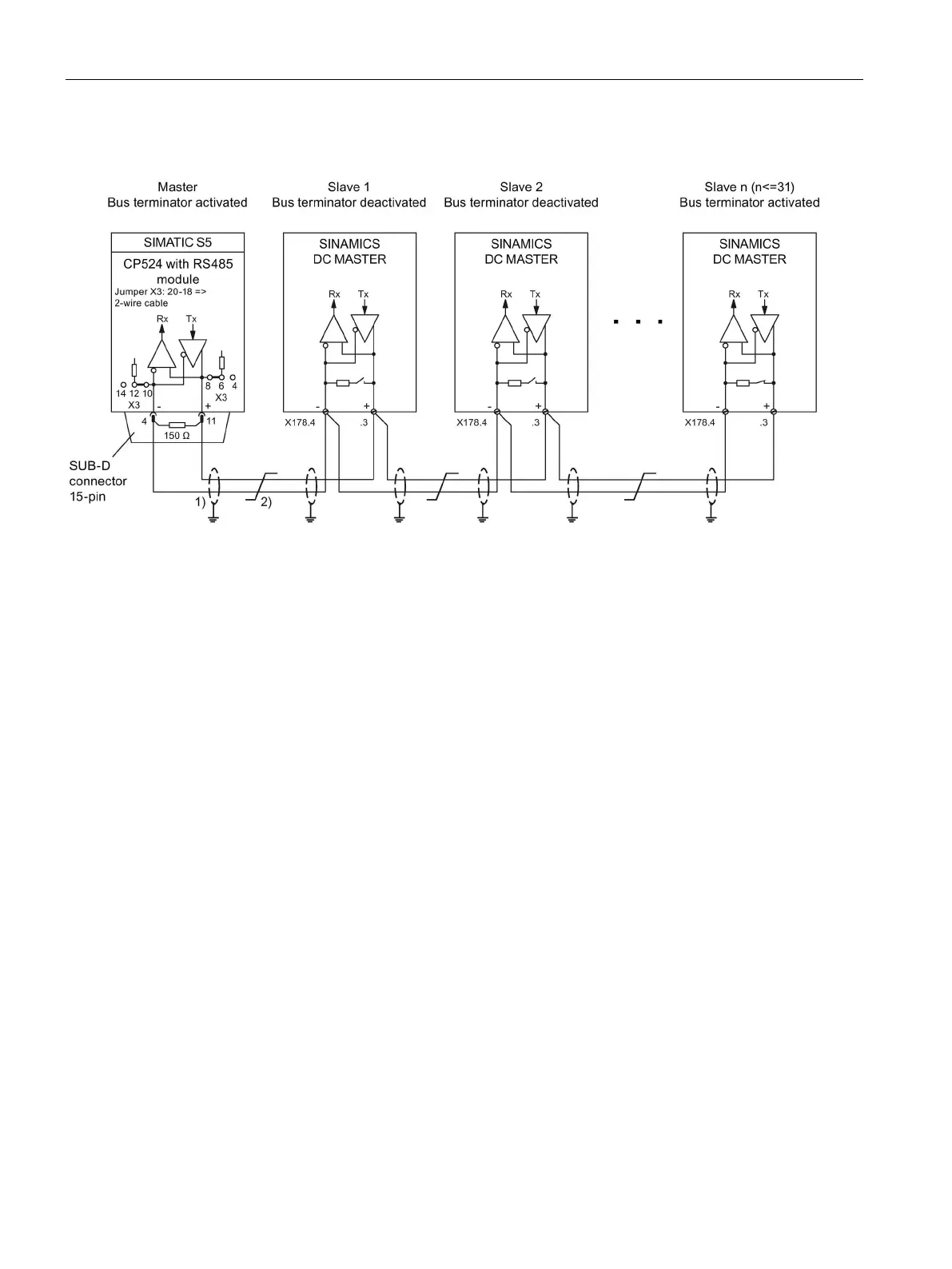

Wiring example for a USS bus
1) The shields for the interface cables must be connected directly on the devices (using a clamp, for example) to
device or cabinet ground, with a low level of impedance.
2) Twisted cable, e.g. LIYCY 2×0.5 mm
2
; with longer cables, an equipotential bonding cable should be used to ensure
that the difference in ground potentials between the link partners remains below 7 V.
Figure 10-57 USS bus
10.10
Switch on, switch off, enable
10.10.1
Switch on/Switch off (ON/OFF1) – Control word bit 0
The "Switch on/Shutdown" (ON/OFF1) function is controlled using the "ON/OFF1 switch-on
command" (= ANDing the signal from terminal X177.12 with the signal selected using
p0840).
The following operating modes are possible here:
p50445 = 0:
The
"ON/OFF1 switch-on command" takes the form of ANDing the signal
from
terminal X177.12 with the signal selected using p0840 (level-controlled,
0 = shutdown, 1 = switch on).
p50445 = 1:
Edge triggering of
"ON/OFF1 switch-on command":
The switch
-on command is saved when a 0 → 1 transition takes place
(see
function diagram 3130 in the SINAMICS DCM List Manual). The binector
s
elected using p50444 must be in the log. "1" state at this point. The memory
is reset when this binector enters the log. "0" state.
