Connecting
6.5 Field supply
SINAMICS DCM DC Converter
144 Operating Instructions, 12/2018, A5E34763375A

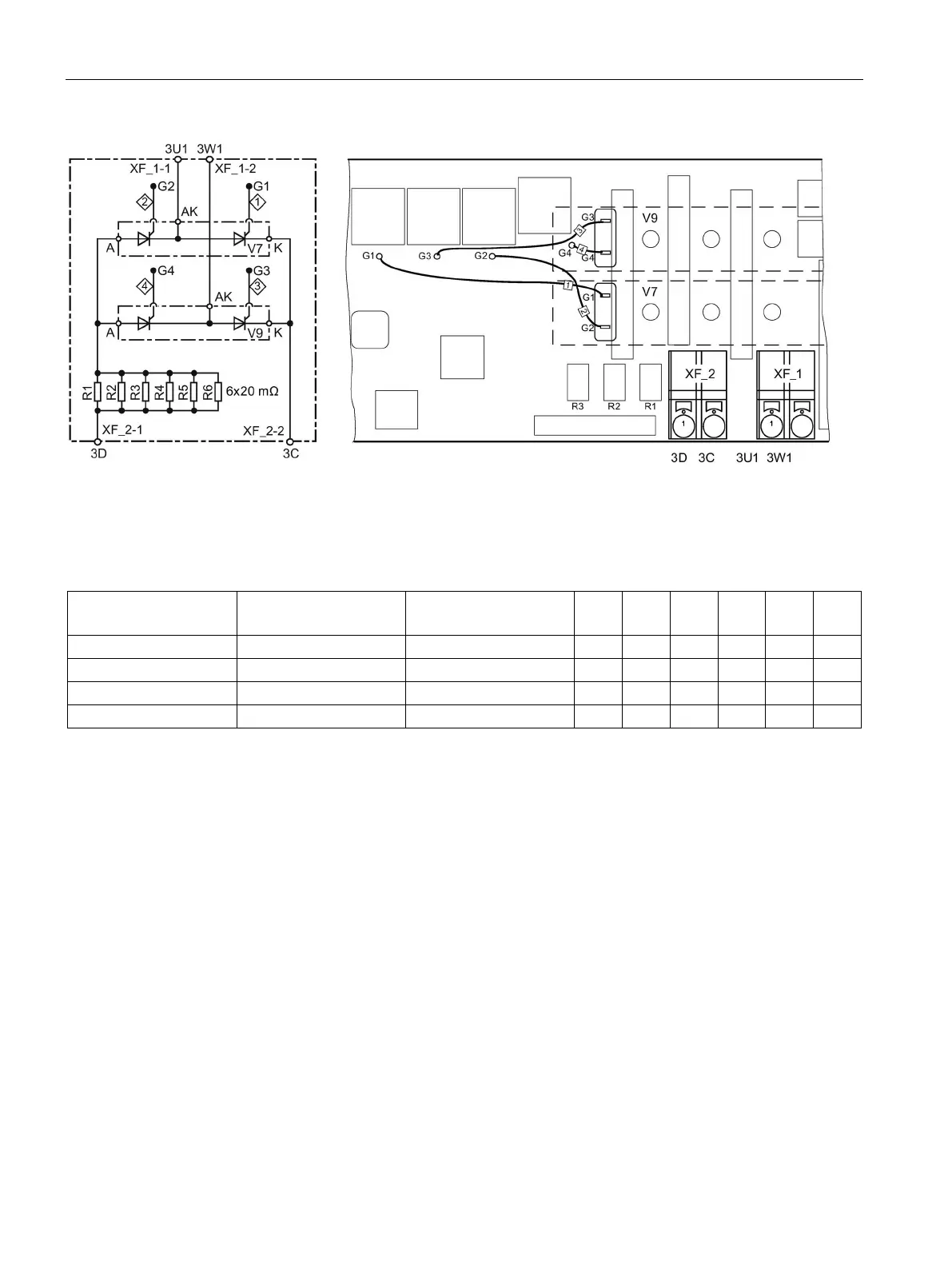

Figure 6-42 60 - 850 A devices, 2Q field module (option)
Gate cables: Betatherm 145 0.5 mm
2
, UL
Table 6- 3 R1 to R6 equipment
Rated armature
DC current
Rated field
DC current
Module
R1
R2
R3
R4
R5
R6
60 A ... 125 A
10 A
10 A field module
x
x
-
-
-
-
210 A ... 280 A
15 A
15 to 30 A field module
x
x
x
x
x
x
400 A ... 600 A
25 A
15 to 30 A field module
x
x
x
x
x
x
720 A ... 850 A 30 A 15 to 30 A field module x x x x x x
