10.5 Communication via PROFINET IO
SINAMICS DCM DC Converter
486 Operating Instructions, 12/2018, A5E34763375A
Setting the IP address in Windows 7
Note
The following procedure is based on the Windows 7 operating system. Under other operating
systems (such as Windows XP), operation may diffe
r slightly.
1. In the PG/PC call the control panel using the "Start > Control Panel" menu item.
2. In the control panel of your PG/PC, under "Network and Internet", select the "Network and
Sharing Center" function.
3. For your network card that is displayed, click the connection link.
4. Click in the status dialog of the connection on "Properties" and acknowledge the
subsequent confirmation prompt with "Yes".
5. In the properties dialog of the connection, select the "Internet protocol 4 (TCP/IPv4)"
element and then click "Properties".
6. In the properties dialog, activate the "Use the following IP address" option.
7. Set the IP address of the PG/PC access interface to the Control Unit to 169.254.11.1 and
the subnet mask to 255.255.0.0.

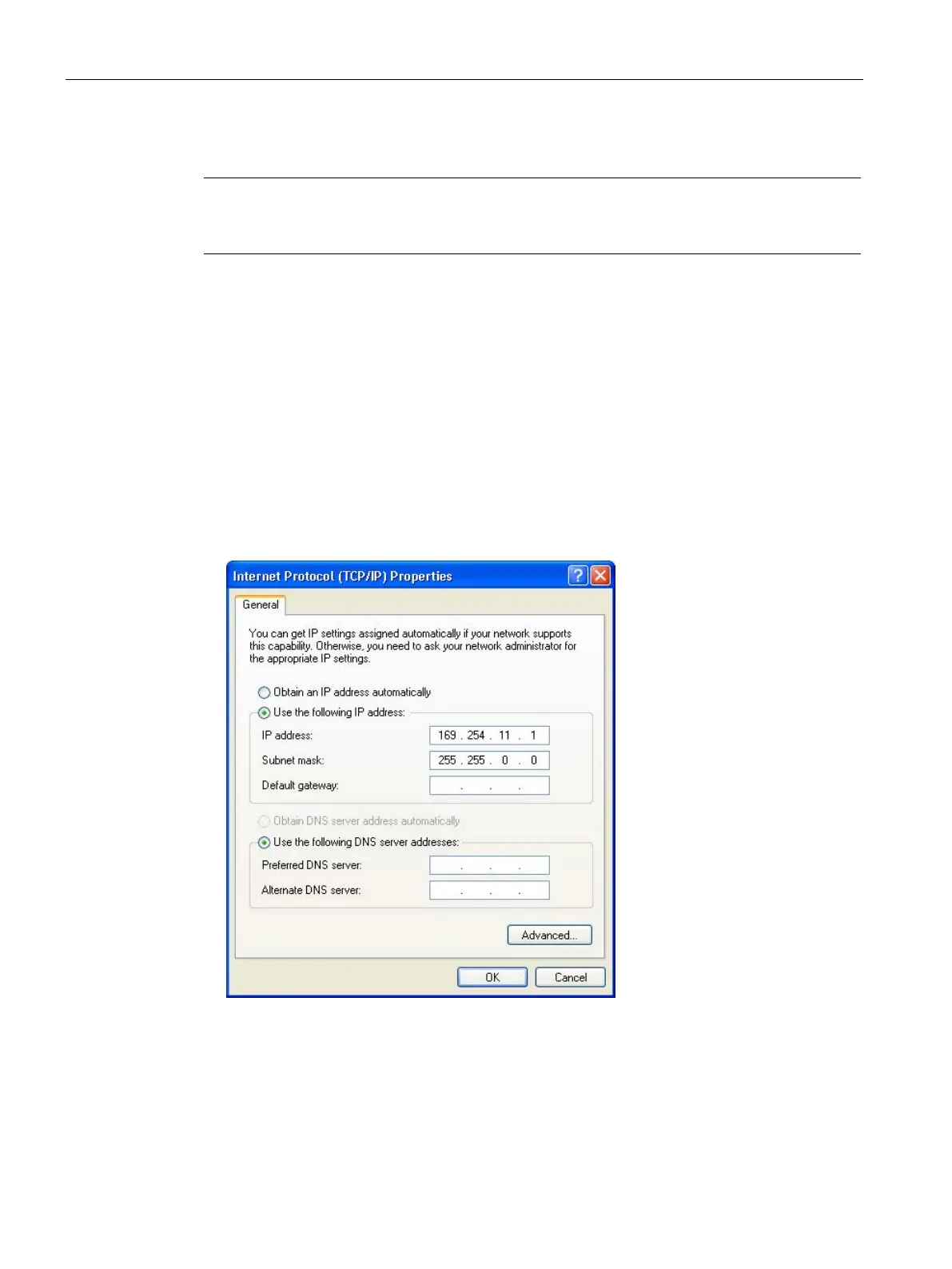

Figure 10-33 Example: IPv4 address of the PG/PC
8. Click "OK" and close the Windows-specific window of the network connections.
