Descriptions of functions
10.7 EtherNet/IP
SINAMICS DCM DC Converter
Operating Instructions, 12/2018, A5E34763375A
529

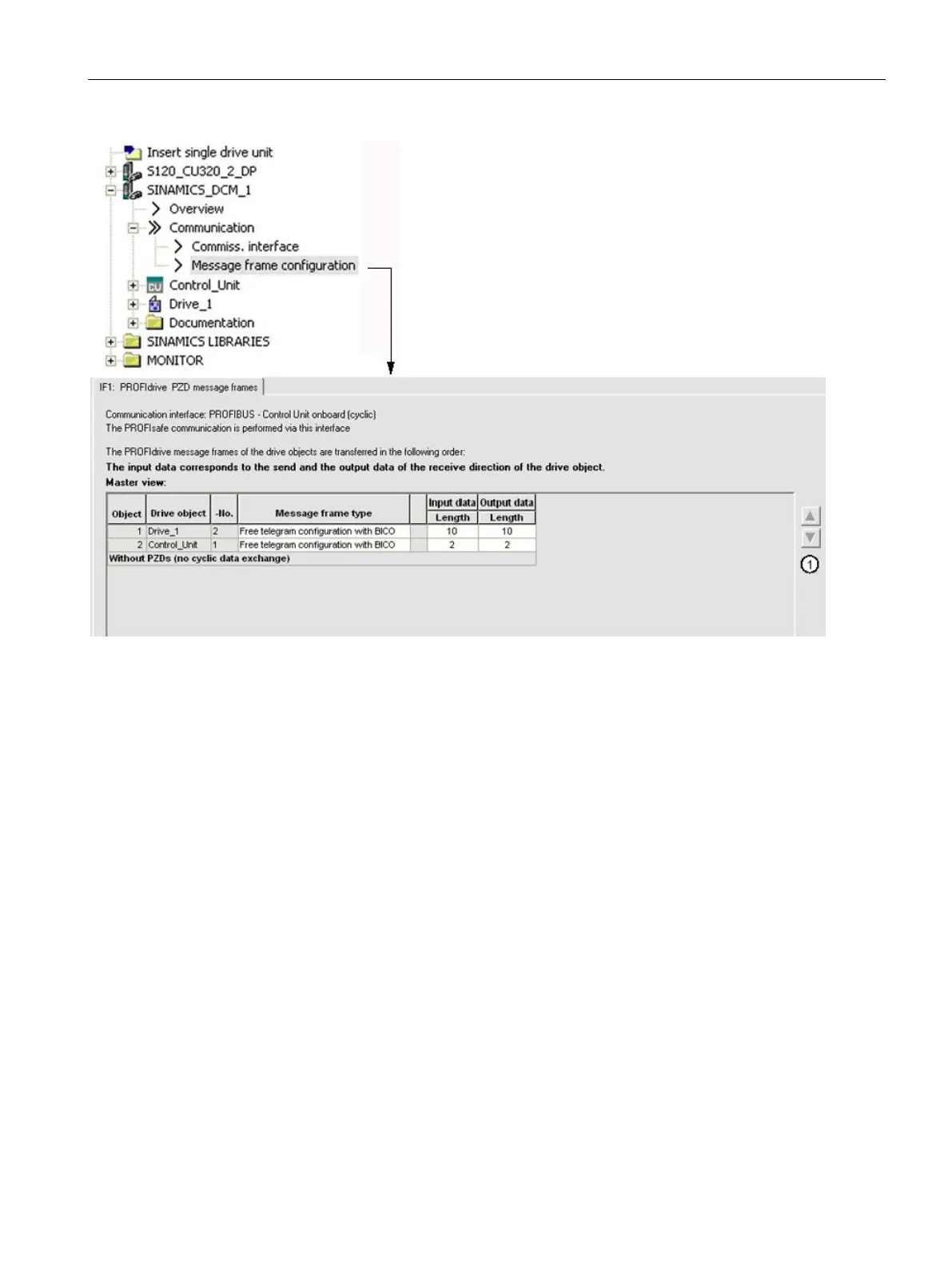

Figure 10-45 Changing the DO sequence
The sequence can only be changed offline using the arrows on the right ①. For the change
to take effect, it must be subsequently downloaded from the PG/PC to the drive.
Explicit messaging - acyclic or event-driven communication
Acyclic or event-driven information can also be read from the drive or written to the drive,
e.g. read-out of the fault buffer when an error occurs.
"Explicit messaging" must be used in order to be able to use this information in the classes
described in the following.

Siemens SINAMICS Series Specifications

General

Product Line	SINAMICS
Cooling Method	Air-cooled, Liquid-cooled
Voltage Range	200 V to 690 V
Power Range	0.12kW - 250kW
Communication Interfaces	PROFINET, PROFIBUS, Ethernet
Control Modes	Vector control, V/f control
Protection Class	IP20
Type	Variable Frequency Drives (VFD)
