Siemens SINAMICS Series User Manual

Descriptions of functions
10.37 Drive Control Chart (DCC)
SINAMICS DCM DC Converter
664 Operating Instructions, 12/2018, A5E34763375A
10.37.1
Loading the DCC technology option into the drive unit memory
Loading the DCC technology option into the drive unit is usually performed with STARTER
and with the SINAMICS DCM takes about 7 min. During this process, the entire DCB library
with a scope of approx. 2 MB data is transferred to the drive.
To accelerate this process, the SINAMICS DCM supports an alternative option for
transferring the DCB library to the drive. With this method, the process is shortened to less
than 5 min:
●
Step 1
In STARTER, open a project that includes a SINAMICS DCM drive with at least one DCC
chart. In the shortcut menu (right mouse button), select "Load into file system" (only
possible in the offline mode).

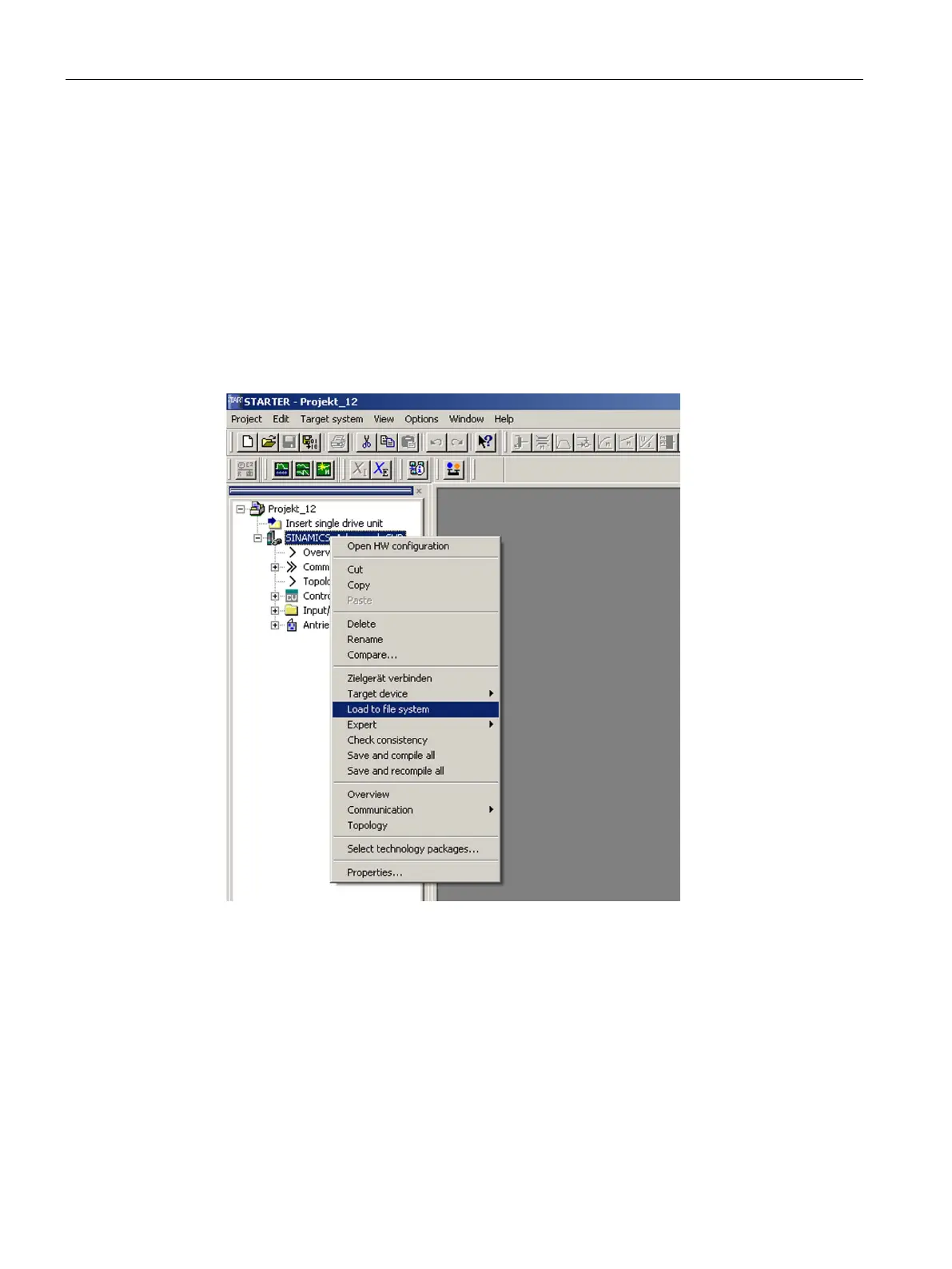

Figure 10-101 Loading into the file system
●
Step 2
A dialog, "Load into file system", opens. Choose "Select target" and select an empty
folder on a local hard drive.
