8.3 SYSTEM - "Machine data" softkeys
Cylindrical grinding
Programming and Operating Manual, 07/2009, 6FC5398-4CP10-2BA0
115
This function provides various display filters for the active machine data group. Further
softkeys are provided:
● "Expert": Use this softkey to select all data groups of the expert mode for display.
● "Filter active": Use this softkey to activate all data groups selected. After you have quit the
window, you will only see the selected data on the machine data display.
● "Select all": Use this softkey to select all data groups of the Expert mode for display.
● "Deselect all": Selecting this softkey deselects all data groups.

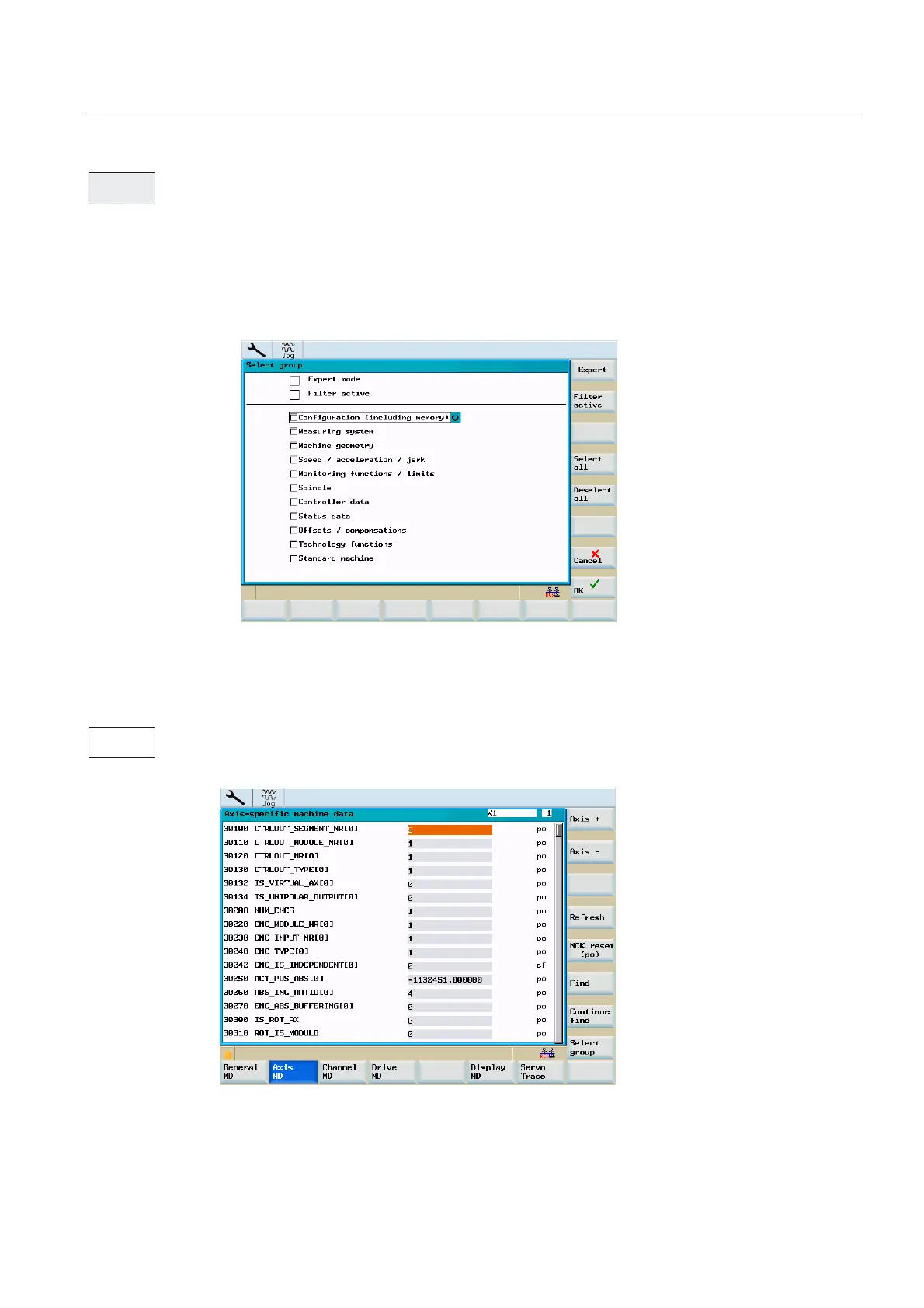

Figure 8-8 Display filter
Axis-specific machine data
Open the "Axis-specific machine data" window. The softkey bar will be supplemented by the
softkeys "Axis +" and "Axis ".
Figure 8-9 Axis-specific machine data
The data of axis 1 are displayed.
