8.3 SYSTEM - "Machine data" softkeys
Cylindrical grinding
118 Programming and Operating Manual, 07/2009, 6FC5398-4CP10-2BA0
In the note line, the selected value is displayed in hexadecimal and binary values.
Use these functions to search in the parameter list for the term you are looking for.
Display of machine data
Open the "Display machine data" window. Use the PageUp / PageDown keys to browse
forward / backward.

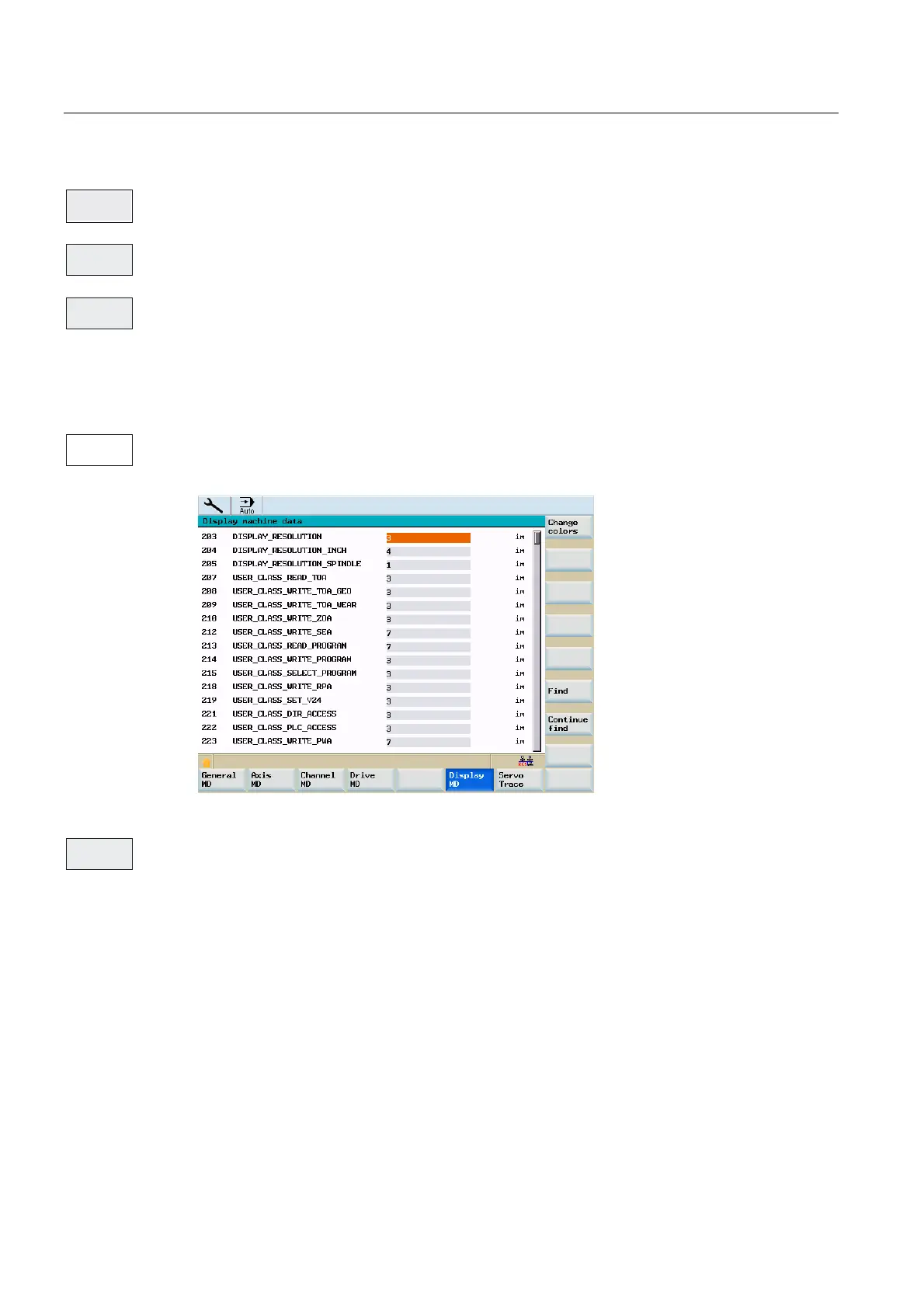

Figure 8-13 Display of machine data
Use the "Softkey color" and "Window color" softkeys to specify user-defined color settings.
The displayed color consists of the components red, green and blue.
The "Change color" window displays the values currently set in the input fields. The desired
color can be produced by changing these values. In addition, the brightness can be
changed.
The next mixing ratio is displayed temporarily upon completion of an input. Use the cursor
keys to switch between the input fields.
With "OK", the settings are accepted and the dialog box is closed. Selecting the "Abort"
softkey will close the dialog box without accepting your changes.
