Settings for output via the RS232 interface
Settings of the RS232 output interface.

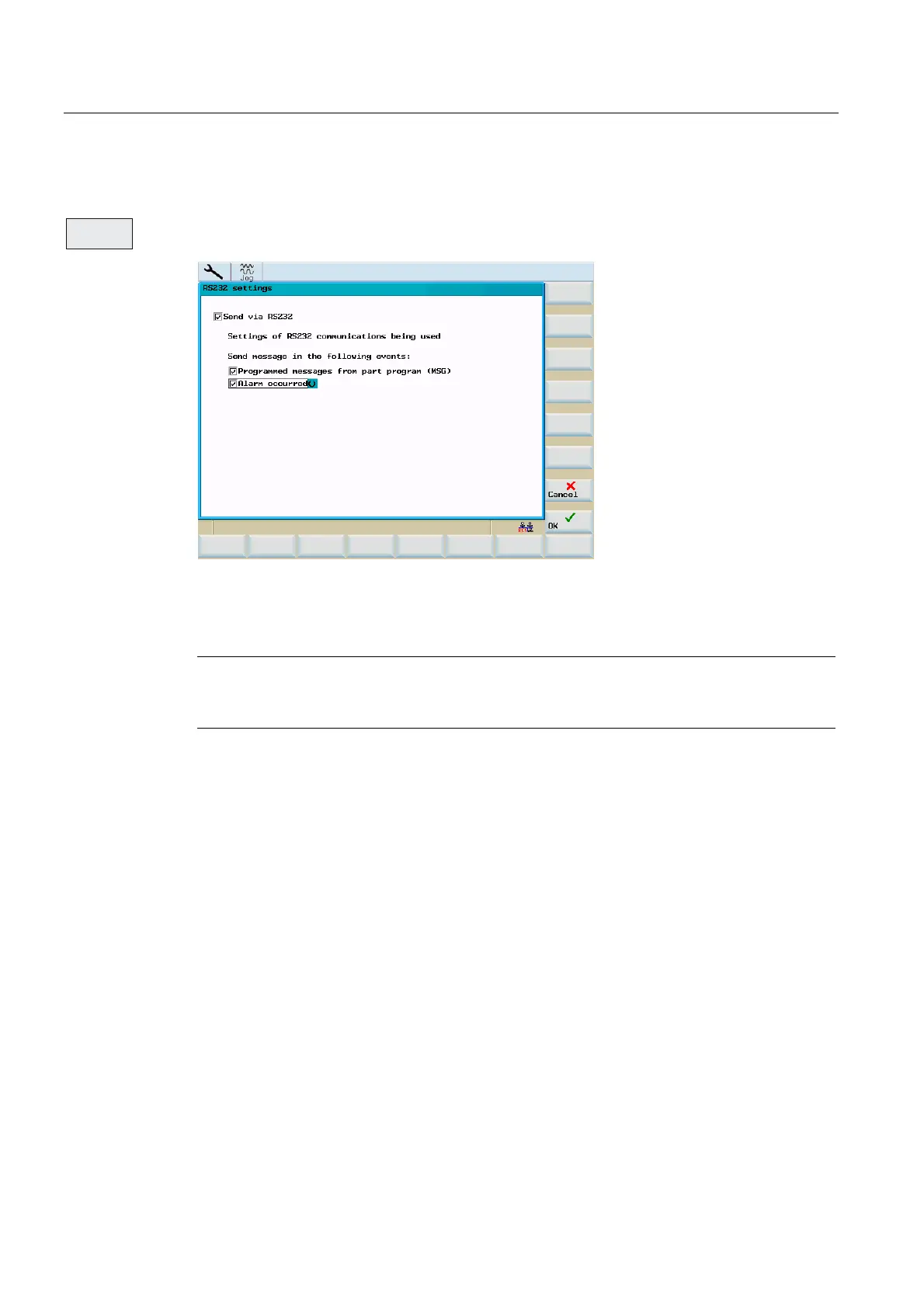

Figure 8-30 Dialog box, RS232 interface settings
"Sending messages via this interface can be activated or deactivated using the "Send via
RS232" checkbox. Incoming messages are ignored when the interface is deactivated!
Note
When transferring a file via a serial interface (RS232), please note the end of transmission
character for RS232 communication (analog to the communication setting, RS232 on HMI).
Further, when sending via RS232, it can be defined as to which messages are sent for which
events:
● Programmed messages from the part program
● An alarm has occurred
The settings are saved and the dialog box exited by pressing the "OK" softkey.
The dialog box is exited without saving by pressing "Cancel".
