9.9 Multiple plunge-cutting – CYCLE411
Cylindrical grinding
Programming and Operating Manual, 07/2009, 6FC5398-4CP10-2BA0
179
A_SR, A_SL, A_FSL (allowance)
For the various machining steps, different values can be defined for the allowance. These
refer to the nominal diameter.
A_SR Roughing allowance
A_SL Finishing allowance
A_FSL Fine-finishing allowance
SLZ (infeed amount for finishing), FSZ (infeed amount for fine-finishing)
When grinding by reciprocating, the wheel is fed in at the reversal points, depending on the
machining type (finishing or fine-finishing). The infeed amount is programmed with the
parameters SLZ and FSZ.
ZU_ART (infeed)

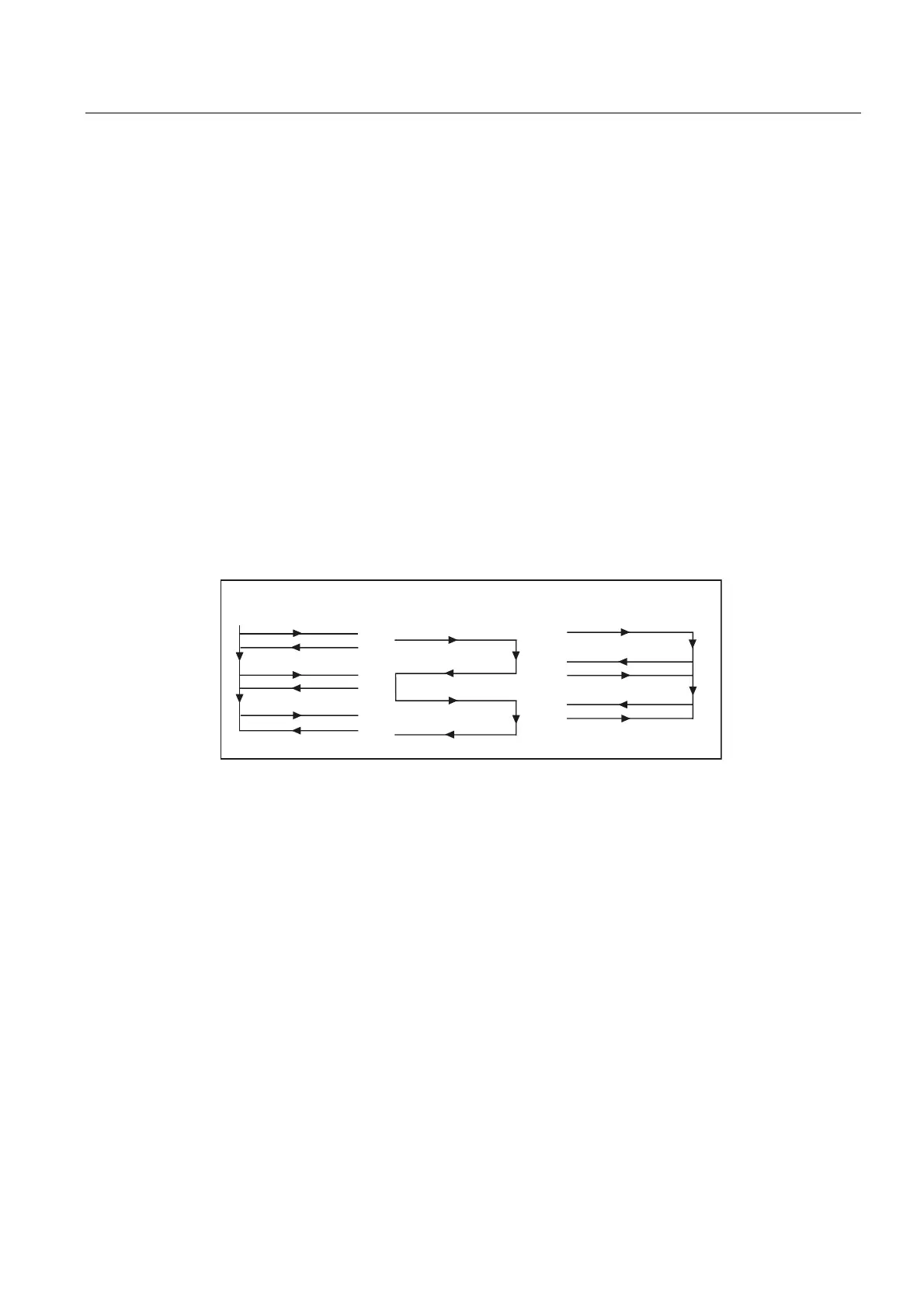

When grinding by reciprocating, the wheel is fed in at the reversal points. The ZU_ART
parameter is used to define whether an infeed by the infeed amount is to be performed only
at the left, at both or at the right reversal point.
=8B$57 =8B$57 =8B$57
%98
%98
BVU1 and BU2 (dwell time at the reversal point)
The dwell time at reversal point 1 or 2 can be defined using the following value:
"0 = Wait for exact stop fine and then wait for stopping time to elapse
The unit for the dwell time is given in workpiece speed after infeed.
F_PE, F_SR, F_SL, F_FSL (feedrate)
Different feedrates can be specified for the individual machining steps. They are
programmed in [mm/min].
F_PE Feedrate for reciprocating in Z
F_SR Feedrate for roughing
F_SL Feedrate for finishing
F_FSL Feed rate for fine finishing
