1.4 Coordinate systems
Cylindrical grinding
Programming and Operating Manual, 07/2009, 6FC5398-4CP10-2BA0
21
Clamping the workpiece
For machining, the workpiece is clamped on the machine. The workpiece must be aligned
such that the axes of the workpiece coordinate system run in parallel with those of the
machine. Any resulting offset of the machine zero with reference to the workpiece zero is
determined along the Z axis and entered in a data area intended for the settable work offset.
In the NC program, this offset is activated during program execution, e.g. using a
programmed G54.
:RUNSLHFH
:RUNSLHFH
=
;
:
;
=
0b
0b
0DFKLQH
0DFKLQH
:RUNSLHFH
HJ*

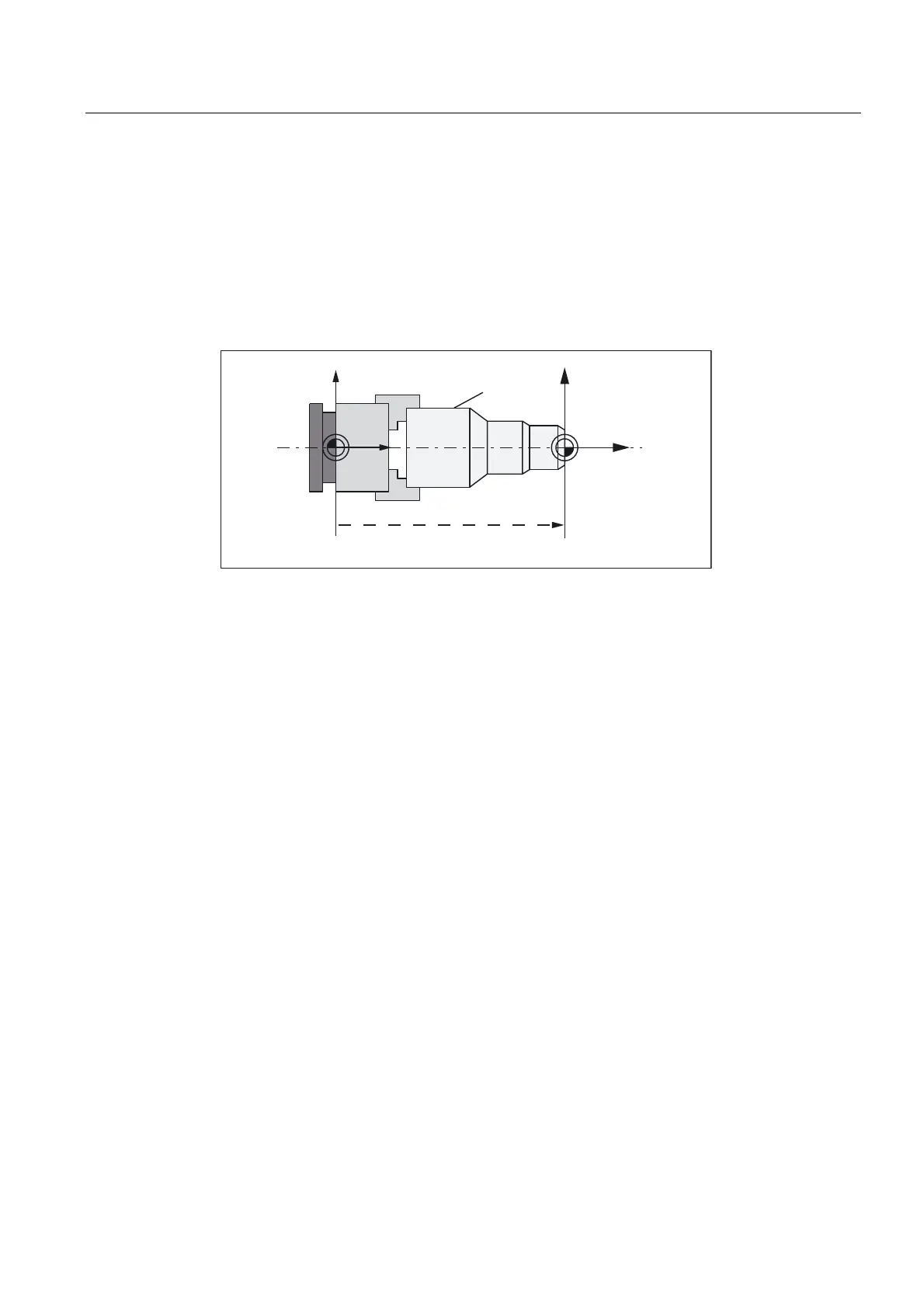

Figure 1-5 Workpiece on the machine
Current workpiece coordinate system
The programmed work offset TRANS can be used to generate an offset with reference to the
workpiece coordinate system resulting in the current workpiece coordinate system resulting
in the current workpiece coordinate system (see Section "Programmable work offset:
TRANS").
