Software interface
2.1 Screen layout
Cylindrical grinding
24 Programming and Operating Manual, 07/2009, 6FC5398-4CP10-2BA0

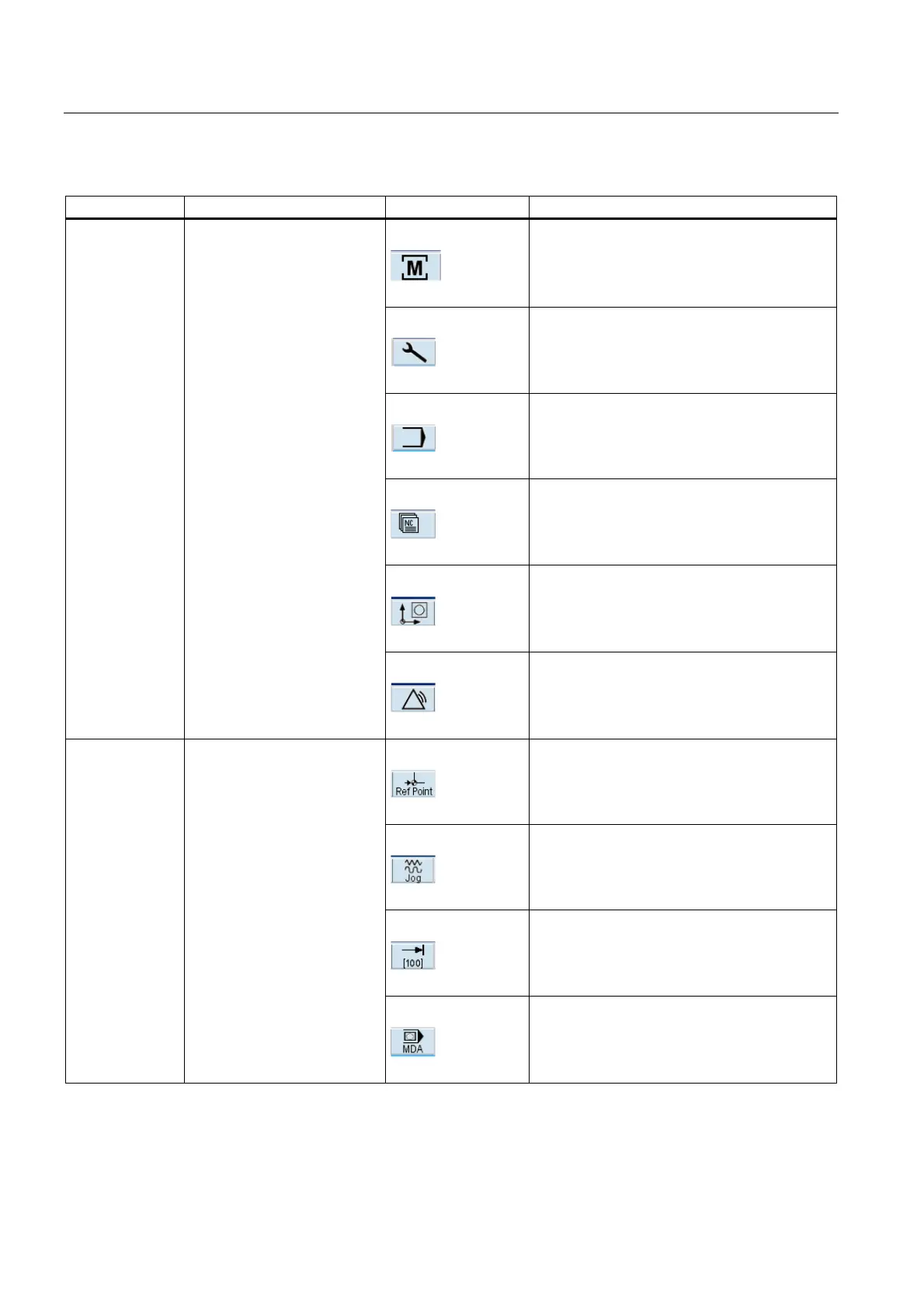

Table 2- 1 Explanation of the screen controls in the status area
Numbering Display Icon Significance
Position (operating area key <POSITION>)
System (operating area key <SYSTEM>)
Program (operating area key
<PROGRAM>)
Program Manager (operating area key
<PROGRAM MANAGER>)
Parameter (operating area key <OFFSET
PARAM>)
① Active operating area
Alarm (operating area key <ALARM>)
Approaching a reference point
JOG
JOG INC; 1 INC, 10 INC, 100 INC, 1000 INC,
VAR INC
(incremental evaluation in the JOG mode)
② Active mode
MDA
