PLC diagnostics
13.2 Operating options
Cylindrical grinding
Programming and Operating Manual, 07/2009, 6FC5398-4CP10-2BA0
363
Softkeys
The following PLC properties are shown with this softkey:
● Mode
● Name of the PLC project
● PLC system version
● Cycle time
● Machining time of the PLC user program

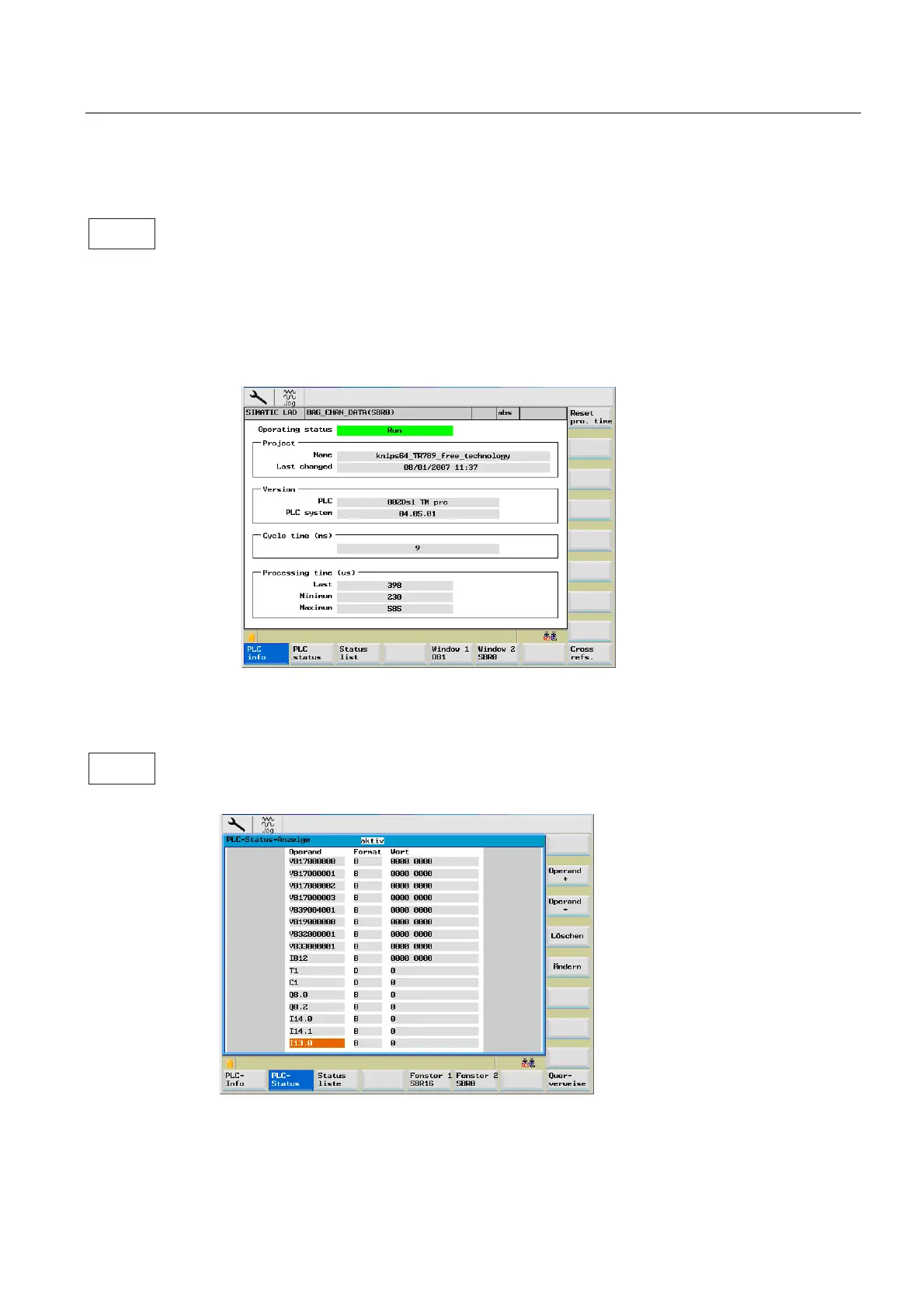

Figure 13-2 PLC info
By pressing the "Reset machining time" softkey, machining time data is reset.
The values of the operands can be monitored and changed during program execution using
the "PLC status display" window.
Figure 13-3 PLC status display
