PLC diagnostics
13.2 Operating options
Cylindrical grinding
364 Programming and Operating Manual, 07/2009, 6FC5398-4CP10-2BA0
Use the "Status list" softkey to display and modify PLC signals.

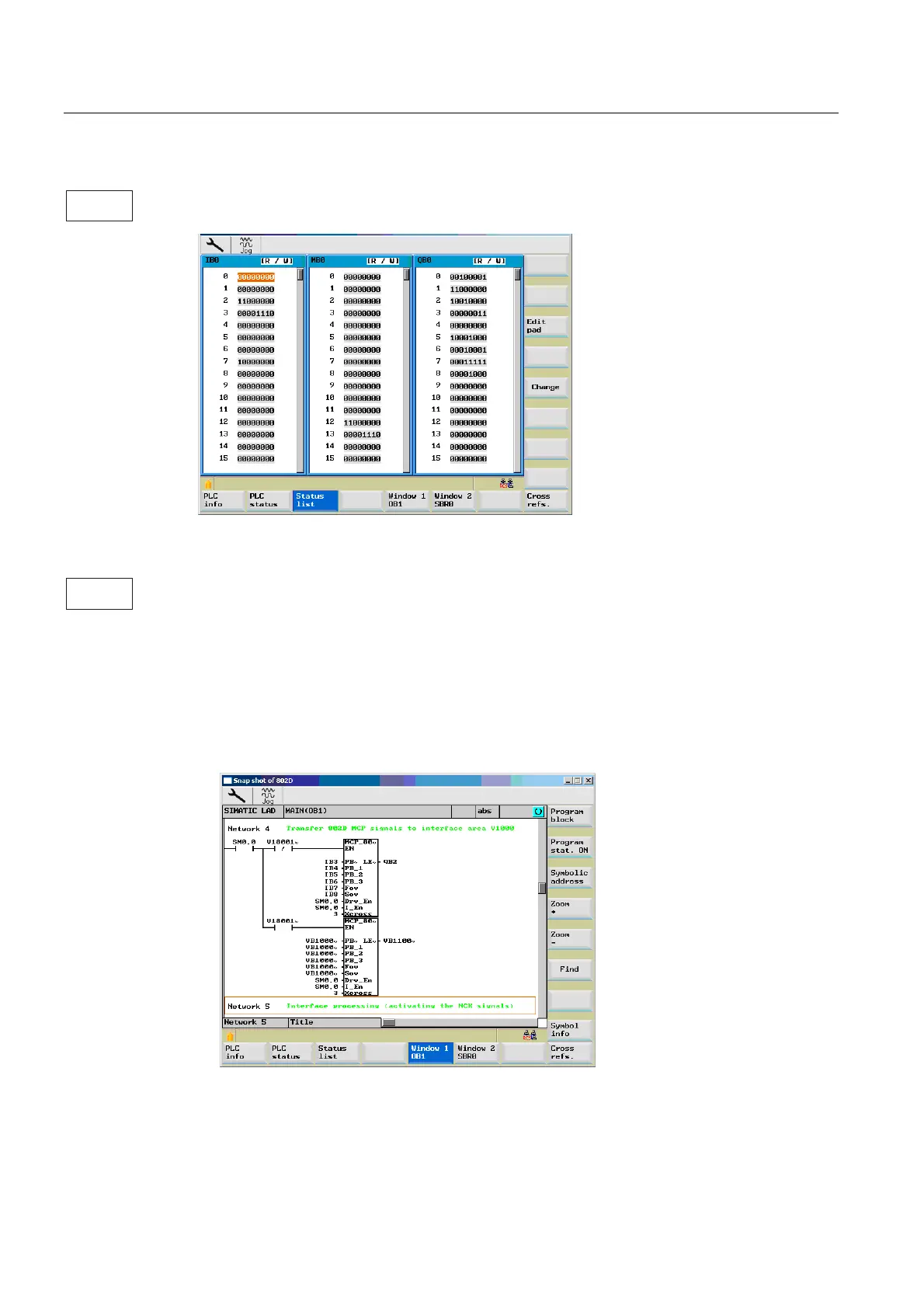

Figure 13-4 Status list
Using the "Window 1 ..." and "Window 2 ..." softkeys you can display any logical and
graphical information of a program block. The program block is one of the components of the
PLC user program.
The program block can be selected in the "Program list" using the "Open" softkey. The name
of the program block will be displayed on the softkey (for "..." e.g. "Window 1 SBR16").
The logics in the ladder diagram (LAD) display the following:
● Networks with program parts and current paths
● Electrical current flow through a number of logical operations
Figure 13-5 Window 1, OB1
6WDWXV
OLVW
:LQGRZ
2%
