4.2 Create new tool
Cylindrical grinding
44 Programming and Operating Manual, 07/2009, 6FC5398-4CP10-2BA0
The dresser type is selected in the Type toggle field.
Fixed dresser: Tile/Diamond
Forming rolls 1 to 3
Diamond rolls 1 to 3
Enter the parameters depending on the selection made.

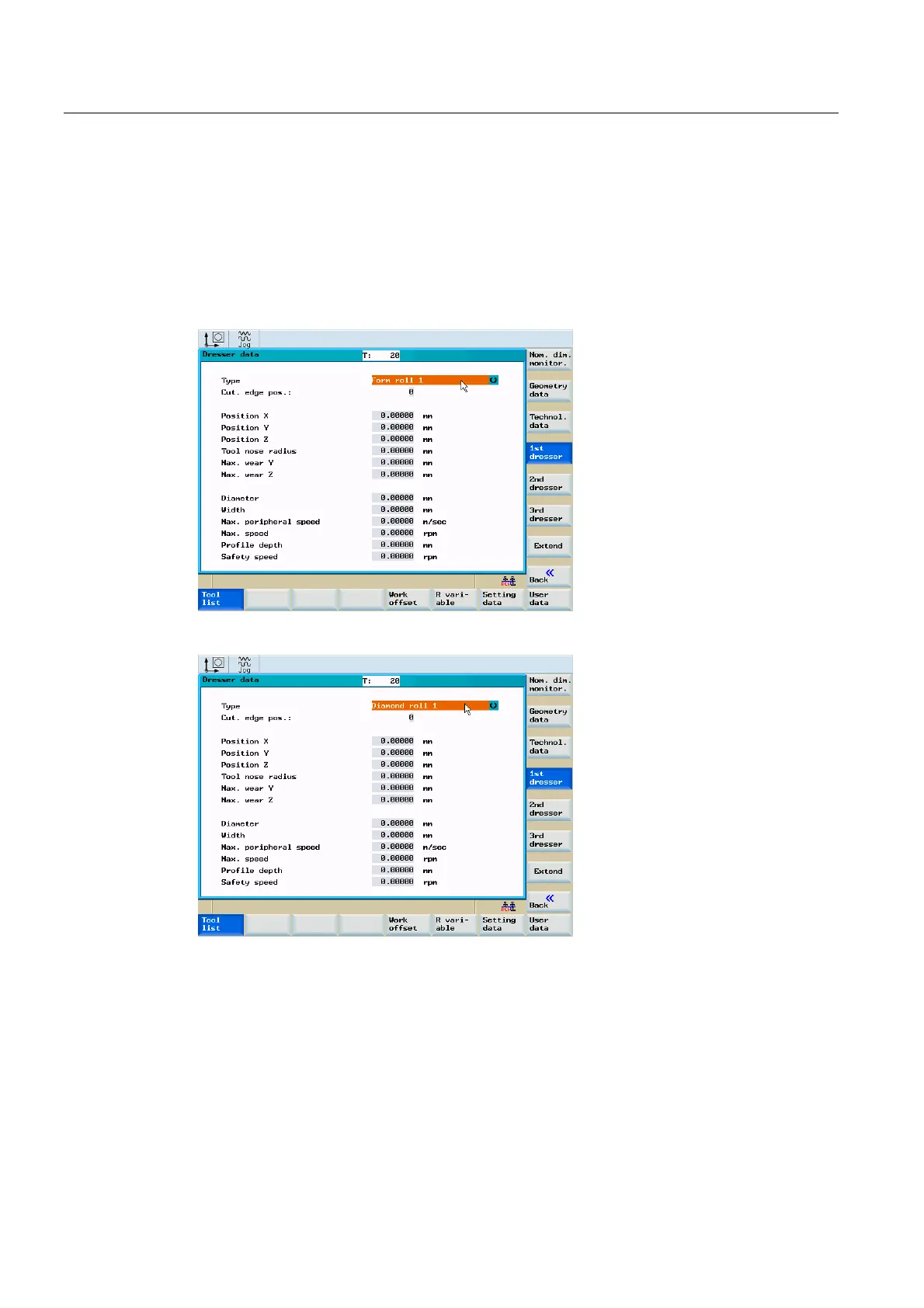

Figure 4-10 Forming roll
Figure 4-11 Diamond roll
