Preconditions:
● The module is defective and must be replaced.
● The control cabinet is in a no-voltage condition, all of the connectors and cables are labeled.
Removing
6SDFHUV
&XWRXWVIRU
ODWHUDOPRXQWLQJ

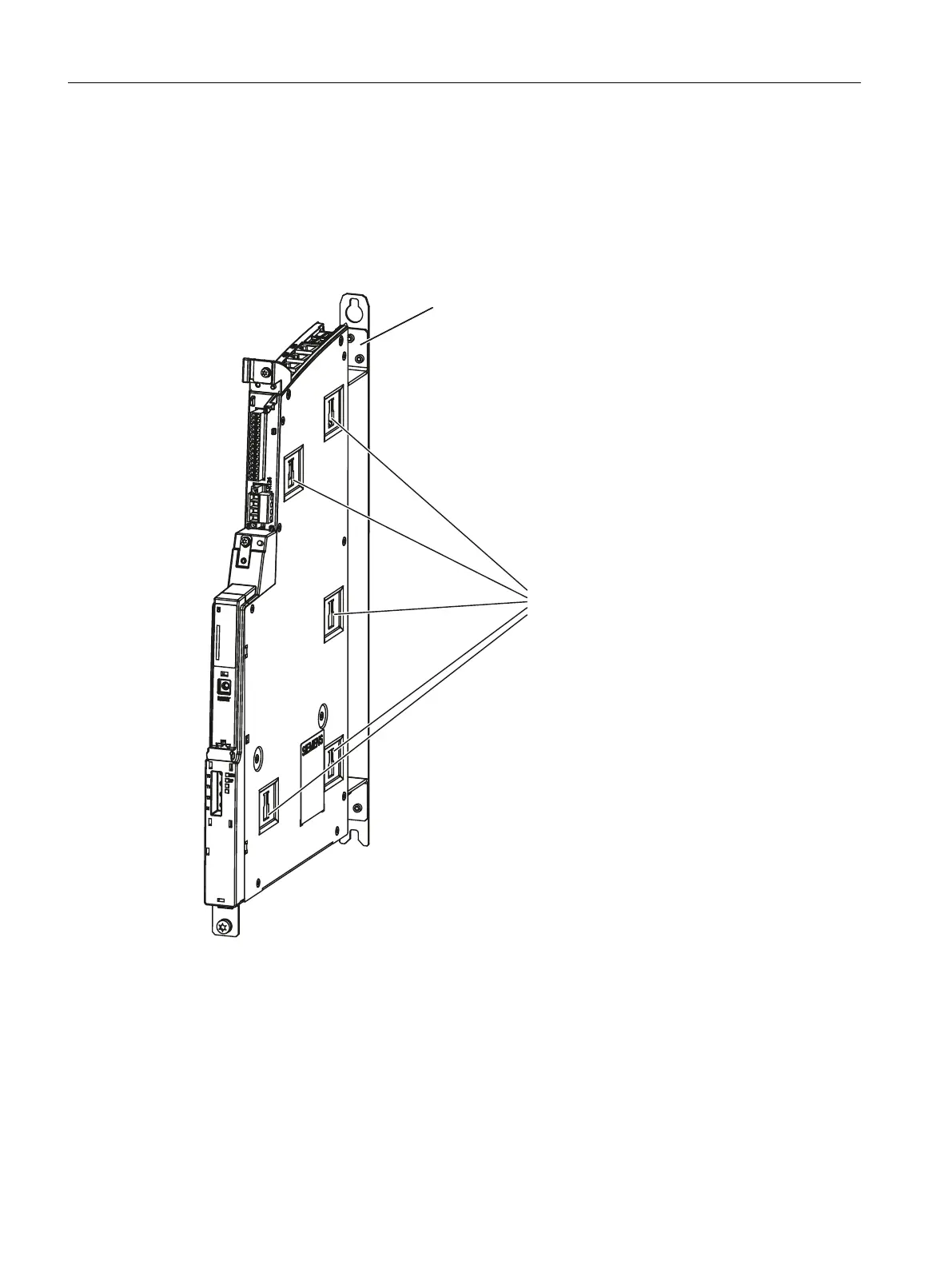

Figure 4-25 Mounting aids
Procedure:
1. Switch off the complete system, carefully checked that it is in a no-voltage condition and
lock it out so that it cannot be switched on without the appropriate authorization.
2. Access the control cabinet where the NX10.3 / NX15.3 is located.
3. Use a multimeter to check that the NX module really is in a no-voltage condition.
4. Open the cover of the NX module.
Service cases - hardware
4.7 Expansion modules NX10.3 / NX15.3
Software and hardware
120 Service Manual, 08/2018, 6FC5397-5DP40-6BA1

Siemens SINUMERIK 828D Series Specifications

General

Display	10.4" TFT color display
Operating System	Embedded Linux
Power Supply	24V DC
Protection Class	IP65 (front), IP20 (rear)
Control Unit Type	CNC
Interfaces	Ethernet, USB, RS232
Programming	ShopMill, ShopTurn, G-code
