Siemens SINUMERIK 828D Series User Manual

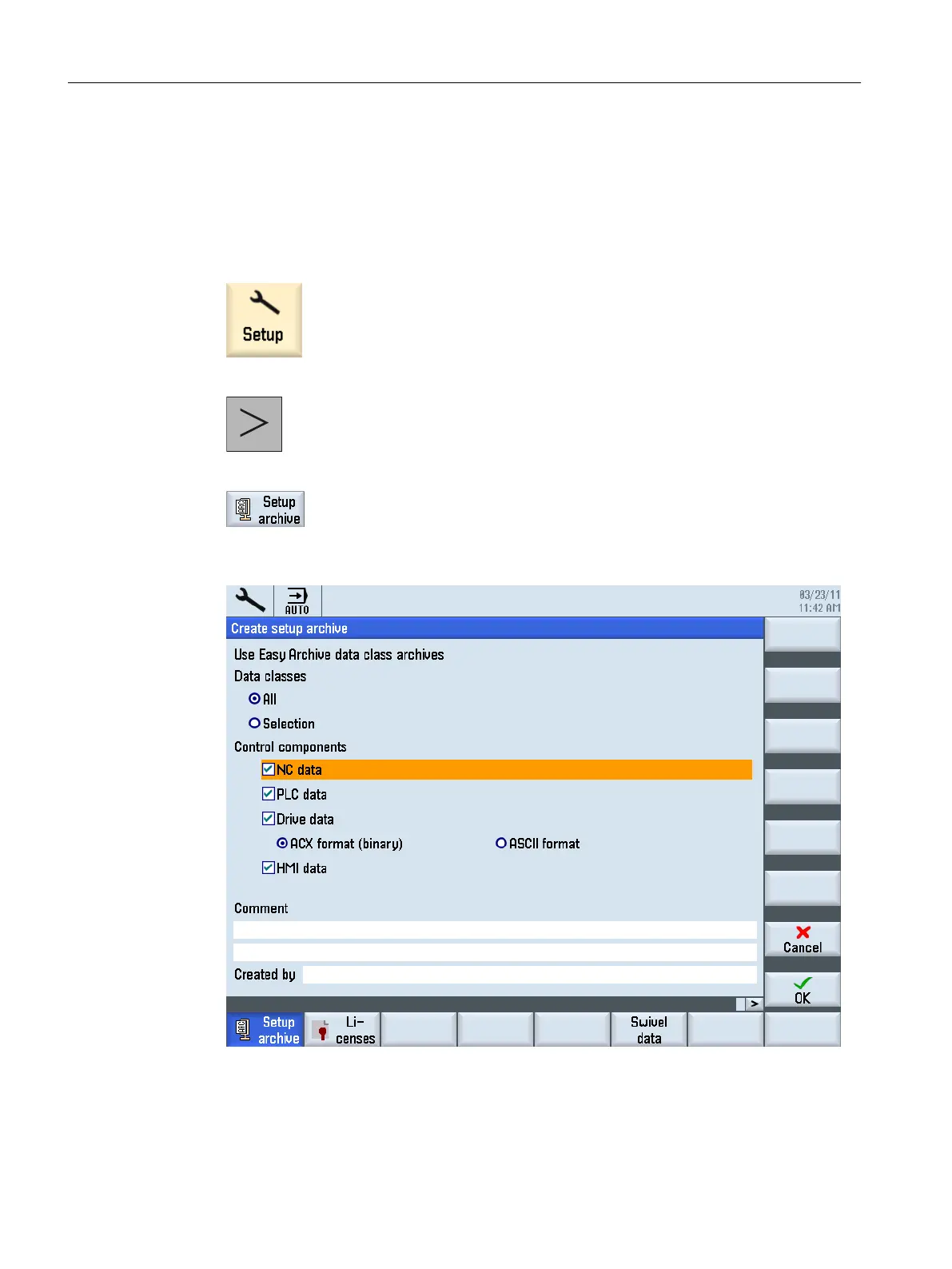

3.2.3 This is how you generate a setup archive on the system CompactFlash card
Generating an archive on the system CompactFlash Card
Procedure:
1. Select the "Startup" operating area.
2. Press the menu forward key.
3. Press the "Setup archive" softkey.
4. Activate "Create setup archive".
The "Create setup archive" window opens.
Service cases - software
3.2 Generating a commissioning archive
Software and hardware
40 Service Manual, 08/2018, 6FC5397-5DP40-6BA1

Siemens SINUMERIK 828D Series Specifications

General

Display	10.4" TFT color display
Operating System	Embedded Linux
Power Supply	24V DC
Protection Class	IP65 (front), IP20 (rear)
Control Unit Type	CNC
Interfaces	Ethernet, USB, RS232
Programming	ShopMill, ShopTurn, G-code
