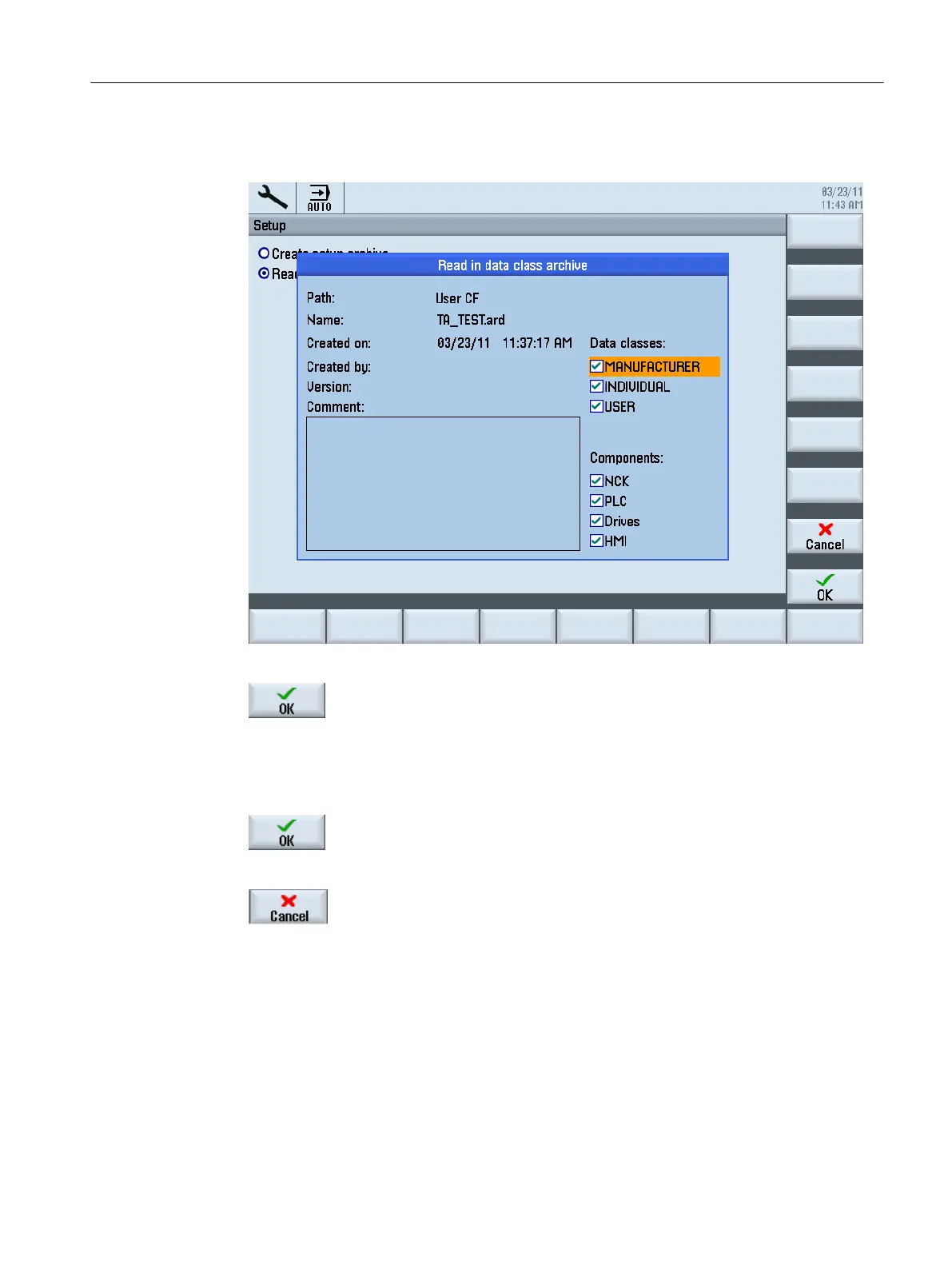

7. Select the required setup archive (ARD).
Example: User CF
8. Press "OK".
A query is displayed, here you can see the most important data of the selected archive to
be certain that it is OK.
9. Data is read in when pressing "OK".
10.In the case of errors or problems, import can be terminated by pressing the "Cancel" softkey.
Service cases - software
3.2 Generating a commissioning archive
Software and hardware
Service Manual, 08/2018, 6FC5397-5DP40-6BA1 39

Siemens SINUMERIK 828D Series Specifications

General

Display	10.4" TFT color display
Operating System	Embedded Linux
Power Supply	24V DC
Protection Class	IP65 (front), IP20 (rear)
Control Unit Type	CNC
Interfaces	Ethernet, USB, RS232
Programming	ShopMill, ShopTurn, G-code
