5. Release the strain relief of the Ethernet cables.
6. Remove the Ethernet cables from interface X2/X3 (port 1/port 2).
7. Release other cables (e.g. rotary switch cable or cables for digital inputs and outputs), if
available.
8. Remove the ground connection by releasing the grounding screw.
9. Release the machine control panel by removing the 4 standard Torx screws T20/M4.
10.Note the set address of DIL switch S1.
11.Note the settings of the handwheel pulses at DIL switch S2.
4.5.5 This is how you install the MCP interface PN
Installing
Procedure:
1. Set DIL switches S1 and S2 of the new module to what you previously noted down.
2. Mount the new machine control panel using the 4 standard Torx screws T20/M4.
3. Connect the ground connection to the grounding screw.
4. Reconnect other cables (e.g. for the rotary switch and for the digital inputs and outputs).
5. Reinsert the Ethernet cables at interface X2/X3 (port 1/port 2)
6. Re-establish the strain relief for the Ethernet cables.
7. Reconnect power supply X1.
8. Close the cabinet and switch-on the system again.

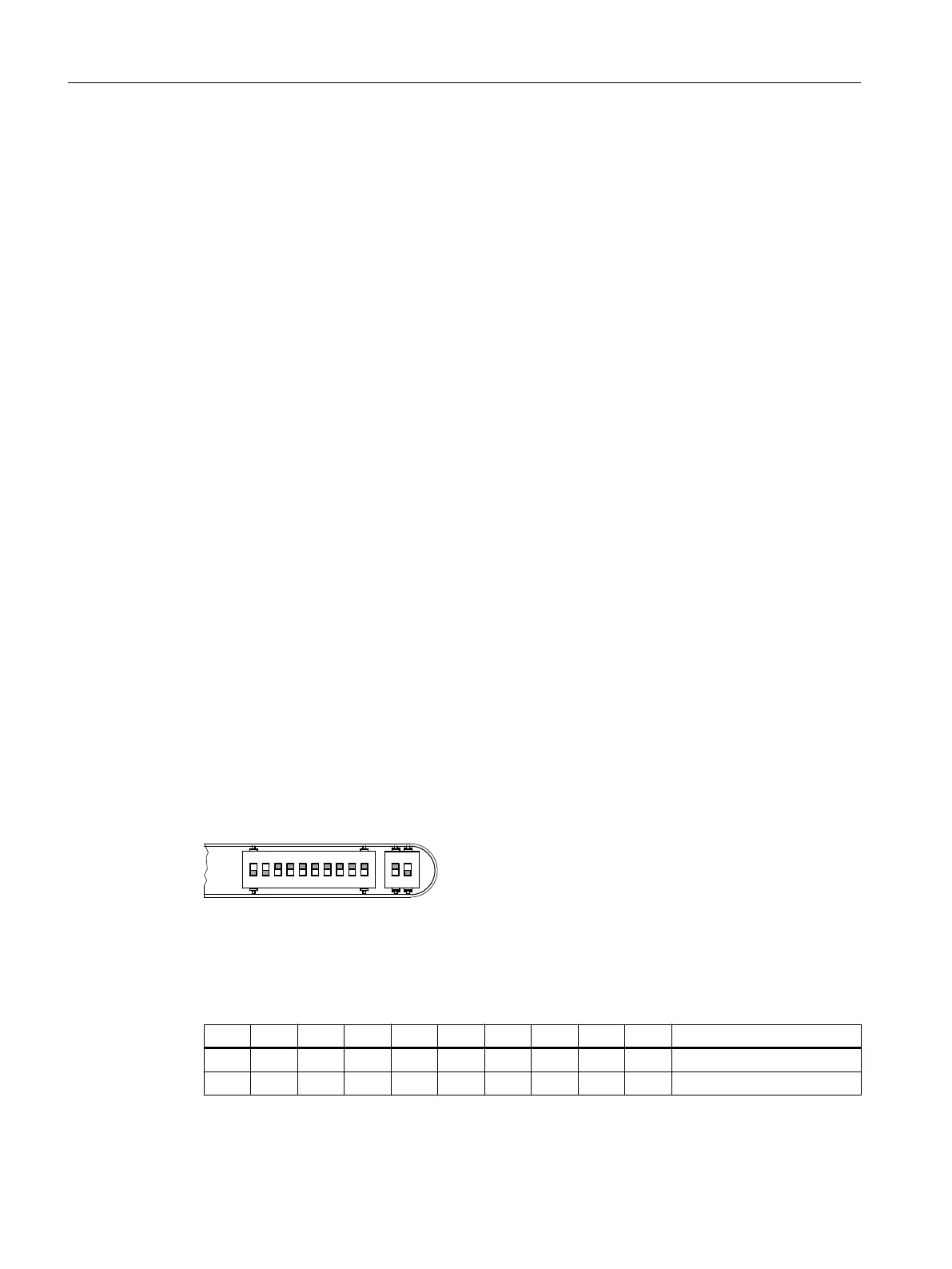

Switches S1, S2
The switches S1-1 to S1-8 define the PROFINET address of the machine control panel. In
SINUMERIK 828D, the address "64" must always be assigned to the MCP.
Switches S1-9 and S1-10 must be set to "ON".
1 2 3 4 5 6 7 8 9 10 Meaning
ON ON ON
OFF OFF OFF OFF OFF OFF OFF PROFINET address "64"
Service cases - hardware
4.5 Machine control panels
Software and hardware
98 Service Manual, 08/2018, 6FC5397-5DP40-6BA1
