4.9.8 This is how you install the CU310-2 PN
Installing
Procedure:
1. Place the Control Unit on the PM340.

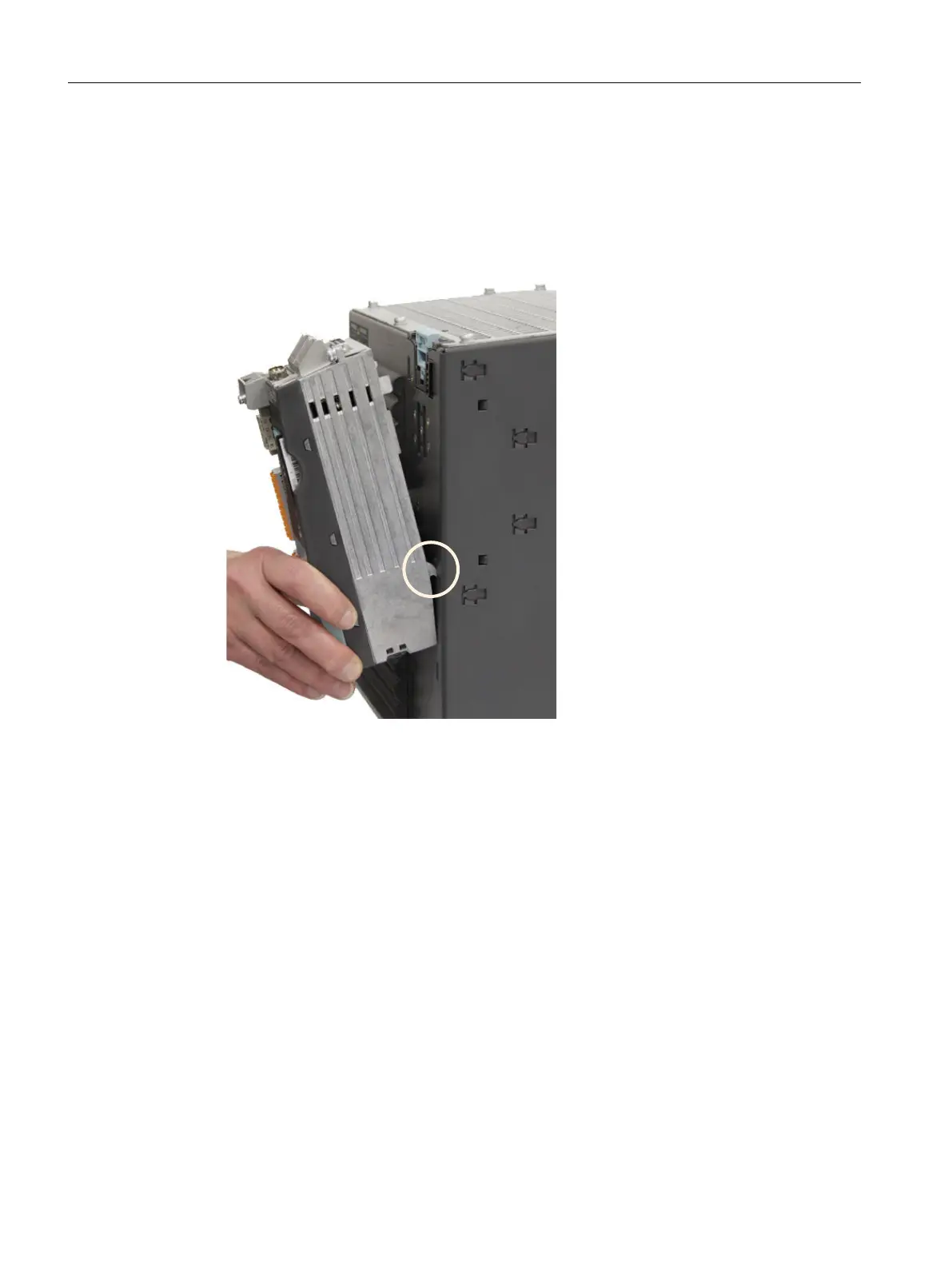

Figure 4-30 Mounting the CU310-2 PN on the PM340
2. Push the Control Unit back until it latches in the blue locking latch.
3. Reconnect the protective conductor connection of the CU310-2 PN.
4. Insert the DRIVE-CLiQ cable that was previously withdrawn into socket X100.
5. Insert all other cables, if available.
6. Reconnect the electronics power supply X124.
7. Now check that all of the cables have been reconnected.
8. Insert the CompactFlash card.
9. Close the cabinet and switch-on the system again.
