9. Press the blue locking latch downward (see arrow).

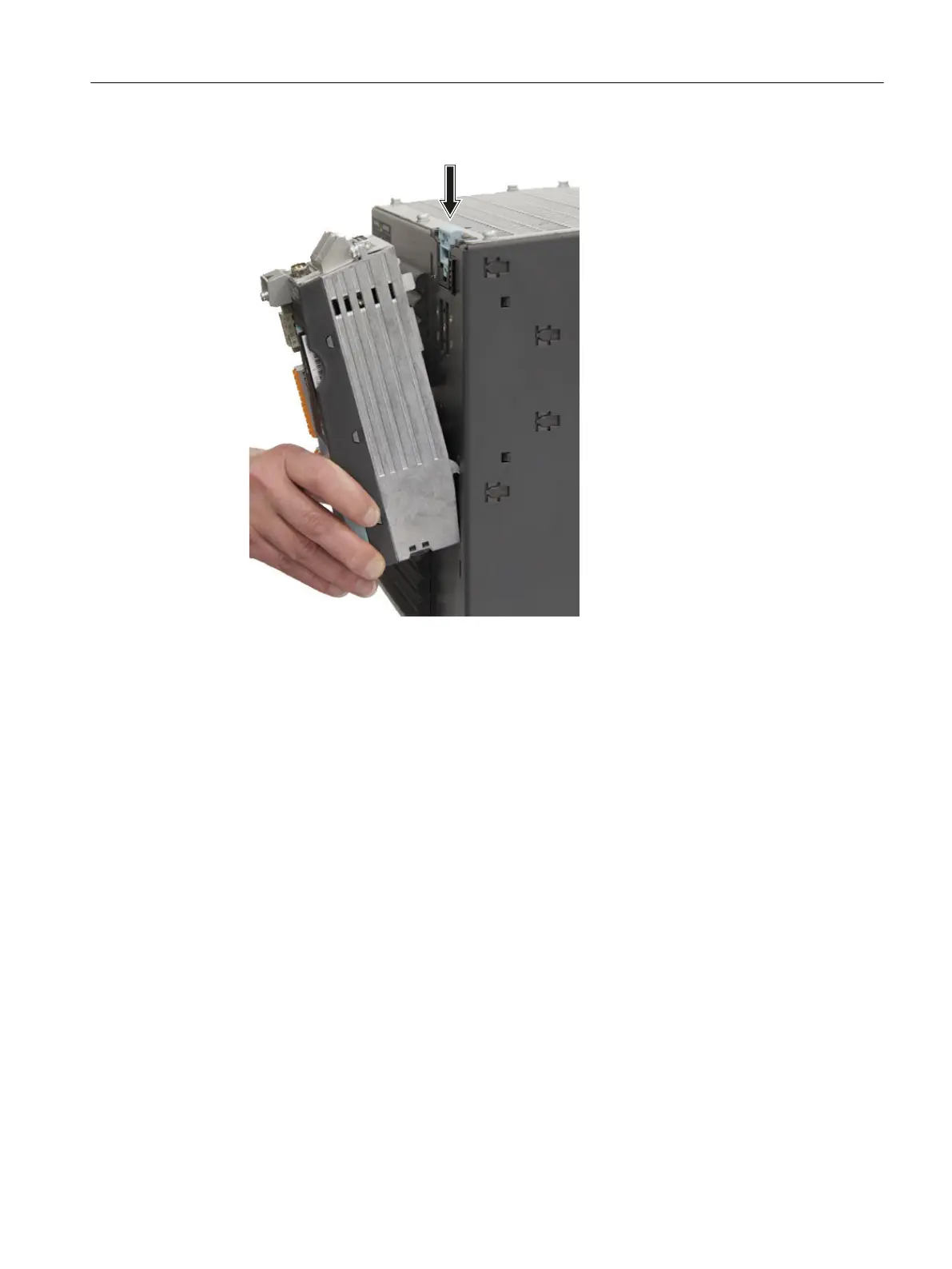

Figure 4-29 Removing the CU310-2 PN from the PM340
10.Remove the Control Unit toward the front.
11.Remove the CompactFlash card.
Service cases - hardware
4.9 Control Unit CU320-2 PN and CU310-2 PN
Software and hardware
Service Manual, 08/2018, 6FC5397-5DP40-6BA1 135
