4.18.8 This is how you remove a TM120 and install it again
Removing
Procedure:
1. First shift the mounting slide downward at the lug to release the interlocking with the
mounting rail.
2. Then swivel the component toward the front so that you can remove it upward from the
mounting rail.
3XVKWKHOXJGRZQZDUG
0RXQWLQJVOLGH
6ZLYHOWKHPRGXOHWRZDUG
WKHIURQW

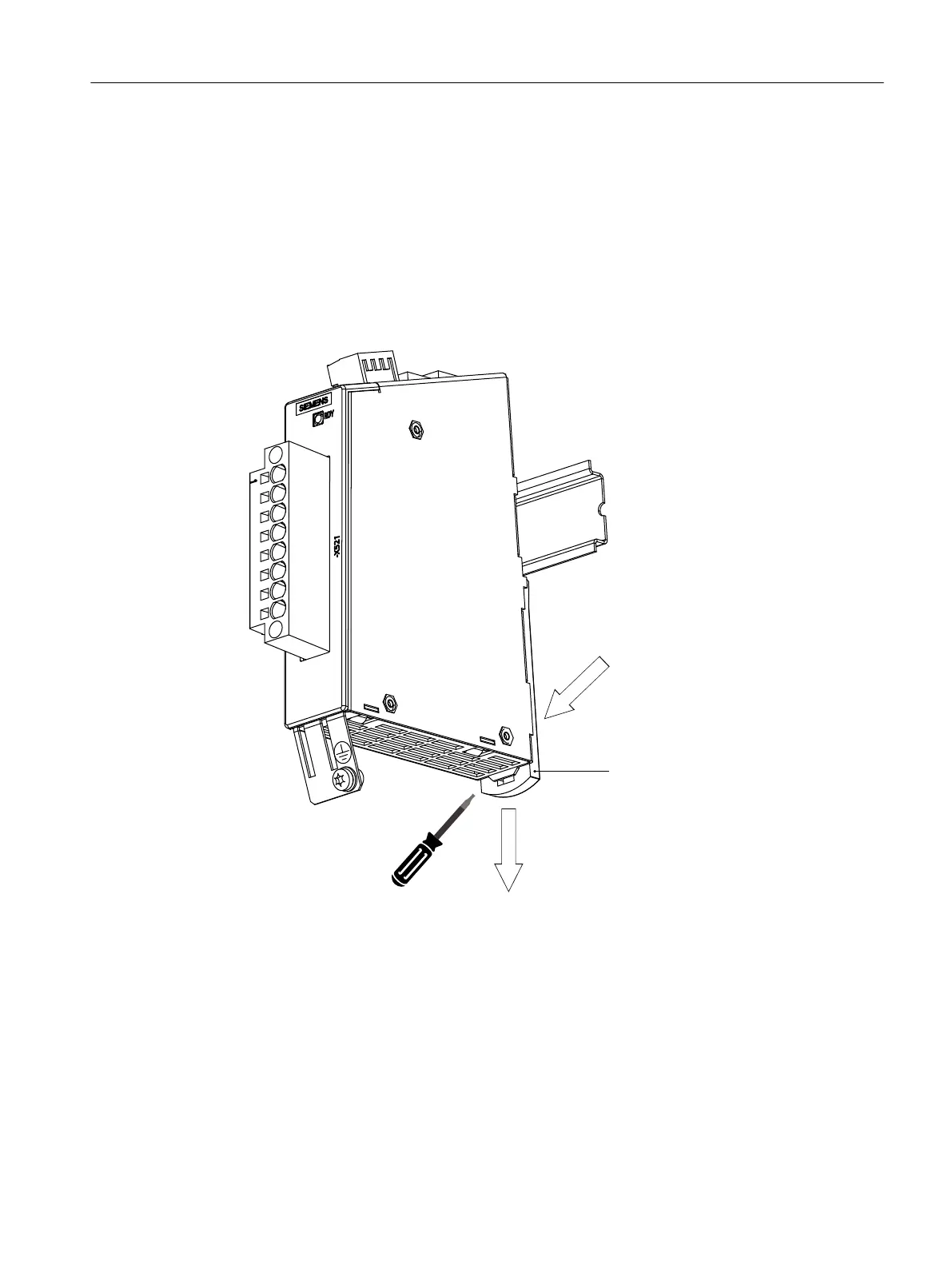

Figure 4-65 Removing the TM120
Installing
Procedure:
1. Slightly tilt the component backward and attach it to the mounting rail using the catch.
2. Swivel the component on the mounting rail until you hear the mounting slide at the rear
latch into position.
3. Slide the component along the mounting rail to either the left or right up to its final position.
Service cases - hardware
4.18 Terminal Modules
Software and hardware
Service Manual, 08/2018, 6FC5397-5DP40-6BA1 227
