4.16.2 SMC10/SMC20 connections
Connections
3URWHFWLYHFRQGXFWRU
FRQQHFWLRQ01P
;
;
;
5'<
X500 DRIVE-CLiQ
X520 Encoder system interface
X524 Electronics power supply

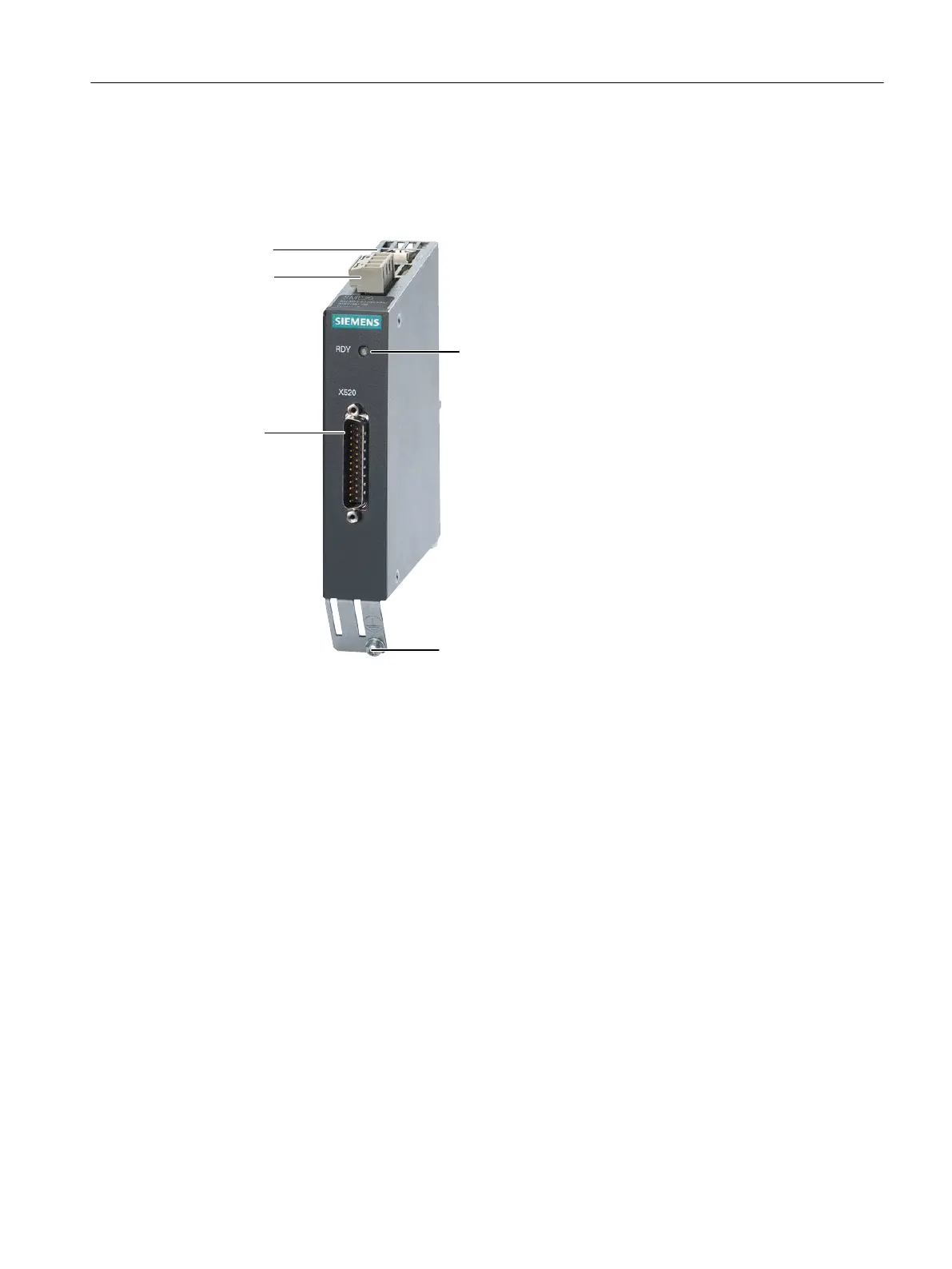

Figure 4-50 SMC10/SMC20 connections
4.16.3 This is how you remove an SMC10/SMC20
Overview
The activities that must be taken into account when replacing an SMC10 or SMC20 are
subsequently described.
If the SMC10 or SMC20 has a hardware defect, then it must be replaced by an identical module.
Preconditions:
● The module is defective and must be replaced.
● The control cabinet is in a no-voltage condition, all of the connectors and cables are labeled.
Service cases - hardware
4.16 Sensor Modules Cabinet
Software and hardware
Service Manual, 08/2018, 6FC5397-5DP40-6BA1 203

Siemens SINUMERIK 828D Series Specifications

General

Display	10.4" TFT color display
Operating System	Embedded Linux
Power Supply	24V DC
Protection Class	IP65 (front), IP20 (rear)
Control Unit Type	CNC
Interfaces	Ethernet, USB, RS232
Programming	ShopMill, ShopTurn, G-code
