4.19.6 This is how you mount a DME20
Mounting
Procedure:
1. Place the drilling pattern on the mounting surface.
The mounting surfaces must be bare metal.

 

RU0
0RXQWLQJVXUIDFH

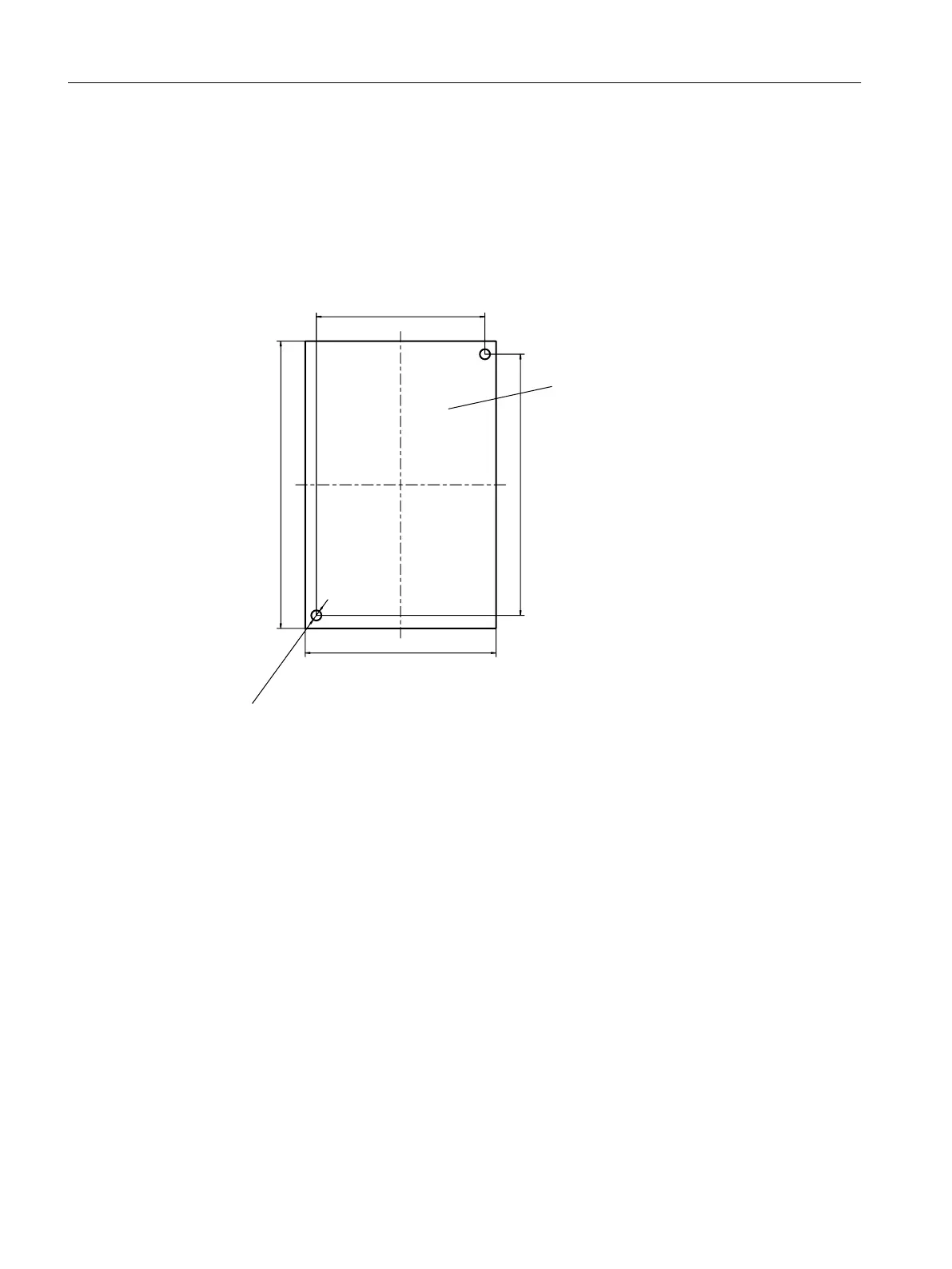

Figure 4-69 DME20 dimensions
2. Drill the holes with Ø5.3 or M5 threads.
3. Tighten the component with a tightening torque of 6.0 Nm.
Service cases - hardware
4.19 Hub Modules
Software and hardware
232 Service Manual, 08/2018, 6FC5397-5DP40-6BA1

Siemens SINUMERIK 828D Series Specifications

General

Display	10.4" TFT color display
Operating System	Embedded Linux
Power Supply	24V DC
Protection Class	IP65 (front), IP20 (rear)
Control Unit Type	CNC
Interfaces	Ethernet, USB, RS232
Programming	ShopMill, ShopTurn, G-code
