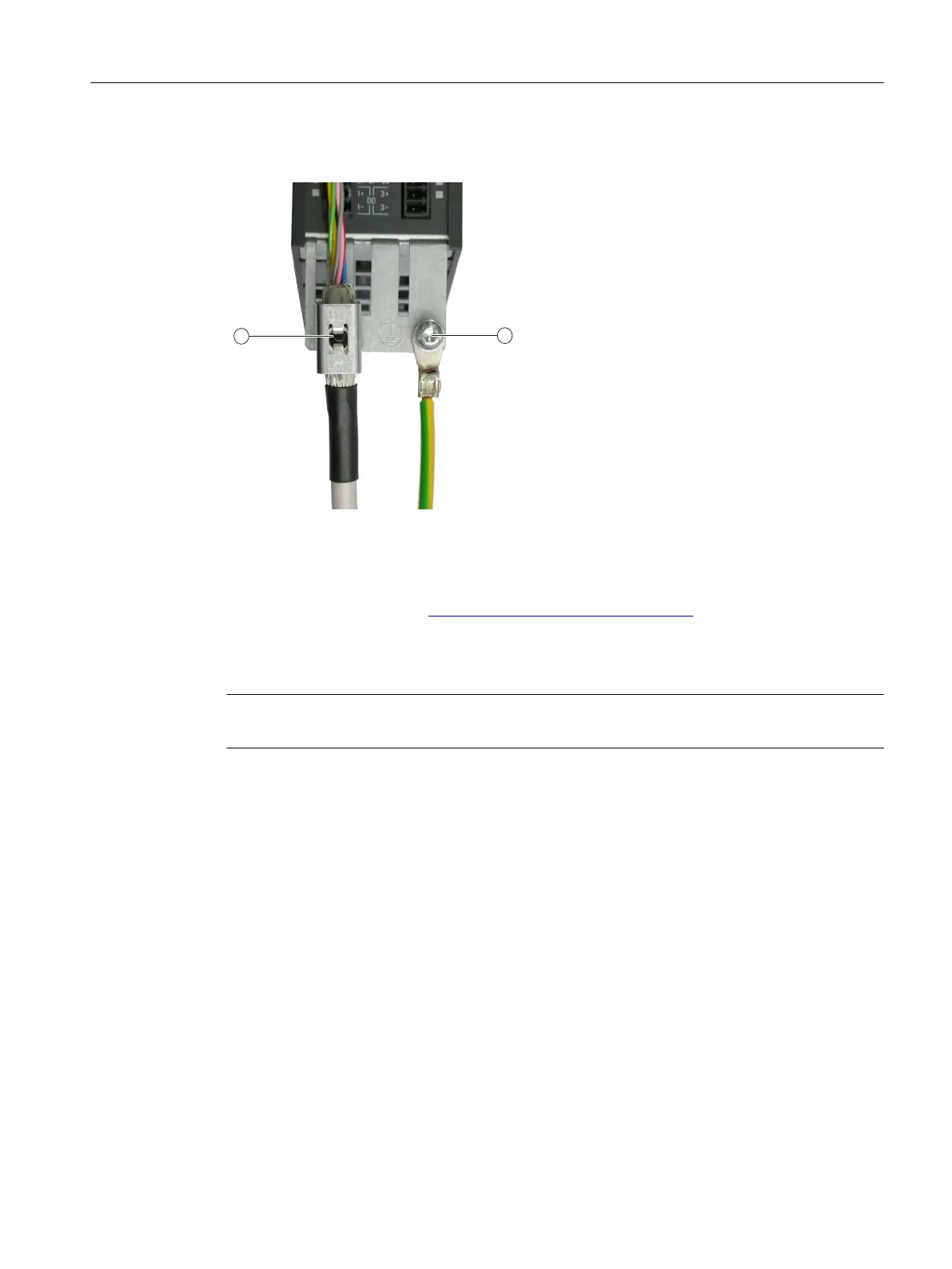

The following figure shows a 50 mm component as an example:
1
2
① Shield contact
② Protective conductor connection
Figure 4-26 Example: Connections
Shield connection terminal (http://www.weidmueller.com/int/home)from Weidmüller
Type: KLBLUE CO 1
Article No.: 17533 11001
Note
Only use screws with a permissible insertion length of 4–6 mm.
Service cases - hardware
4.8 Installing SINAMICS components
Software and hardware
Service Manual, 08/2018, 6FC5397-5DP40-6BA1 123

Siemens SINUMERIK 828D Series Specifications

General

Display	10.4" TFT color display
Operating System	Embedded Linux
Power Supply	24V DC
Protection Class	IP65 (front), IP20 (rear)
Control Unit Type	CNC
Interfaces	Ethernet, USB, RS232
Programming	ShopMill, ShopTurn, G-code
