Procedure:
1. Use a suitable tool to open the protective cover of the component to be connected

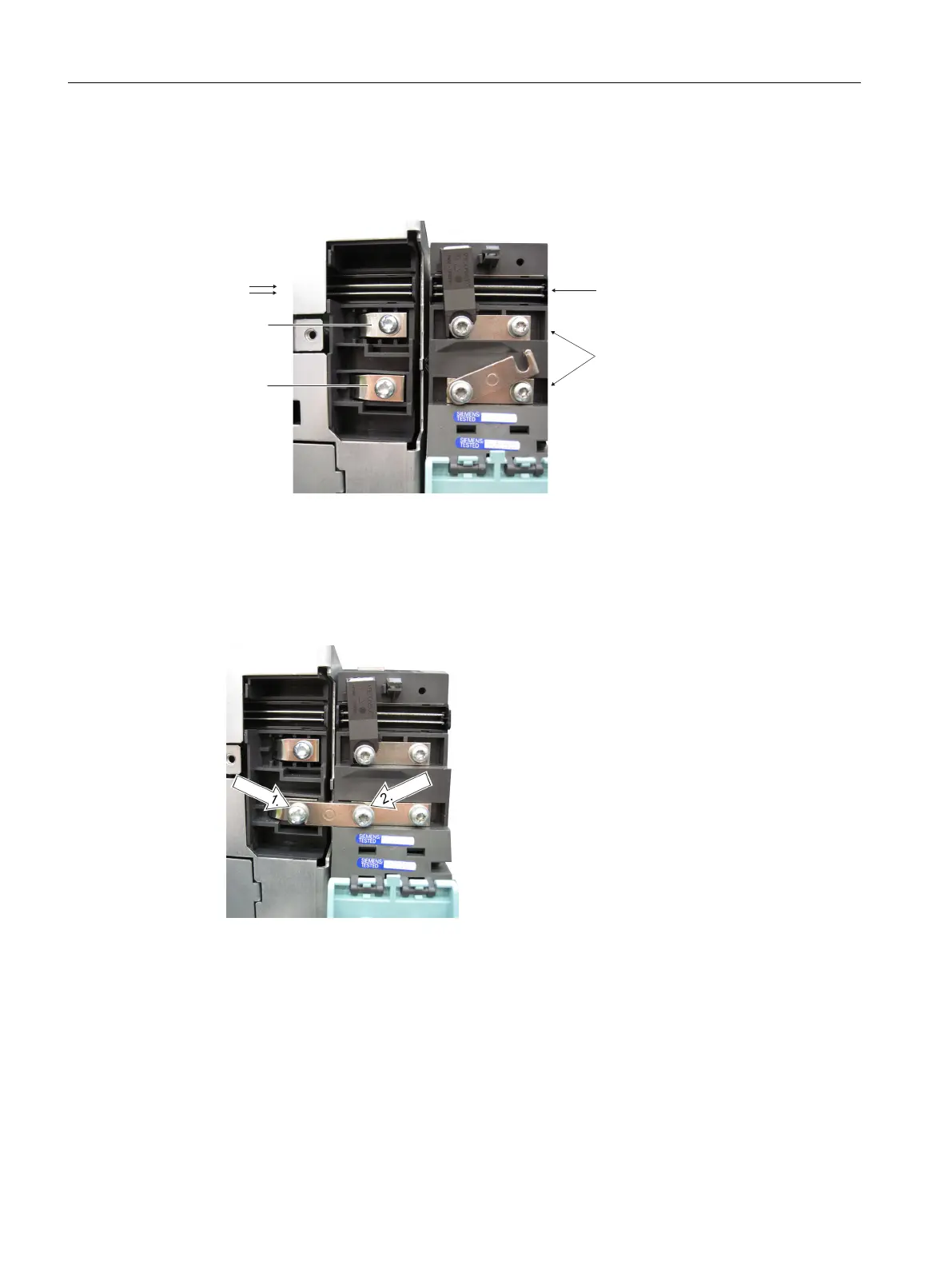

2. Remove the DC link side cover at the connection location.
9EXVEDUV
'&OLQNEXVEDUV
0RWRU0RGXOH
%RRNVL]H&RPSDFW
6&RPEL

0
'&3
'&1
3. Use the following tool to install the DC link busbar:
Screwdriver: Torx T20 or slotted 1.2 x 6
Tightening torque: 1.8 Nm
4. Install the lower DC link busbar as shown in the following diagram:
