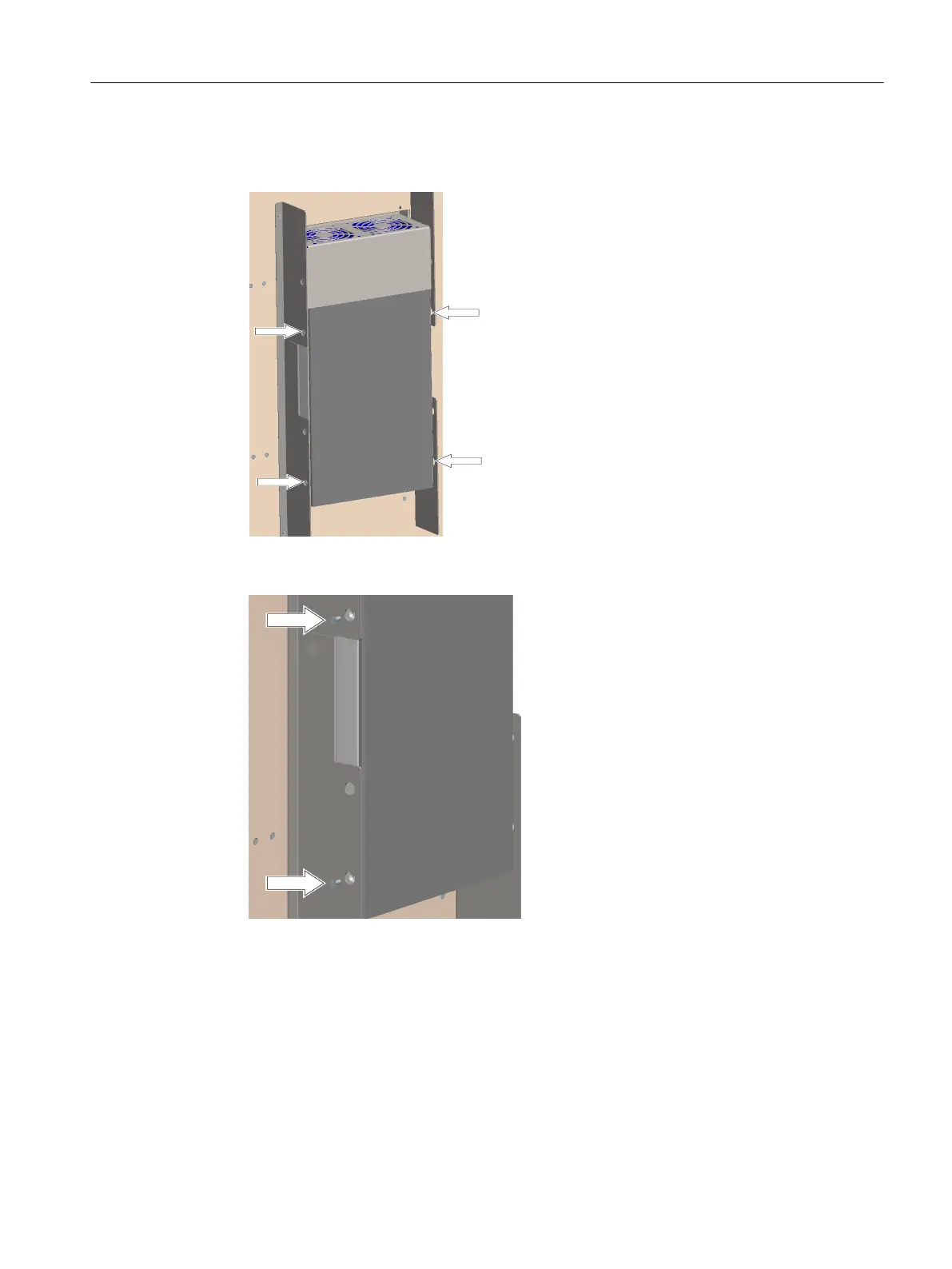

Procedure:
1. The screws are accessible from the rear.
2. To remove the air baffle plate on the S120 Combi, release the fixing screws through the
holes in the reinforcement plates.
Screws: Slotted or cross slot M4 x 10, DIN EN ISO 7046-1/2
Service cases - hardware
4.10 SINAMICS S120 Combi
Software and hardware
Service Manual, 08/2018, 6FC5397-5DP40-6BA1 163
