3. Carefully withdraw the fan.
4. Release the connector before you withdraw it.
Installing the fan
Procedure:

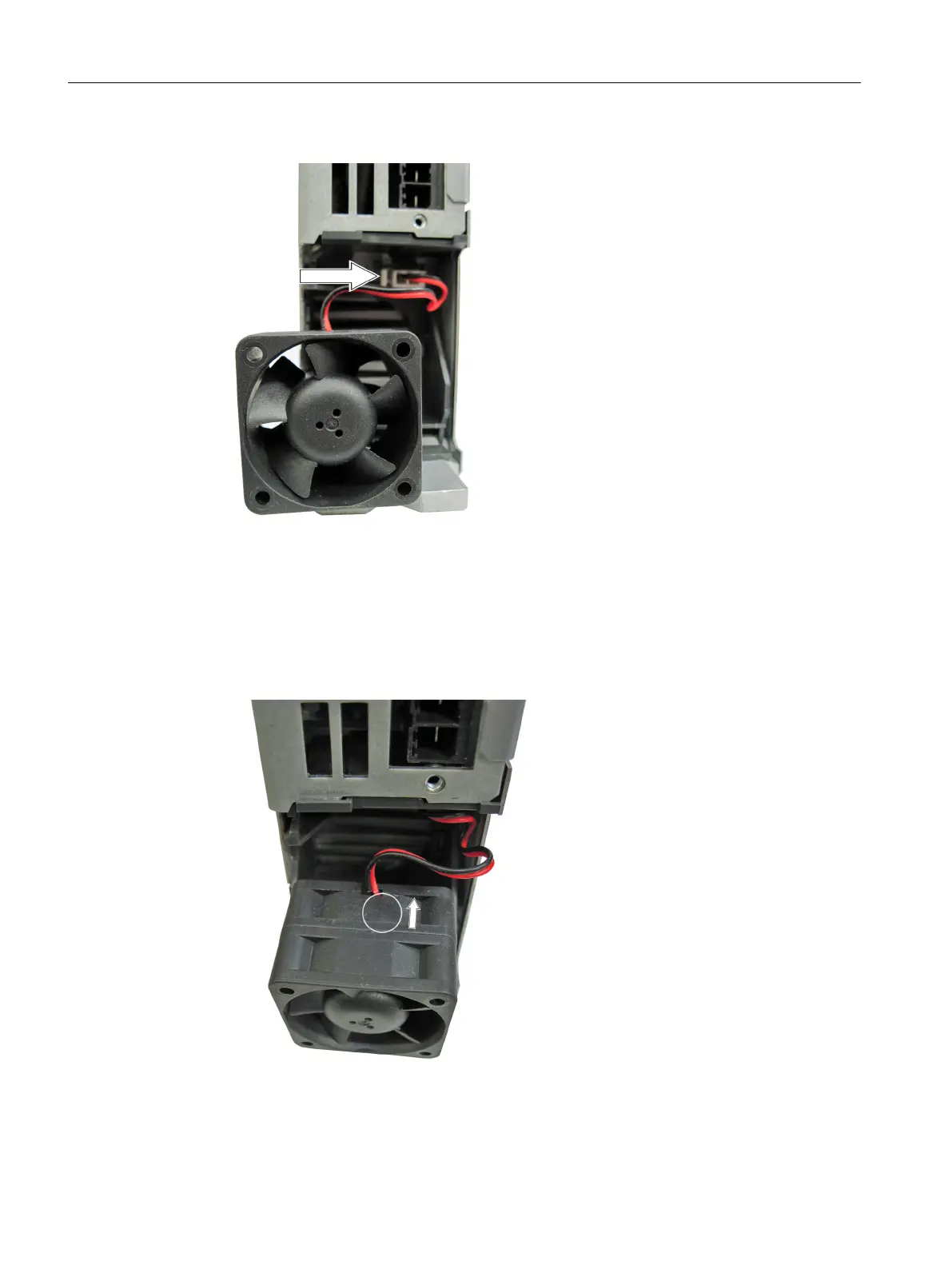

1. Before installing the fan, observe the direction of the airflow: The arrow on the fan must
point toward the cooling ribs.
2. Insert the cable connector until it latches into place.
Service cases - hardware
4.11 Motor Module Booksize Compact format
Software and hardware
172 Service Manual, 08/2018, 6FC5397-5DP40-6BA1
