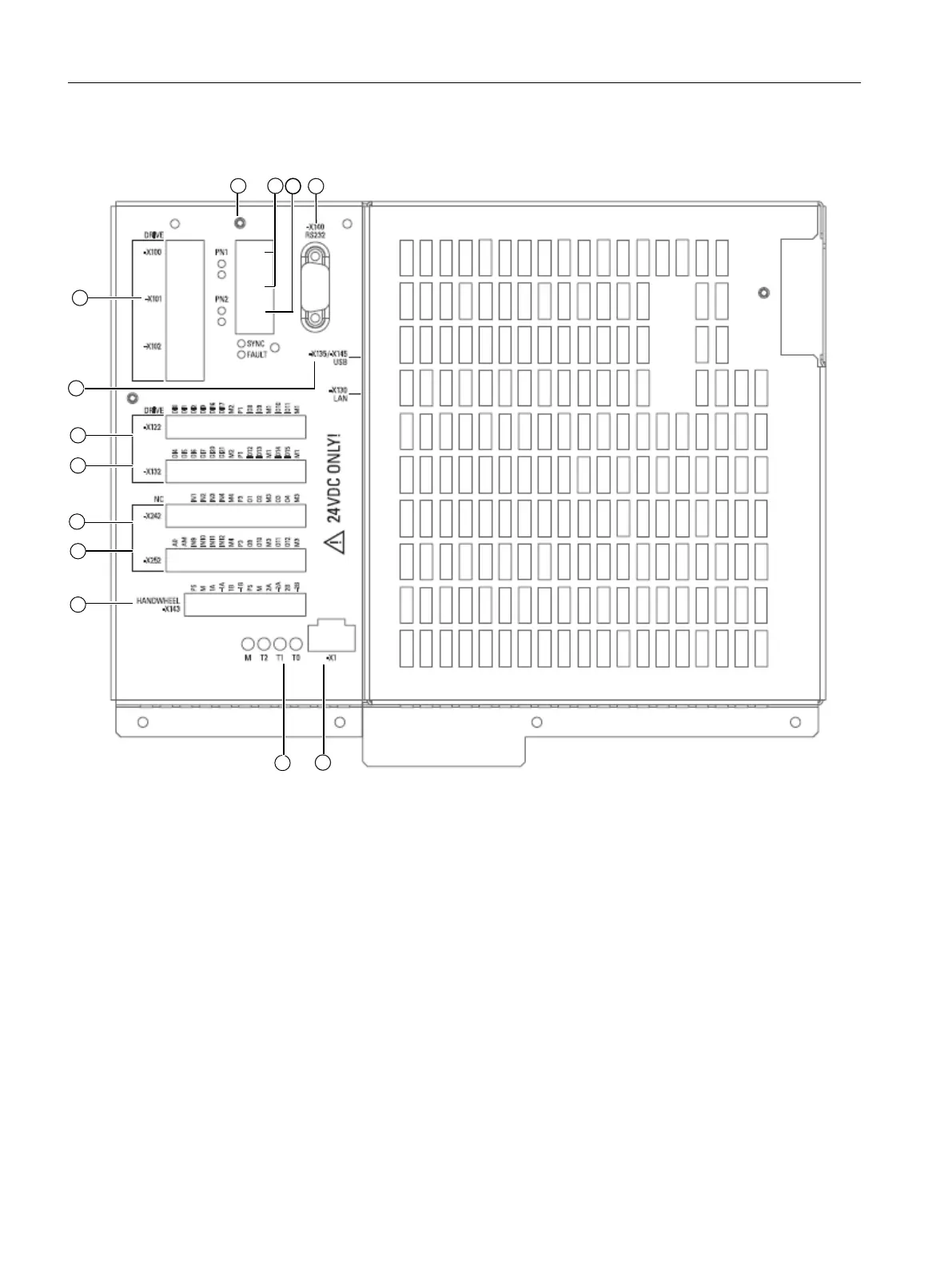

Rear of the PPU














①② X122, X132 Digital inputs/outputs, drive
③④ X242, X252 Digital inputs/outputs for NC; control of the analog spindle (X252)
⑤ X143 Handwheels
⑥ M, T2, T1, T0 Measuring sockets
⑦ X1 Power supply
⑧ X135, X145 USB interface: for MCP 310 USB, MCP 483 USB, MCP 416 USB and for service
⑨ X130 Ethernet LAN
⑩ PN 1, PN 2 PLC I/O Interface
⑪ SYNC, FAULT Status LED
⑫ X100, X101, X102 DRIVE-CLiQ interfaces
⑬ X140 Serial interface RS232
Figure 2-4 Interfaces at the rear of the PPU
System description
2.2 PPU versions
Software and hardware
26 Service Manual, 08/2018, 6FC5397-5DP40-6BA1

Siemens SINUMERIK 828D Series Specifications

General

Display	10.4" TFT color display
Operating System	Embedded Linux
Power Supply	24V DC
Protection Class	IP65 (front), IP20 (rear)
Control Unit Type	CNC
Interfaces	Ethernet, USB, RS232
Programming	ShopMill, ShopTurn, G-code
