Siemens SINUMERIK 828D Series User Manual

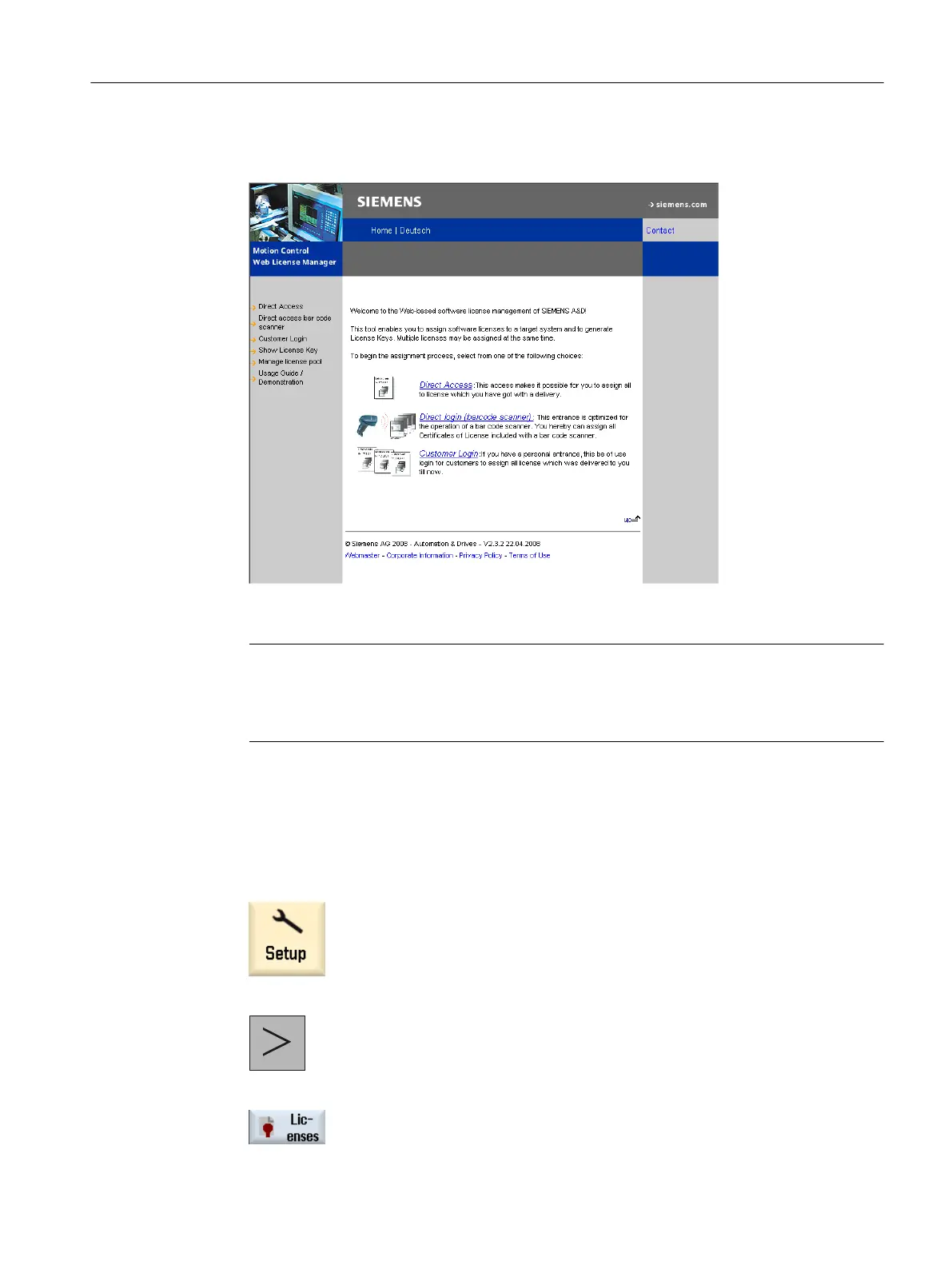

6. Log on via "Direct access".
Follow additional instructions in the Web License Manager:
7. After completing the assignment process, enter the license key displayed in the Web
License Manager into the "Licensing" dialog box in SINUMERIK Operate.
Note
License key via e-mail
If you have an e-mail address, you have the option (checkbox) of receiving the license key
by e-mail.
Entering the license key
The newly purchased license key is entered into the control.
Procedure:
1. Select the "Start-up" operating area.
2. Press the menu forward key.
3. Press the "Licenses" softkey.
Service cases - software
3.6 Licensing
Software and hardware
Service Manual, 08/2018, 6FC5397-5DP40-6BA1 67

Siemens SINUMERIK 828D Series Specifications

General

Display	10.4" TFT color display
Operating System	Embedded Linux
Power Supply	24V DC
Protection Class	IP65 (front), IP20 (rear)
Control Unit Type	CNC
Interfaces	Ethernet, USB, RS232
Programming	ShopMill, ShopTurn, G-code
