Siemens SINUMERIK 828D Series User Manual

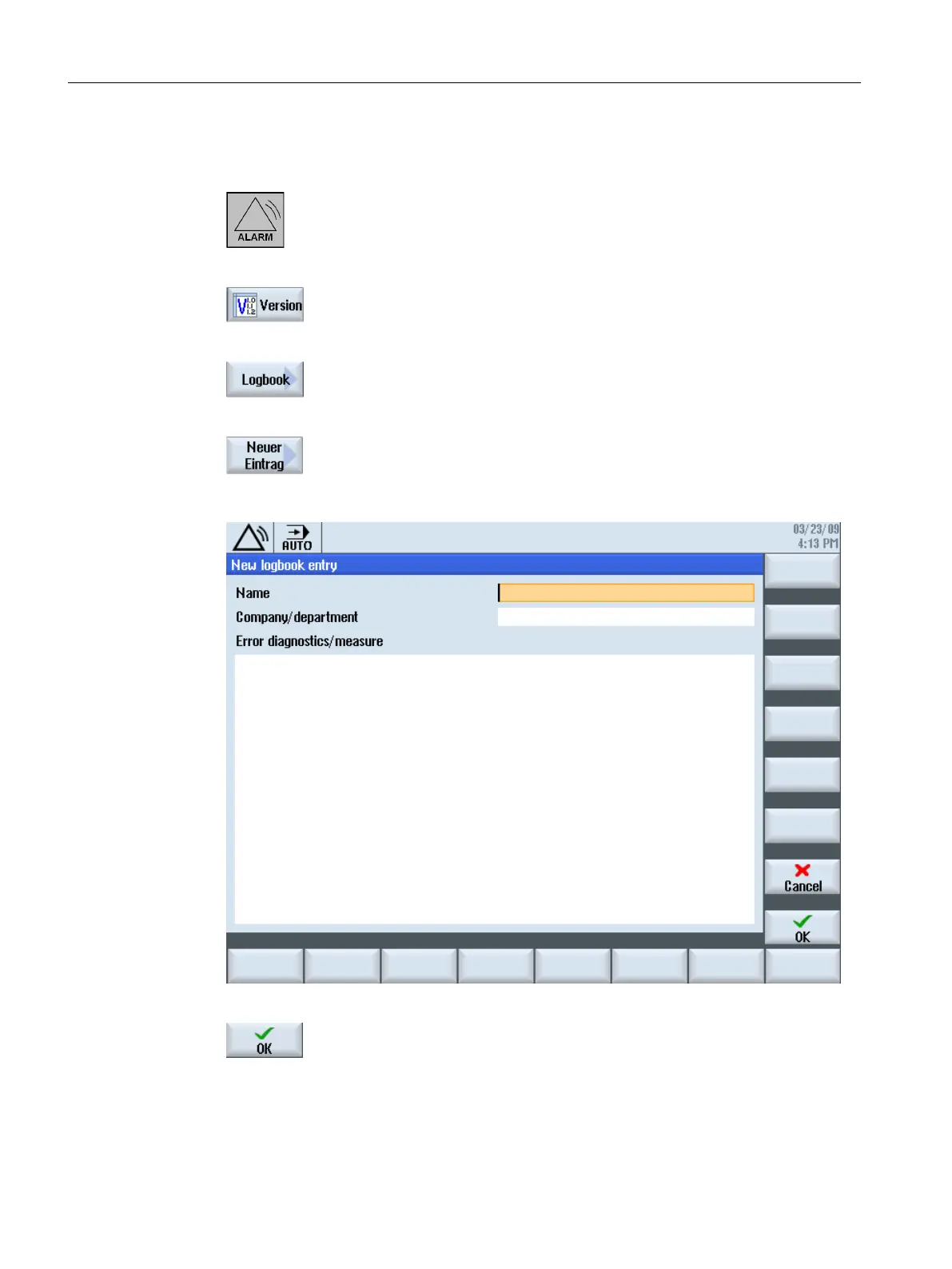

To make a logbook entry, proceed as follows:
1. Select the "Diagnostics" operating area using the following key:
2. Press the "Version" softkey.
3. Press the "Logbook" softkey.
4. Press the "New entry" softkey in order to make an entry in the logbook.
Complete the fields for the new logbook entry:
5. Press the "OK" softkey to save an entry in the logbook.
Service cases - software
3.7 Machine registration
Software and hardware
74 Service Manual, 08/2018, 6FC5397-5DP40-6BA1

Siemens SINUMERIK 828D Series Specifications

General

Display	10.4" TFT color display
Operating System	Embedded Linux
Power Supply	24V DC
Protection Class	IP65 (front), IP20 (rear)
Control Unit Type	CNC
Interfaces	Ethernet, USB, RS232
Programming	ShopMill, ShopTurn, G-code
