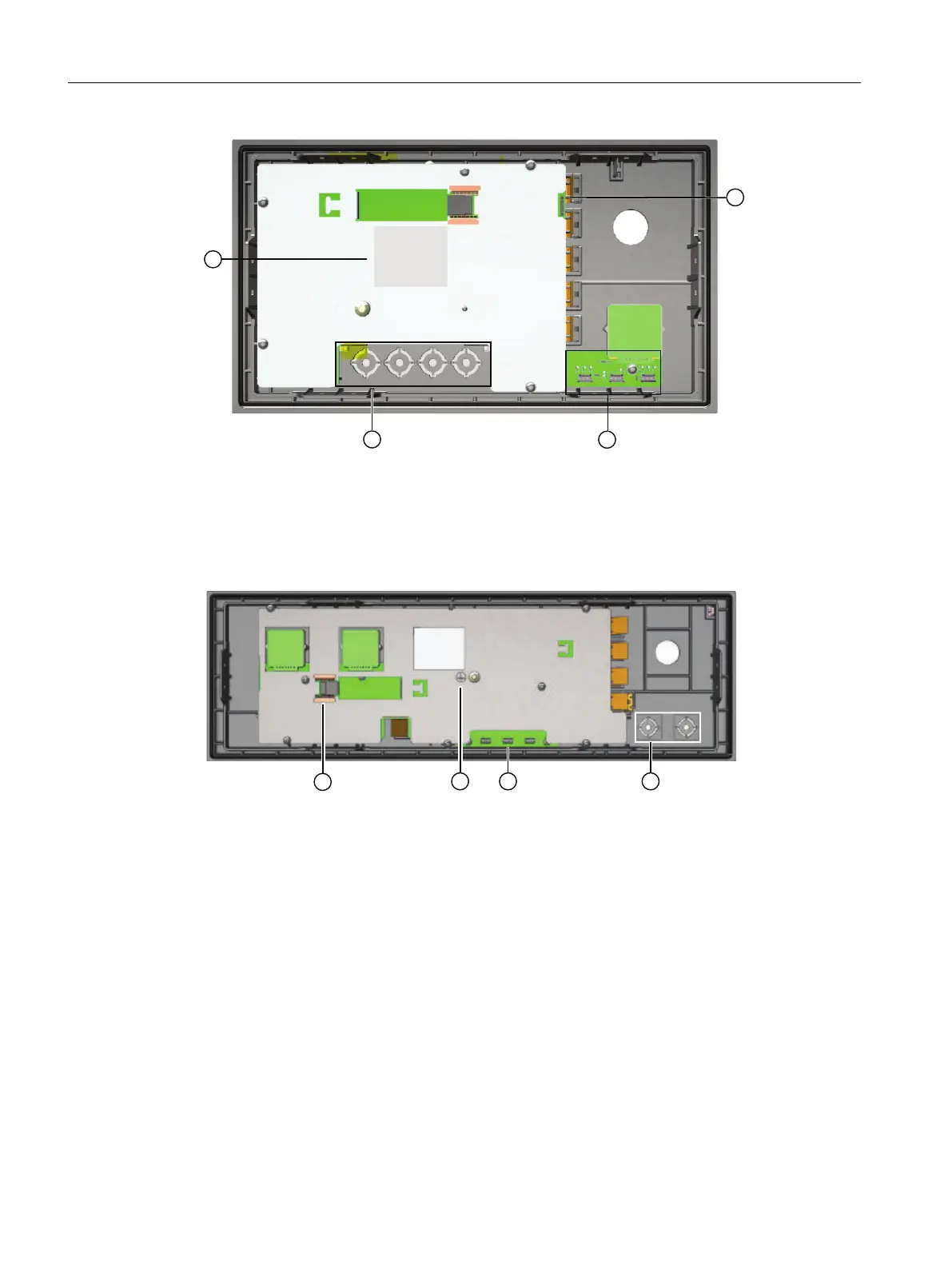

① Interface X51, X52, X55
② Protective conductor connection
③ Slots for control devices (d = 16 mm)
④ USB connection for communication with the PPU
Figure 4-5 MCP 310 USB interfaces


0&386%
① USB connection for communication with the PPU
② Protective conductor connection
③ Slots for control devices (d = 16 mm)
④ Interface X51, X52, X55
Figure 4-6 MCP 483 USB interfaces
Service cases - hardware
4.5 Machine control panels
Software and hardware
94 Service Manual, 08/2018, 6FC5397-5DP40-6BA1

Siemens SINUMERIK 828D Series Specifications

General

Display	10.4" TFT color display
Operating System	Embedded Linux
Power Supply	24V DC
Protection Class	IP65 (front), IP20 (rear)
Control Unit Type	CNC
Interfaces	Ethernet, USB, RS232
Programming	ShopMill, ShopTurn, G-code
