Service cases - hardware
4.5 I/O modules
Hardware and Software
106 Service Manual, 03/2011, 6FC5397-5DP40-0BA0
LEDs at port 1 and port 2
There are 2 LEDs at port 1 and port 2 for diagnostics of the PLC I/O interfaces based on
PROFINET.
\HOORZ
JUHHQ

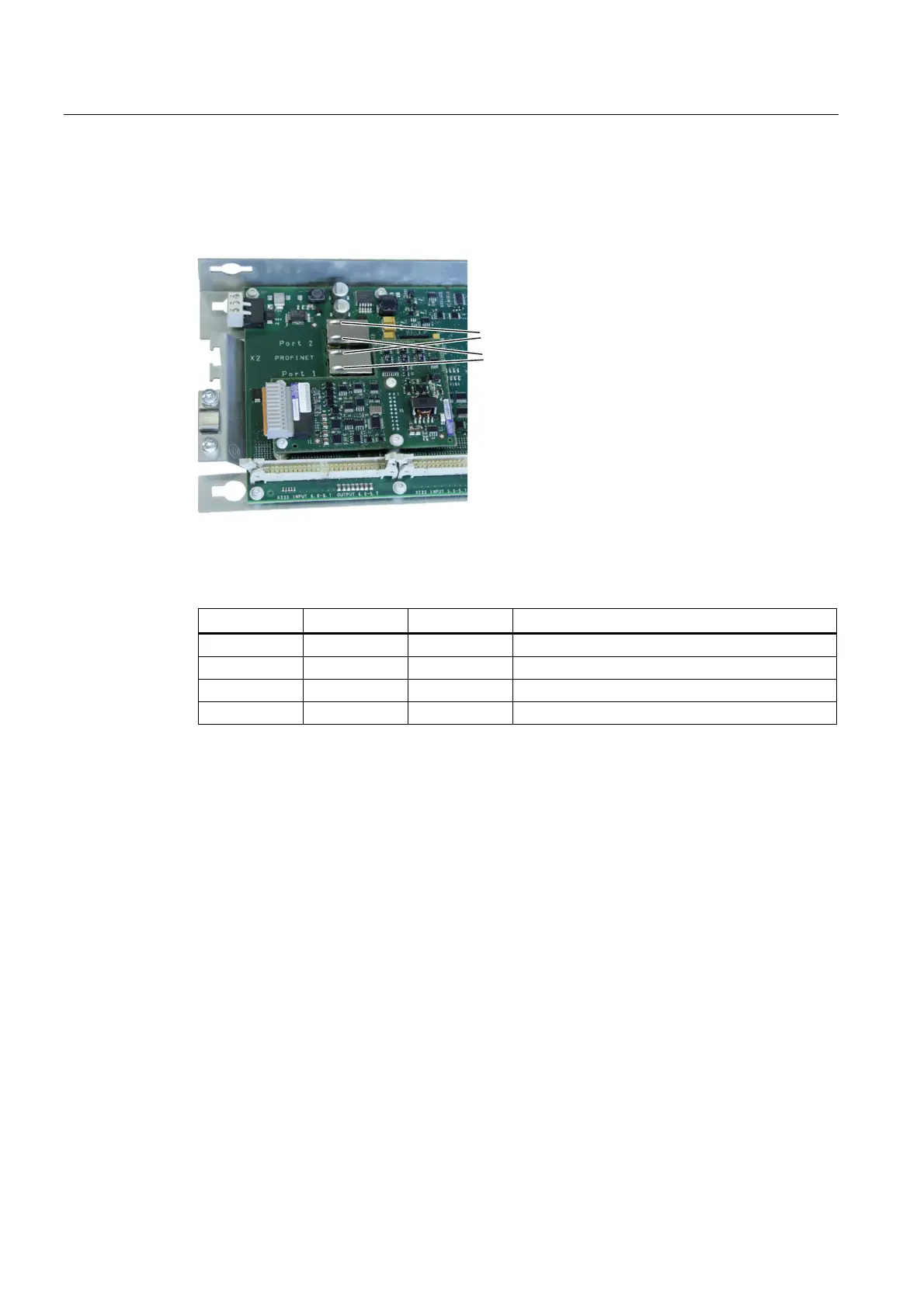

Figure 4-17 Port 1 and port 2
LED for communication at the RJ45 connector.
Name Color State Meaning
Link Green ON 100 MBit link available
OFF Missing or faulty link
Activity Yellow ON Sending or receiving
OFF No activity

Siemens SINUMERIK 828D Specifications

General

Control Type	CNC
Operating System	Windows Embedded
Processor	Intel Atom
Display	10.4" color TFT display
Interfaces	Ethernet, USB
Programming	ShopMill, ShopTurn
Operation Panel Size	10.4"
Protection Class	IP65
PLC Memory	2 MB
Spindle Capacity	4 spindles
Hard Drive	CompactFlash
