Siemens SINUMERIK 828D

Service cases - hardware
4.17 Hub Modules
Hardware and Software
202 Service Manual, 03/2011, 6FC5397-5DP40-0BA0
4.17.2 DMC20 connections
Connections
;
;
'5,9(&/L4
LQWHUIDFHV
;
(OHFWURQLFVSRZHU
VXSSO\
3URWHFWLYH
FRQGXFWRU
FRQQHFWLRQ
01P
/('
6KLHOGFRQQHFWLRQ
;
;
;
;
7\SHSODWH
'5,9(&/L4
LQWHUIDFHV

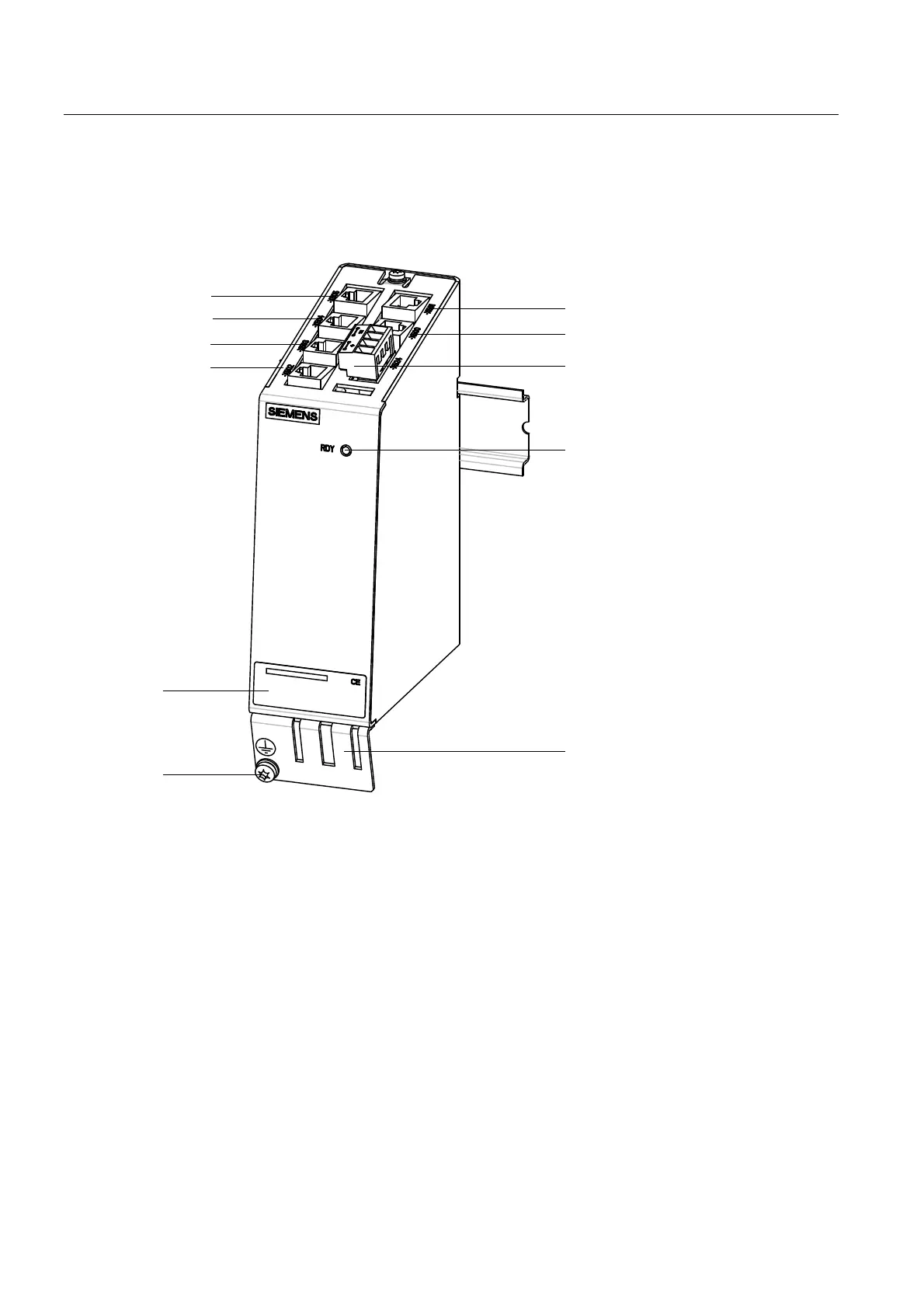

Figure 4-49 Connections DMC20
4.17.3 This is how you remove a DMC20
Overview
The activities that must be taken into account when replacing a DMC20 are subsequently
described.
If a DMC20 has a hardware defect, then it must be replaced by an identical module.
Preconditions:
● The module is defective and must be replaced.
● The control cabinet is in a no-voltage condition, all of the connectors and cables are
labeled.
