Siemens SINUMERIK 828D Service Manual

Service cases - hardware
4.17 Hub Modules
Hardware and Software
206 Service Manual, 03/2011, 6FC5397-5DP40-0BA0
4.17.6 This is how you mount a DME20
Mounting
Procedure:
1. Place the drilling pattern on the mounting surface.
The mounting surfaces must be bare metal.

 

RU0
0RXQWLQJVXUIDFH

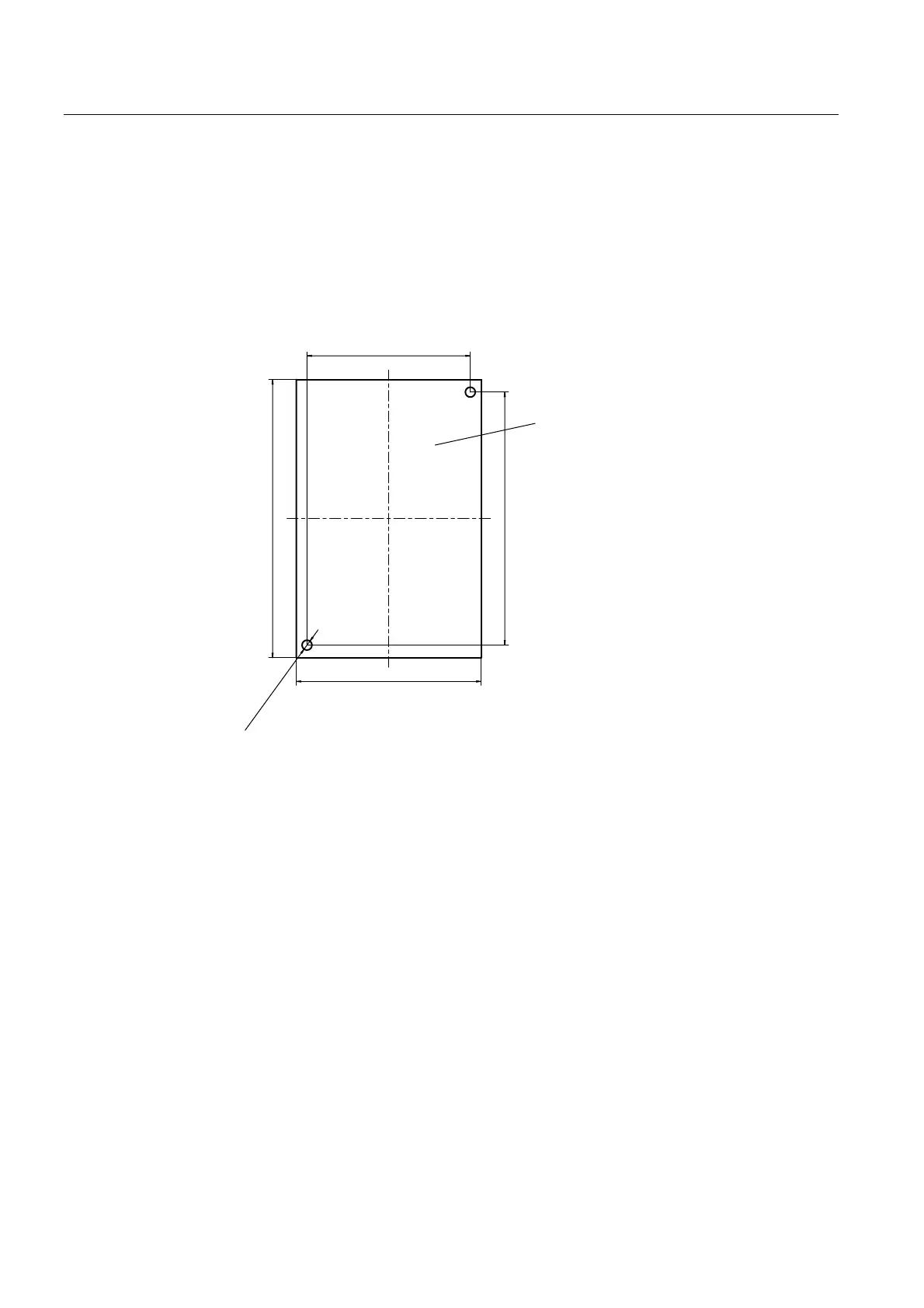

Figure 4-52 DME20 dimensions
2. Drill the holes with Ø5.3 or M5 threads.
3. Tighten the component with a tightening torque of 6.0 Nm.

Siemens SINUMERIK 828D Specifications

General

Control Type	CNC
Operating System	Windows Embedded
Processor	Intel Atom
Display	10.4" color TFT display
Interfaces	Ethernet, USB
Programming	ShopMill, ShopTurn
Operation Panel Size	10.4"
Protection Class	IP65
PLC Memory	2 MB
Spindle Capacity	4 spindles
Hard Drive	CompactFlash
