Siemens SINUMERIK 828D Service Manual

Service cases - hardware
4.5 I/O modules
Hardware and Software
Service Manual, 03/2011, 6FC5397-5DP40-0BA0
105
4.5.4 Status displays PP 72/48D 2/2A PN
LEDs for status display
The following LEDs on the I/O module provide information about the module state:

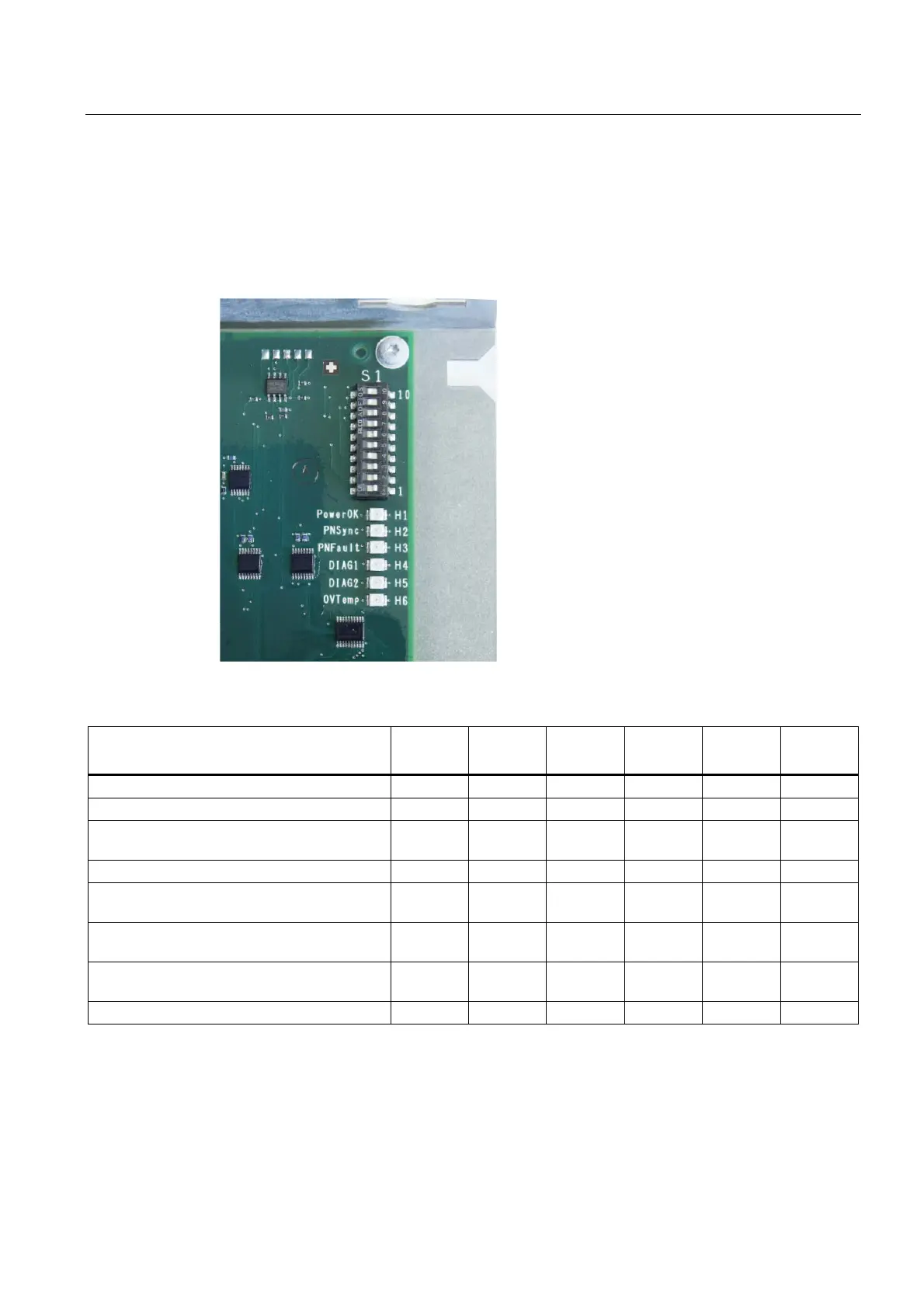

Figure 4-16 Switch S1 and LEDs H1 to H6
H1 (green)
PowerOK
H2 (green)
PN Sync
H3 (red)
PN Fault
H4 (green)
Diag1
H5 (green)
Diag2
H6
OVTemp
Power Off off off off off off off
Power On (voltage is stable) on off off off off off
Boot software runs and loads the system
software.
on on on on on off
System software runs on off off off off off
System software runs, no communication to
the controller.
on off off off off off
System software runs, communication to the
controller, STOP state
on on off off off off
System software runs, communication to the
controller, RUN state
on Flashes at
0.5 Hz
off off off off
Overtemperature alarm -- -- -- -- -- on

Siemens SINUMERIK 828D Specifications

General

Control Type	CNC
Operating System	Windows Embedded
Processor	Intel Atom
Display	10.4" color TFT display
Interfaces	Ethernet, USB
Programming	ShopMill, ShopTurn
Operation Panel Size	10.4"
Protection Class	IP65
PLC Memory	2 MB
Spindle Capacity	4 spindles
Hard Drive	CompactFlash
